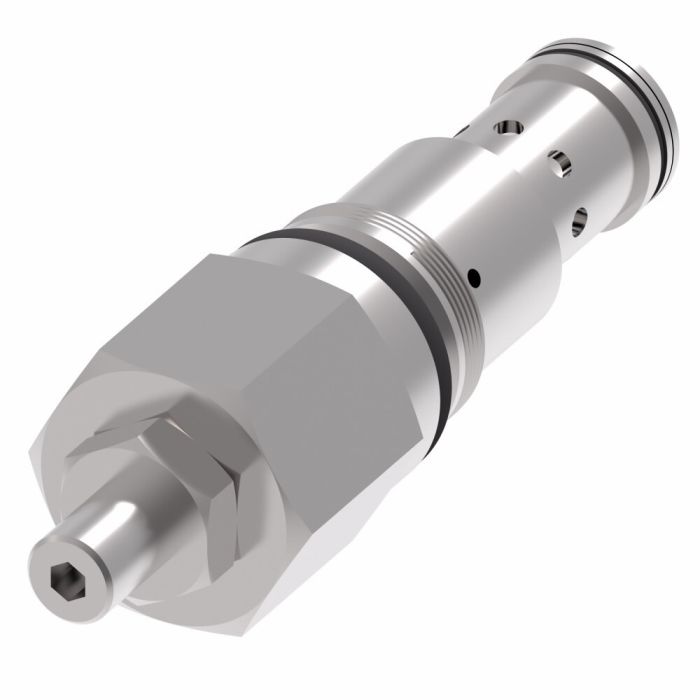

INT HYD1GR60P4S

Description & Features

Designed for versatility in demanding environments, the Vickers by Danfoss / Eaton 1GR60 Series Pressure Control Valves are ideal for use in harvesters, refuse haulers, and various mobile and industrial applications. Engineered to handle a maximum pressure of 350 bar (5000 psi) and a flow rate of up to 300 L/min (80 USgpm), these valves offer reliable performance in compact and economical designs.

The INT HYD1GR60P4S model ensures maximum flexibility with minimal space requirements, making it a preferred choice for systems requiring efficient pressure regulation. As a spool-style valve, it integrates seamlessly into hydraulic systems, providing consistent and precise pressure control under high load conditions.

SKU: 407AA00002A

Supplier Part Number (MPN): 407AA00002ASP

Specifications

Actuator Type Direct Acting	Adjustment Leak-Proof Screw	Body Material Aluminum	Dimensions 1 in W	Installation Type Screw-In Cartridge	Media Hydraulic Oil	Seal Material Buna-N	Series 1GR60 Series	Style Spool

Product Questions & Answers (1)

Question by: Cody G on Oct 19, 2025, 8:21 PM

Got a harvest machine that keeps spiking pressure past what the system can take. Would this 1GR60 valve hold up to that kind of work, and what's the max it can handle?

Answer by: Customer Support on Oct 21, 2025, 7:43 PM

Harvesters are actually one of the named applications for this valve, so it fits right in that world. On the pressure side, it's rated to 350 bar, which works out to 5000 psi. Flow capacity tops out at 300 liters per minute, or 80 US gallons per minute. For a machine dealing with pressure spikes under heavy load, that ceiling gives you solid headroom to work with.
