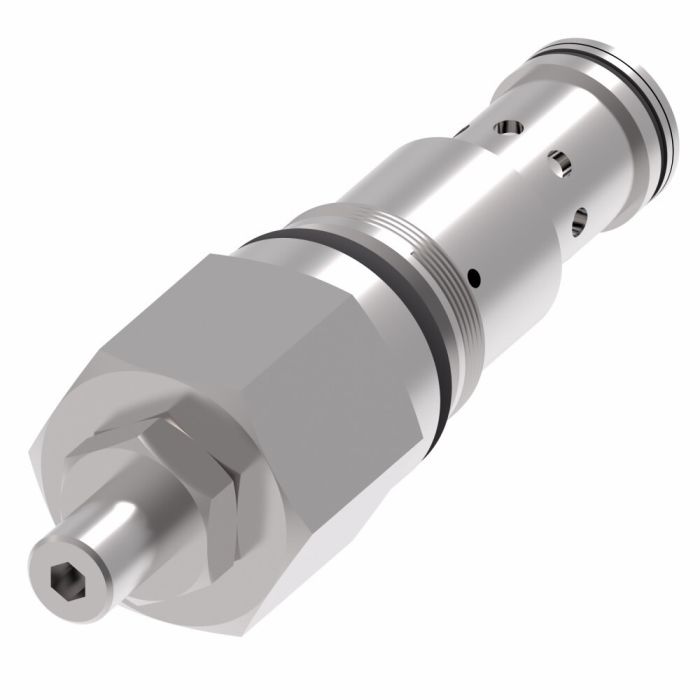

INT HYD1GR100P0.6S

Description & Features

Designed for demanding mobile and industrial environments, the Vickers 1GR100 Series pressure control valve handles flow rates up to 150 litres per minute with a rated pressure capacity of 350 bar (5,000 psi). The spool-style design keeps the unit compact, supporting installations where space is limited without compromising performance.

INT HYD1GR100P0.6S is well suited to harvesters, refuse haulers, and a wide range of mobile and industrial hydraulic circuits. Manufactured under the Vickers sub-brand by Danfoss Power Solutions, it belongs to the SICV pressure control valve category and reflects the reliability and flexibility expected from this product line. Confirm availability with the supplier prior to ordering for time-sensitive applications.

SKU: 407AA00005A

Supplier Part Number (MPN): 407AA00005ASP

Specifications

Actuator Type Direct Acting	Adjustment External Screw	Body Material Aluminum	Dimensions 4.36 in L x 1.122 in W x 1.122 in H	Installation Type Screw-In Cartridge	Media Hydraulic Oil	Number of Ports/Ways 2	Seal Material Buna-N	Series 1GR100 Series	Style Spool

Product Questions & Answers (1)

Question by: Harvey M on Oct 11, 2025, 9:46 AM

Got a couple harvesters running hydraulic circuits that need pressure control valves rated for serious duty. This 1GR100 Series handle up to 350 bar?

Answer by: Customer Support on Oct 12, 2025, 1:33 PM

Rated pressure capacity on this valve is 350 bar, which works out to 5,000 psi. Flow goes up to 150 litres per minute. Both harvesters and mobile equipment are explicitly listed applications for this series, so it fits right in with that kind of work.
