Description & Features

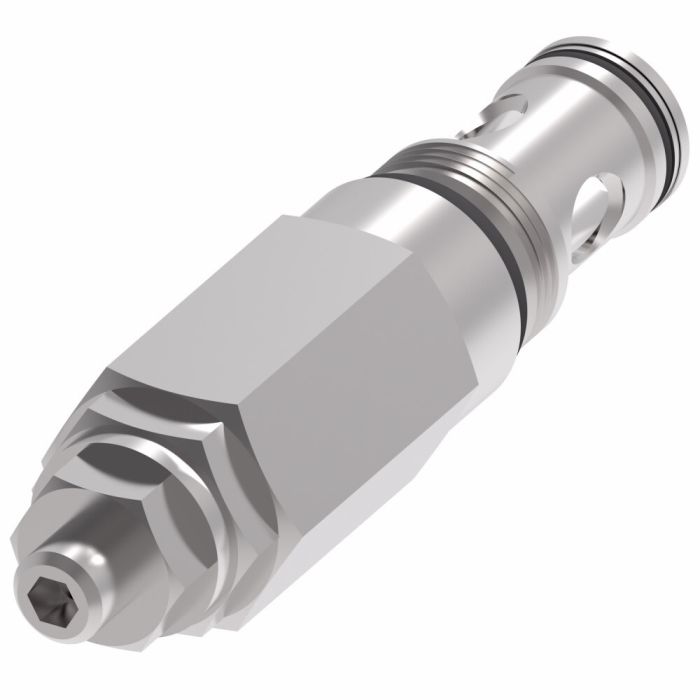

The Vickers 1LR300 Series Pressure Control Valves, part of the Danfoss Power Solutions line, are expertly designed for use in harvesters, refuse haulers, and other mobile and industrial applications. Offering a reliable and economical solution, these valves are compact yet provide maximum flexibility in limited spaces. With a robust pressure rating of up to 350 bar (5000 psi) and a high flow capacity of 380 liters per minute, these poppet style valves are an ideal choice for demanding environments.

Manufactured by Vickers, these valves are known for their durability and efficient performance. They can handle a flow rate of 300 liters per minute (80 USgpm), ensuring effective pressure control in various hydraulic systems. The INT HYD1LR300F35S is a testament to superior engineering, delivering consistent performance even under high-pressure conditions.

SKU: 407AA00008A

Supplier Part Number (MPN): 407AA00008ASP

Specifications

Actuator Type Direct Acting	Adjustment Screw	Body Material Aluminum	Dimensions 6.85 in L x 2.22 in W x 2.22 in H	Installation Type Screw-In Cartridge	Leakage Standard	Media Hydraulic Oil	Number of Ports/Ways 2	Seal Material Buna-N	Series 1LR300 Series	Style Poppet

Product Questions & Answers (1)

Question by: Melvin B on Apr 16, 2025, 8:48 PM

These valves rated for 5000 psi? Got a refuse hauler that runs pretty hard and need something that'll hold up without giving me grief.

Answer by: Customer Support on Apr 18, 2025, 4:36 PM

350 bar which works out to 5000 psi, and the flow capacity comes in at 380 liters per minute. The 1LR300 series is a poppet style design, so it holds pressure cleanly without a lot of bleed-off under load. Refuse haulers are actually one of the listed applications for this valve, so it fits right in that kind of duty.
