INT HYD1UPS100P20S

Description & Features

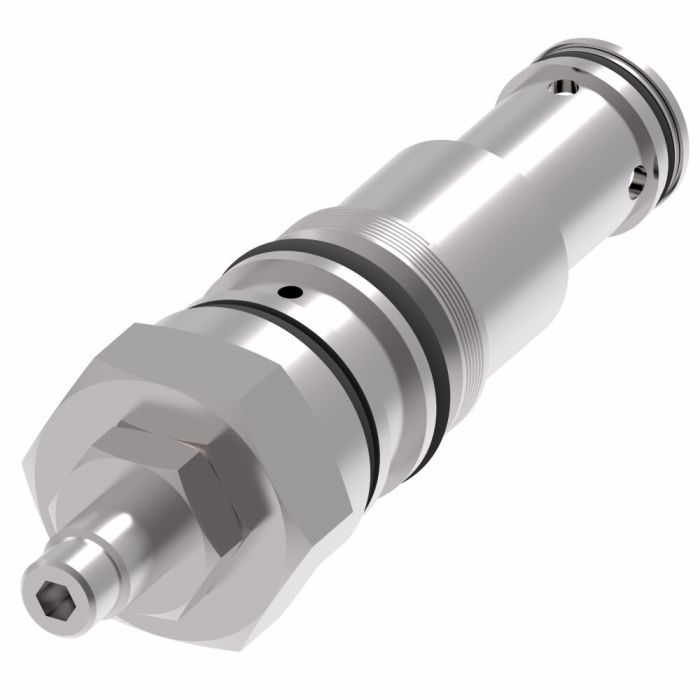

The Vickers by Danfoss / Eaton 1UPS100 Series Pressure Control Valves, INT HYD1UPS100P20S, are dependable and economical spool valves for pressure regulation.

Designed for mobile and industrial applications such as harvesters and refuse haulers, these valves offer maximum flexibility while occupying minimum space. They feature a 150 liter per minute flow rate, with pressure capabilities up to 350 bar (5000 psi) and 300 L/min (80 USgpm).

SKU: 407AA00028A

Supplier Part Number (MPN): 407AA00028ASP

Specifications

Adjustment Leak-Proof Screw	Cavity A880	Dimensions 4.76 in L x 1 in W x 1 in H	Installation Type Screw-In Cartridge	Number of Ports/Ways 3-Ports	Seal Material Buna-N	Series 1UPS100 Series	Style Spool

Product Questions & Answers (2)

Question by: Clint M on Mar 20, 2026, 1:44 PM

What kind of equipment is this valve actually built for? Got a harvester and a refuse hauler both needing pressure control work and trying to figure out if one part covers both.

Answer by: Customer Support on Mar 21, 2026, 2:10 PM

Harvesters and refuse haulers are both explicitly listed applications for this valve, so you're in luck on that front. It's a spool-style pressure control valve rated up to 350 bar (5000 psi) with a flow capacity of 300 L/min (80 USgpm), which puts it well within range for demanding mobile equipment. The 150 L/min flow rate is the rated working figure, and the higher 300 L/min ceiling gives you some headroom if your system spikes. One part covering both machines is a reasonable expectation here.

Question by: Steve M on Jul 10, 2025, 9:29 AM

What kind of applications is this pressure control valve best suited for?

Answer by: Customer Support on Jul 12, 2025, 6:58 AM

This Vickers/Danfoss 1UPS100 series valve is designed for use in mobile and industrial applications, with specific mention of harvesters and refuse haulers. It aims to provide flexibility while keeping space usage minimal.
