INT HYD1PA200P20S

Description & Features

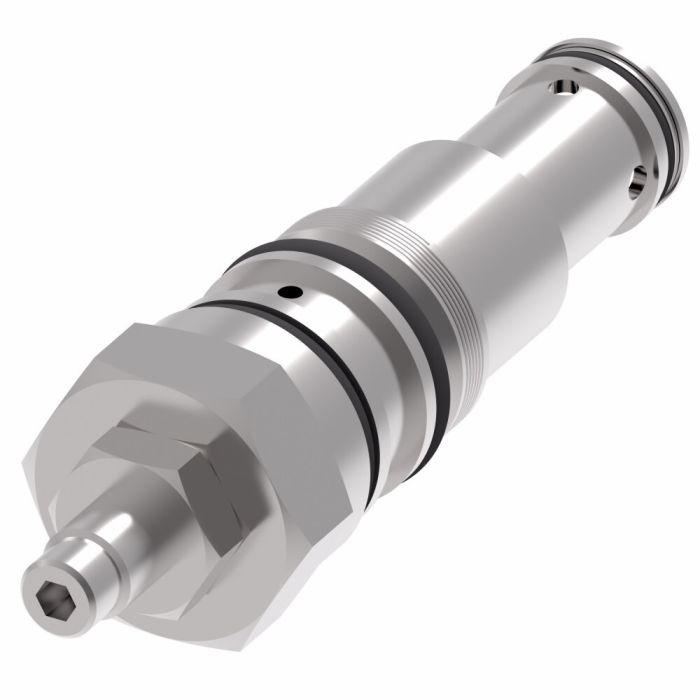

Designed for versatility and efficiency, the Vickers by Danfoss / Eaton 1PA200 Series Pressure Control Valves are ideally suited for demanding applications in harvesters, refuse haulers, and other mobile and industrial settings. With a robust pressure capacity of 350 bar (5000 psi) and a maximum flow rate of 300 L/min (80 USgpm), these valves ensure reliable performance even under extreme conditions. Their compact and economical design offers maximum flexibility while minimizing space requirements, making them a valuable component in hydraulic systems.

This spool-style valve is part of Danfoss Power Solutions, embodying a commitment to quality and innovation. It boasts a flow rate of 100 liters per minute, further enhancing its capability to manage hydraulic pressure effectively. The valve is crafted for long-lasting durability, ensuring it meets the rigorous demands of industrial applications.

SKU: 407AA00030A

Supplier Part Number (MPN): 407AA00030ASP

Specifications

Body Material Aluminum	Cavity A16102	Configuration Non-Relieving, Normally Open	Connection Type UNF	Dimensions 38.1 mm L x 38.1 mm W x 118.364 mm H	Number of Ports/Ways 3	Port 3 Drain Port Only (Non-Relieving)	Seal Material Buna-N/FKM	Series 1PA200 Series	Softgoods Material Buna-N/FKM	Style Spool

Product Questions & Answers (2)

Question by: Dwayne W on Apr 4, 2026, 2:18 PM

Running a refuse hauler and need a pressure control valve that can hold up to some serious flow. Does the 1PA200 series have the capacity to handle high-demand cycles without choking out?

Answer by: Customer Support on Apr 6, 2026, 6:57 AM

For refuse hauler work, the flow capacity on this valve is solid. It handles up to 300 liters per minute (80 USgpm) and is pressure-rated to 350 bar (5000 psi), so heavy-demand cycles are well within its range. The spool-style design keeps things consistent under load, and the compact build means you're not fighting for space in a tight equipment bay. It's a Vickers-branded unit under Danfoss Power Solutions, which has a long track record in exactly this kind of mobile application.

Question by: Shane W on Feb 27, 2026, 1:17 PM

Can this handle the pressures from a refuse truck compactor without failing?

Answer by: Customer Support on Mar 1, 2026, 6:46 AM

Designed to withstand up to 350 bar (5000 psi), this pressure control valve is well-suited for the demanding conditions found in refuse haulers and other heavy-duty applications.
