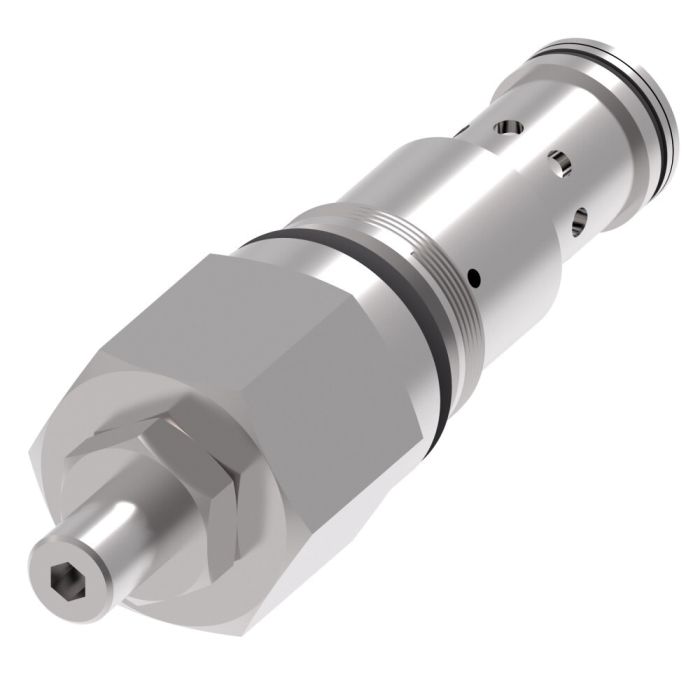

VICKERS-1AR100P35PYV-SP3100RELIEF CARTRI

Ask A Question

Description & Features

Designed for demanding mobile and industrial applications, the Vickers 1AR100P35PYV-SP3100 Relief Cartridge is a spool-style pressure control valve capable of handling up to 350 bar (5,000 psi) and flow rates up to 300 L/min (80 USgpm). Its compact form factor makes it well suited for installations where space is at a premium.

Part of the Vickers by Danfoss 1AR100 Series, this relief cartridge is built for versatility across a wide range of equipment types, including harvesters, refuse haulers, and general mobile and industrial hydraulic circuits. The spool-style design supports reliable, consistent pressure control while keeping the valve footprint minimal, a practical advantage in multi-function hydraulic assemblies.

SKU: 407AA00132A

Supplier Part Number (MPN): 407AA00132ASP

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Dimensions
4.36 in L x 1.12 in W x 1.12 in H
Domestic/Import
Import
Installation Type
Screw-In Cartridge
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Segment Code
A
Series
1AR100 Series
Style
Spool

Product Questions & Answers (1)

Question by: Cody B on Oct 30, 2025, 11:05 AM
Got a harvester that keeps blowing off pressure at the wrong point, would this 1AR100 cartridge be the right kind of valve to get that under control?
Answer by: Customer Support on Nov 1, 2025, 7:48 AM
For pressure relief on mobile equipment like harvesters, this is exactly the type of valve built for that job. The 1AR100 series uses a spool-style design, which gives you consistent, repeatable pressure control rather than the erratic behavior you sometimes get with worn or undersized valves. It handles up to 350 bar (5,000 psi) and flows up to 300 L/min (80 USgpm), so capacity shouldn't be a limiting factor on most harvester circuits. The compact footprint also helps when you're working with a crowded valve block and don't have a lot of room to maneuver.
