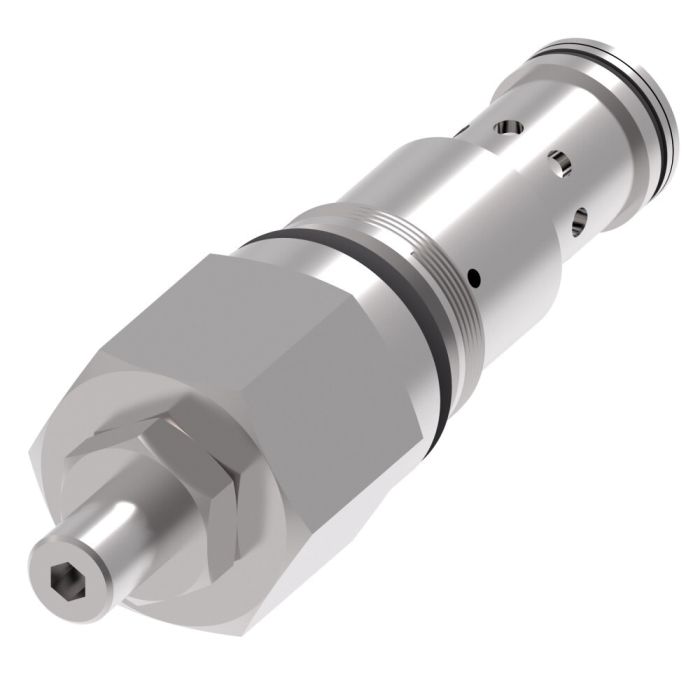

main product photo

VICKERS 1AR100P7S

Ask A Question

Description & Features

Designed for demanding mobile and industrial environments, the Vickers 1AR100P7S is a spool-style pressure control valve from the 1AR100 series, rated to 350 bar (5,000 psi) with a flow capacity of up to 300 L/min (80 USgpm). Its compact form factor makes it well suited for installations where space is limited without sacrificing performance.

Typical applications include harvesters, refuse haulers, and a broad range of mobile and industrial hydraulic systems. The spool configuration supports reliable pressure regulation across variable operating conditions, and the series is recognised for combining economic value with functional flexibility.

SKU: 407AA00137A

Supplier Part Number (MPN): 407AA00137ASP

Specifications

Actuator Type
Pilot Operated
Dimensions
4.36 in L x 1.12 in W x 1.12 in H
Domestic/Import
Import
Installation Type
Screw-In Cartridge
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Segment Code
A
Series
1AR100 Series
Style
Spool

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Frank M on Feb 19, 2026, 4:55 PM
flow rate on this one says 150 L/min in the specs but the description mentions 300 L/min and 80 USgpm, which number is actually right for this valve?
Answer by: Customer Support on Feb 21, 2026, 6:24 AM
The 300 L/min and 80 USgpm figures reflect the rated flow capacity for the 1AR100 series overall. The 150 L/min value listed in the attributes applies specifically to this configuration of the valve. If your system is running closer to the higher end of that range, you'd want to confirm which flow demand you're actually working with before assuming either number covers your setup.
