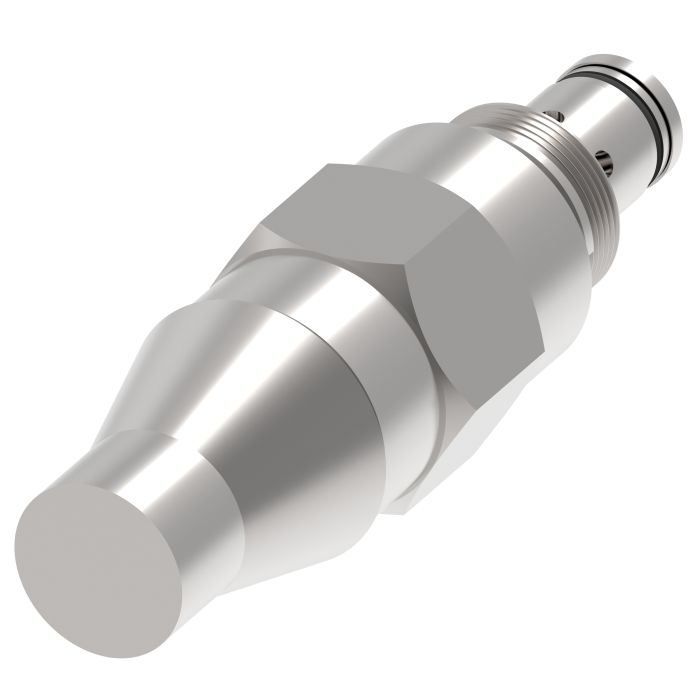

VICKERS 1DR30G10S-SP1450

Description & Features

The Vickers 1DR30G10S-SP1450 pressure control valve is designed for reliable pressure regulation in demanding mobile and industrial applications, including use in harvesters and refuse haulers. This poppet-style valve offers a maximum flow rate of 30 liters per minute and is rated to 350 bar (5000 psi).

The Vickers valve provides maximum flexibility in a compact size. It is known for reliable and economical performance.

SKU: 407AA00179A

Supplier Part Number (MPN): 407AA00179A

Specifications

Actuator Type Direct Acting	Adjustment Type Tamper-Proof Cap	Cavity A879	Dimensions 3.79 in L x 1 in W x 1 in H	Domestic/Import Import	Housing Without Housing	Installation Type Screw-In Cartridge	Number of Ports/Ways 2-Port	Port Type Cartridge	Seal Material Buna-N	Series 1DR30 Series	Style Poppet

Product Questions & Answers (2)

Question by: Hubert M on Jun 17, 2025, 8:43 AM

Running this on a refuse hauler and just want to make sure the pressure rating holds up, 5000 psi enough for that kind of work?

Answer by: Customer Support on Jun 19, 2025, 6:19 AM

For refuse hauler applications, 350 bar (5000 psi) is well within the operating range you'd expect from a valve in that service. This is one of the listed applications for the 1DR30G10S-SP1450, so it's not a stretch fit. The poppet-style design also holds up well under the kind of repeated pressure cycles those systems see, and the compact build makes it easier to package in tighter hydraulic circuits on mobile equipment.

Question by: Sheila B on Jun 15, 2025, 8:47 PM

Reckon this would hold up okay on a wood splitter?

Answer by: Customer Support on Jun 17, 2025, 9:43 AM

Designed for mobile and industrial applications, this Vickers pressure control valve is commonly found on equipment like harvesters and refuse haulers.
