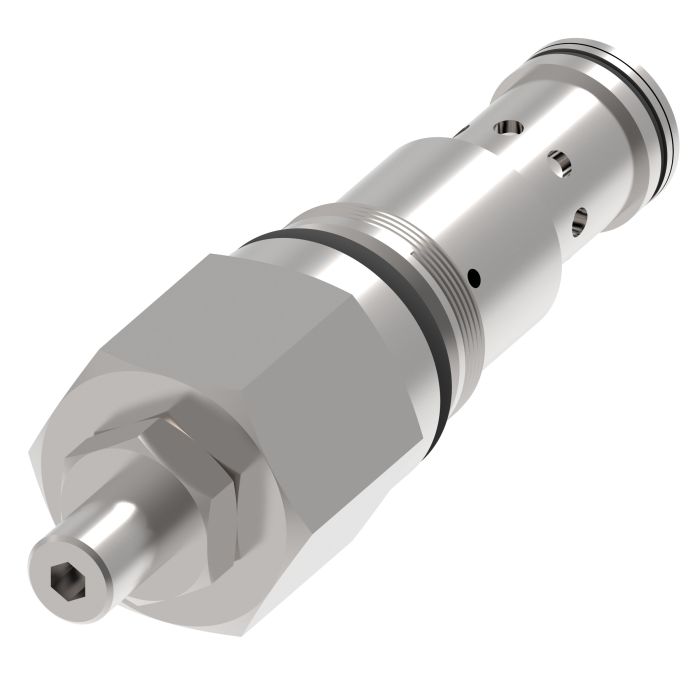

VICKERS 1GR30P16S

Description & Features

Vickers 1GR30P16S pressure control valves from Eaton/Danfoss are reliable, economical, and compact. These spool style valves provide maximum flexibility while requiring minimum space in mobile and industrial applications, including use on harvesters and refuse haulers.

This pressure control valve offers a 200 liter per minute flow rate with a 350 bar (5000 psi) capacity.

SKU: 407AA00235A

Supplier Part Number (MPN): 407AA00235ASP

Specifications

Actuator Type Direct Acting	Adjustment Leak-Proof Screw	Body Material Aluminum	Dimensions 4.36 in L x 1.122 in W x 1.122 in H	Installation Type Screw-In Cartridge	Media Hydraulic Oil	Number of Ports/Ways 2	Seal Material Buna-N	Series 1GR30 Series	Style Spool

Product Questions & Answers (1)

Question by: Denise S on Jan 26, 2026, 6:51 PM

running a refuse hauler and need something that won't take up a ton of space on the valve bank, does this vickers unit actually hold up at high pressure or is it more of a light duty thing?

Answer by: Customer Support on Jan 27, 2026, 9:44 PM

At 350 bar (5000 psi), this is not a light duty valve. That pressure rating puts it well within range for demanding mobile applications like refuse haulers, which is actually one of the specific uses it's built for. The spool style design keeps the footprint compact, so fitting it into a tight valve bank shouldn't be a problem. Flow capacity comes in at 200 liters per minute, so it can handle solid throughput without needing a bulkier unit.
