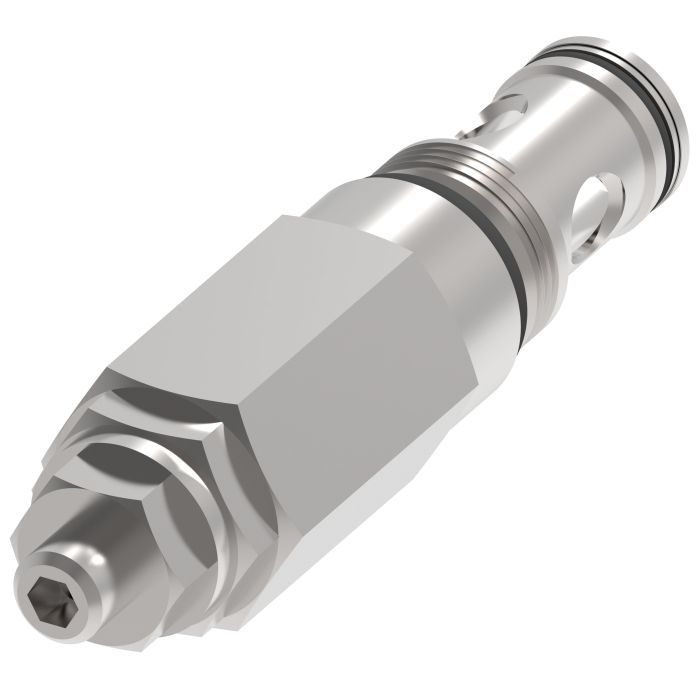

VICKERS 1LR300F35SV

Description & Features

Designed for demanding mobile and industrial applications, the Vickers 1LR300F35SV is a poppet-style pressure control valve rated for up to 350 bar (5,000 psi) with a flow capacity of 380 litres per minute. Its compact form factor makes it well suited for installations where space is limited without sacrificing performance at high pressures or flow rates.

Part of the Vickers by Danfoss 1LR300 series, this valve is commonly deployed in harvesters, refuse haulers, and a broad range of mobile and stationary hydraulic systems. The poppet construction contributes to reliable, leak-resistant seating, and the valve's design supports maximum installation flexibility across varied equipment configurations.

SKU: 407AA00271A

Supplier Part Number (MPN): 407AA00271ASP

Specifications

Actuator Type Direct Acting	Adjustment Screw	Body Material Aluminum	Dimensions 6.85 in L x 2.22 in W x 2.22 in H	Installation Type Screw-In Cartridge	Leakage Standard	Media Hydraulic Oil	Number of Ports/Ways 2	Seal Material FKM	Series 1LR300 Series	Style Poppet

Product Questions & Answers (1)

Question by: Rusty P on Jun 14, 2025, 10:47 AM

Got a harvester sitting idle cause the pressure control valve gave out, does this Vickers 1LR300 handle the pressure range you'd need for that kind of equipment?

Answer by: Customer Support on Jun 16, 2025, 6:35 AM

Harvesters are actually one of the listed applications for this valve, so you're in the right place. It's rated up to 350 bar, which works out to 5,000 psi, and it moves up to 380 litres per minute. That's a solid performance range for the kind of hydraulic demands a harvester puts on a pressure control valve. The poppet-style construction also helps with leak-resistant seating, which matters when you're running hard in the field.
