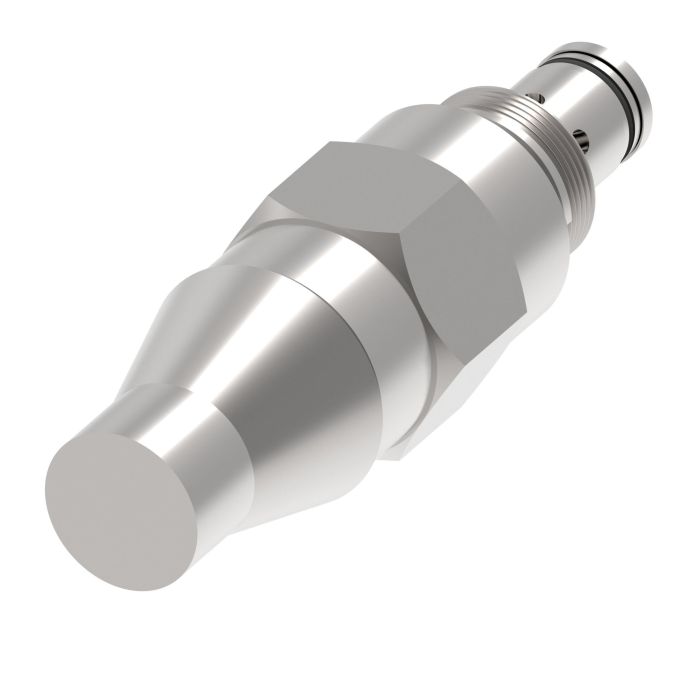

Vickers 1DR30-P-20S SET @1200 PSI

Description & Features

This Vickers 1DR30-P-20S SET @1200 PSI pressure control valve is part of the Vickers by Danfoss / Eaton 1DR30 Series known for reliability and flexibility in a compact form factor. Designed with a poppet style, this valve offers a maximum pressure of 350 bar (5000 psi) and a flow rate of 30 liters per minute (8 USgpm).

This pressure control valve is suitable for use in mobile and industrial applications, including harvesters and refuse haulers.

SKU: 407AA00937A

Supplier Part Number (MPN): 407AA00937A

Alternate Part Numbers: 1DR30-P-20S SET @1200 PSI

Specifications

Actuator Type Direct Acting	Adjustment Type Leak-Proof Screw	Cavity A879	Dimensions 3.79 in L x 1 in W x 1 in H	Domestic/Import Import	Housing Without Housing	Installation Type Screw-In Cartridge	Number of Ports/Ways 2-Port	Port Type Cartridge	Seal Material Buna-N	Series 1DR30 Series	Style Poppet

Product Questions & Answers (1)

Question by: Jerry C on Apr 24, 2025, 8:51 PM

what's the pressure this valve comes set at from the factory, and what's the max it can handle if I need to adjust it up later?

Answer by: Customer Support on Apr 26, 2025, 12:20 PM

Comes preset at 1200 PSI straight out of the box. The valve itself is rated up to 5000 PSI (350 bar), so there's a fair amount of headroom if your system ends up needing a higher setting down the road.
