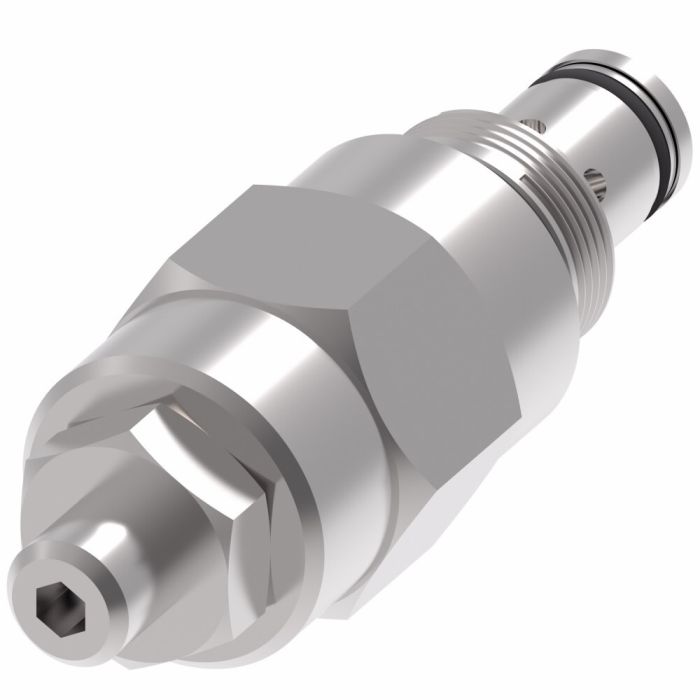

VICKERS-1DR2-P-20S-SP2800 ** R / A **

Ask A Question

Description & Features

Designed for demanding mobile and industrial environments, the Vickers 1DR2-P-20S-SP2800 is a poppet-style pressure control valve rated for up to 350 bar (5,000 psi) and flow rates up to 300 L/min (80 USgpm). Its compact form factor supports installations where space is limited, while the poppet construction provides reliable, repeatable pressure regulation across a wide range of duty cycles.

This valve is well-suited to mobile equipment including harvesters and refuse haulers, as well as stationary industrial hydraulic circuits. The 1DR2 Series is recognized for combining economical construction with flexible mounting options, making it a practical choice where consistent pressure control is required without oversizing the installation footprint. Flow rate for this specific configuration is 1.2 litres per minute.

SKU: 407AA02233A

Supplier Part Number (MPN): 407AA02233A

Specifications

Alternate Part Numbers
Alternate Part Number MINO-00900X14035
Application
Harvesters, refuse haulers, mobile and industrial applications
Brand
Danfoss – Hydraulics
Brand
Vickers
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 300 L/min (80 USgpm)|Reliable, economical and compact|Maximum flexibility and minimum space
Flow Rate1
1.2 litre per minute
ICC
SICV Pressure Control Valves
Language
English
Port Size
None
Product Width
1
Style
Poppet
Sub Brand
Vickers
Supplier Part Number
407AA02233A
Product Weight
0.30 lbs

Product Questions & Answers (2)

Question by: Travis S on Mar 23, 2026, 4:35 PM
Reckon this here valve would hold up okay on a mobile harvester, out in the sun and dust all day?
Answer by: Customer Support on Mar 25, 2026, 10:32 AM
For mobile equipment like harvesters, this pressure control valve is definitely suitable. It's designed to withstand demanding environments, so the heat and dust shouldn't be an issue.
Question by: Jerry B on Jan 14, 2026, 8:32 PM
Got a harvester that keeps spiking pressure and I been through two valves already, would this poppet-style unit hold up better for that kind of repeated cycling?
Answer by: Customer Support on Jan 16, 2026, 6:48 AM
Poppet construction handles repeated pressure cycles better than spool-type valves in a lot of duty situations, and this one is rated up to 350 bar (5,000 psi) with flow capacity up to 300 L/min (80 USgpm). For harvester applications specifically, the 1DR2 Series was built with exactly that kind of mobile equipment use in mind. The repeatable pressure regulation is one of the main reasons it gets spec'd for high-cycle environments where consistent control matters more than just raw pressure rating.
