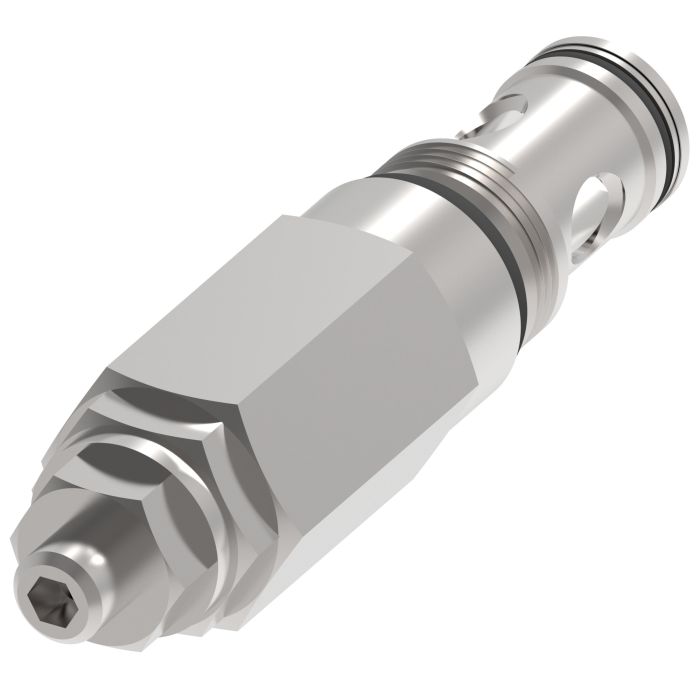

main product photo

VICKERS-1CLLR100F35S-B9W-SP4700

Ask A Question

Description & Features

Designed for demanding mobile and industrial applications, the Vickers 1CLLR100F35S-B9W-SP4700 is a poppet-style pressure control valve rated to 350 bar (5,000 psi) with a flow capacity of up to 300 L/min (80 USgpm). The 1CLLR100 series is engineered for compact installation where space is limited, offering maximum flexibility without requiring extensive mounting provisions.

Suited for use in harvesters, refuse haulers, and a broad range of mobile and industrial hydraulic circuits, these valves are built for reliable, economical service. The poppet construction supports consistent pressure regulation, and the compact form factor makes integration straightforward in tight assemblies. This unit carries a rated flow of 150 litres per minute and is part of the Vickers by Danfoss/Eaton SICV pressure control valve line.

SKU: 407AA03238A

Supplier Part Number (MPN): 407AA03238ASP

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting
Dimensions
4.14 in L x 1 in W x 1 in H
Installation Type
Screw-In Cartridge
Number of Ports/Ways
2-Port
Port Type
Cartridge
Seal Material
Buna-N
Series
1CLLR100 Series
Style
Poppet

Product Questions & Answers (2)

Question by: Eddie M on Aug 23, 2025, 2:38 PM
flow capacity on this valve says 300 L/min but then it also lists 150 litres per minute somewhere else -- which one actually applies to this unit?
Answer by: Customer Support on Aug 25, 2025, 8:43 AM
Good catch, and it's worth clearing up. The 300 L/min (80 USgpm) figure reflects the maximum rated flow capacity for the 1CLLR100 series overall. The 150 litres per minute figure is the rated flow specific to this particular unit, the 1CLLR100F35S-B9W-SP4700. So when you're sizing this valve into your circuit, plan around 150 L/min for this configuration.
Question by: Bobby W on Jun 5, 2025, 11:06 AM
If I'm replacing an existing valve, what's the physical size of this one? I'm cramped for space.
Answer by: Customer Support on Jun 7, 2025, 6:26 AM
Compact installation is a key feature. The product width is listed as 1 inch, and it's designed for situations where space is at a premium. It offers flexibility without needing a lot of extra mounting.
