AEROQUIP FITTING

Description & Features

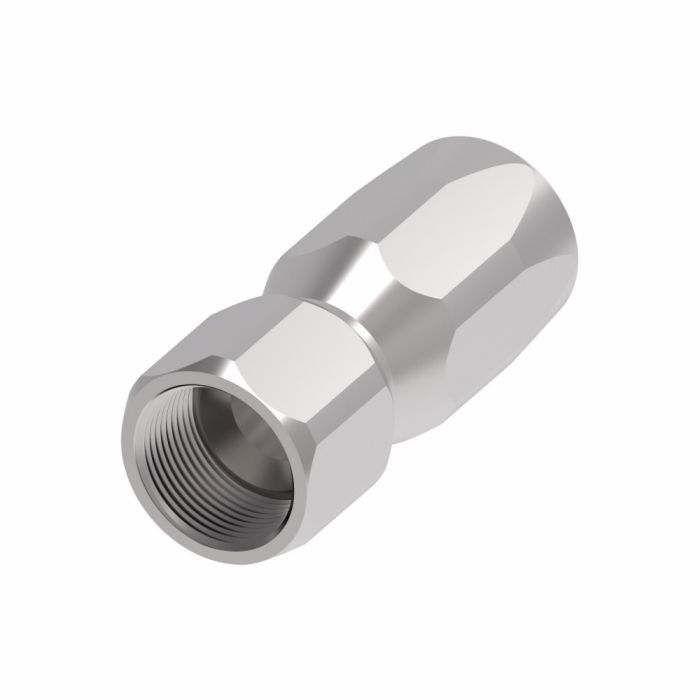

Part of the Eaton Aeroquip 411 Series, this carbon steel fitting is designed for reusable hose assembly applications requiring a reliable SAE 37° JIC swivel connection. The female SAE 37° end pairs with a -12 hose dash size, making it well-suited for hydraulic lines where a secure, leak-resistant swivel joint is needed. With a hex size of 1.25 and a package weight of 0.8 lb, this is a compact, field-proven fitting built for repeated use across a wide range of hydraulic system configurations.

The 411 Series is recognized for its ability to reduce assembly time without sacrificing connection integrity. Carbon steel construction provides the durability expected in demanding industrial hydraulic environments, and the reusable design supports efficient maintenance and line rebuilding.

SKU: 411-16-12S

Supplier Part Number (MPN): 411-16-12S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3-1/4 in	Compatible Hose ID 3/4 in	Connection Size 1 1 in	Connection Size 2 3/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 2.85 in	Dimensions 0.61 in ID	End Connection Torque 108 to 113 lb-ft	End Gender 1 Female	End Size 1 16	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With 302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses	Hex Size 1-1/2 x 1-1/4 in	Hose Dash Size 12	Inside Diameter 0.61 in	Material Steel	Material Construction Carbon Steel	Series 411 Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/16-12	Thread Type UN

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hose Dash Size
411-16S Steel Reusable JIC Fitting	1 in	1 in	16
411-8S Steel Reusable JIC Fitting	1/2 in	1/2 in	08
411-10S Steel Reusable JIC Fitting	5/8 in	5/8 in	10
411-20S Steel Reusable JIC Fitting	1-1/4 in	1-1/4 in	20
411-4S Steel Reusable JIC Fitting	1/4 in	1/4 in	04
411-24S Steel Reusable JIC Fitting	1-1/2 in	1-1/2 in	24
411-32S Steel Reusable JIC Fitting	2 in	2-1/2 in	32
411-6S Steel Reusable JIC Fitting	3/8 in	3/8 in	06
411-5S	5/16 in	5/16 in	05
411-6-4S	1/4 in	3/8 in	04
411-12S	3/4 in	3/4 in	12

Product Questions & Answers (3)

Question by: Dean P on Jan 19, 2026, 1:45 PM

fitting says reusable, does that mean I can pull it off a busted hose and put it back on a new one, or is that more of a one-time deal?

Answer by: Customer Support on Jan 20, 2026, 5:28 PM

Reusable means exactly what it sounds like. You can disassemble it from a worn or damaged hose and reassemble it onto a new one without needing a crimp machine or special tooling. That's the whole point of the 411 Series, it's built for field use where you need to rebuild a line without a lot of downtime. Carbon steel construction holds up through multiple uses, so it's a practical choice when you're maintaining hydraulic systems regularly.

Question by: Dwayne T on Nov 19, 2025, 6:35 PM

Reckon this fitting would work alright for replacing a leaky connector on my tractor's hydraulic line? It's got that same SAE 37° angle.

Answer by: Customer Support on Nov 21, 2025, 8:48 AM

Being part of the Eaton Aeroquip 411 series, this carbon steel fitting is indeed designed for reusable hose assembly applications needing a reliable SAE 37° JIC swivel connection, just like on many tractors.

Question by: Dwight G on Aug 28, 2025, 6:44 AM

got a -12 hose and need a female JIC swivel, is this the right fitting or am I mixin stuff up

Answer by: Customer Support on Aug 29, 2025, 5:14 PM

For a reusable hose assembly that needs an SAE 37 degree JIC female swivel connection on a -12 hose dash size, this 411 Series fitting is the right match. It is a carbon steel fitting assembly meant for that style of hydraulic line hookup.
