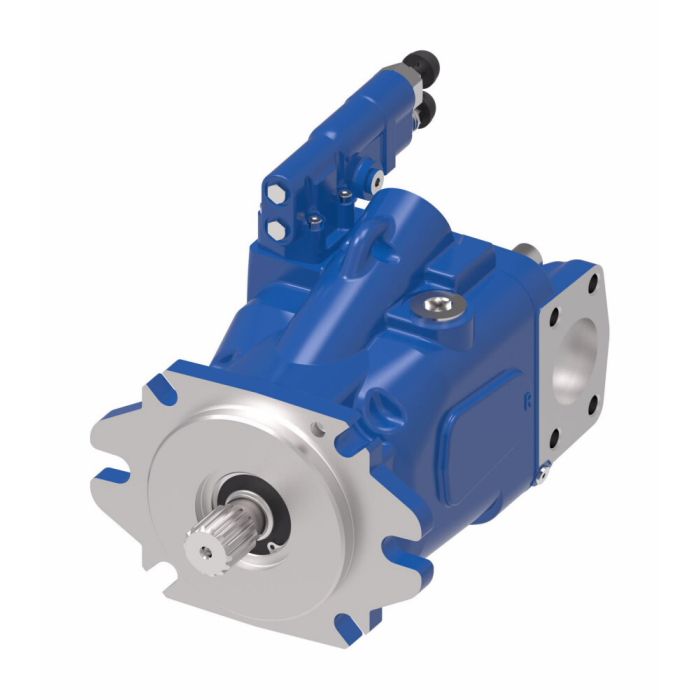

main product photo

420 Mobile Piston Pump, 3.80 cu in/rev, 2/4-Bolt SAE C Mounting Flange, 14T SAE C Splined Shaft, Pressure Compensated Load Sense

Ask A Question

Description & Features

This 420 Mobile Piston Pump from Eaton Vickers features pressure compensated load sense control. It offers high pressure and flow capacity, along with the fastest response and recovery times in the market. Advanced control options increase efficiency.

This open circuit piston pump is designed for loader backhoes, agriculture tractors, mining machinery, railroad equipment, and other mobile equipment applications. The 3.80 cu in/rev pump has a 2/4-Bolt SAE C mounting flange and a 14T SAE C splined shaft. The exterior is finished with a blue primer per Spec 209-13Cd.

SKU: 421AK01677B

Supplier Part Number (MPN): 421AK01677B

Alternate Part Numbers: C1LX36

Specifications

Application
Loader backhoes, Vibratory cable plows, Mining machinery, Dump truck lifts, Agriculture tractors, Chemical applicator trucks, Railroad equipment, Container handling, all terrain and truck cranes, Vibratory cable plows, Mining machinery and tunnel boring equipment, Utility boom, off road dump and refuse trucks, Material handling trucks and rough terrain fork lifts, Concrete and asphalt pavers, Feller/bunchers, forwarders and log loaders, Crawler dozers, Articulate haulers, Mini excavators
Color
Blue Primer Per Spec 209-13Cd
Control
Pressure Compensated Load Sense
Design Code
Second
Displacement
3.80
Displacement
3.8
Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Char-Lynn
Pack Size
1.00
UOM
EA
Features
Fastest response and recovery times in the market|Increase efficiency with advanced control options|High pressure and flow capacity
Identification
Mark Eaton Product Number and Full Model Code On Label
Maximum Operating Pressure
4060
Mount
2/4-Bolt SAE C
Mount
2/4-Bolt SAE C
Pressure Rating
4060
Rated Flow
29.60
Rated Flow
29.6
Series
420 Series Open Circuit Piston Pump
Shaft
14T SAE C Splined
Shaft
14T SAE C Splined
Supplier Part Number
421AK01677B
Alternate Part Numbers
Alternate Part Number C1LX36, Alternate Part Number MINO-00569X96009
Product Weight
55.10 lbs

Related Documents

Similar Products

Model Number Part Number Displacement Pressure Rating Control Shaft Features Price Action
420 Mobile Piston Pump, 3.80 cu in/rev, 2-Bolt SAE BB Mounting Flange, 15T Splined Shaft, Pressure Compensated Load Sense

ADU062R08AB10A25350000100100CD0B 420 Mobile Piston Pump

421AK01292B

3.8

4060

Pressure Compensated Load Sense

15T Splined

Fastest response and recovery times in the market|Increase efficiency with advanced control options|High pressure and flow capacity

420 Mobile Piston Pump, 2.50 cu in/rev, 2-Bolt SAE B Mounting Flange, 13T SAE B Splined Shaft, Pressure Compensated Load Sense

ADU041R05AA10A28140000200100CD0B 420 Mobile Piston Pump

421AK00694B

2.5

4060

Pressure Compensated Load Sense

13T SAE B Splined

Fastest response and recovery times in the market|Increase efficiency with advanced control options|High pressure and flow capacity

420 Mobile Piston Pump, 3.80 cu in/rev, 2/4-Bolt SAE C Mounting Flange, 14T SAE C Splined Shaft, Pressure Compensated Load Sense

ADU062R32AB10A35170000100500CD0B 420 Mobile Piston Pump

421AK01677B

3.8

4060

Pressure Compensated Load Sense

14T SAE C Splined

Fastest response and recovery times in the market|Increase efficiency with advanced control options|High pressure and flow capacity

420 Mobile Piston Pump, 3.80 cu in/rev, 2-Bolt SAE BB Mounting Flange, 15T Splined Shaft, Pressure Compensated Load Sense

ADU062R08AB10A32360000100100CD0B 420 Mobile Piston Pump

421AK01670B

3.8

4060

Pressure Compensated Load Sense

15T Splined

Fastest response and recovery times in the market|Increase efficiency with advanced control options|High pressure and flow capacity

Product Questions & Answers (1)

Question by: Lynn H on Sep 19, 2025, 10:22 AM
Running a 3.80 displacement on a loader backhoe setup, what's the max pressure this pump can handle before things start going sideways?
Answer by: Customer Support on Sep 20, 2025, 8:21 PM
Rated up to 4060 psi maximum operating pressure, so it's got solid headroom for loader backhoe work. The pressure compensated load sense control helps manage demand efficiently, meaning the pump isn't constantly running at peak pressure unless the system actually needs it. That combination keeps things running smoother and reduces unnecessary stress on the rotating group over time.
