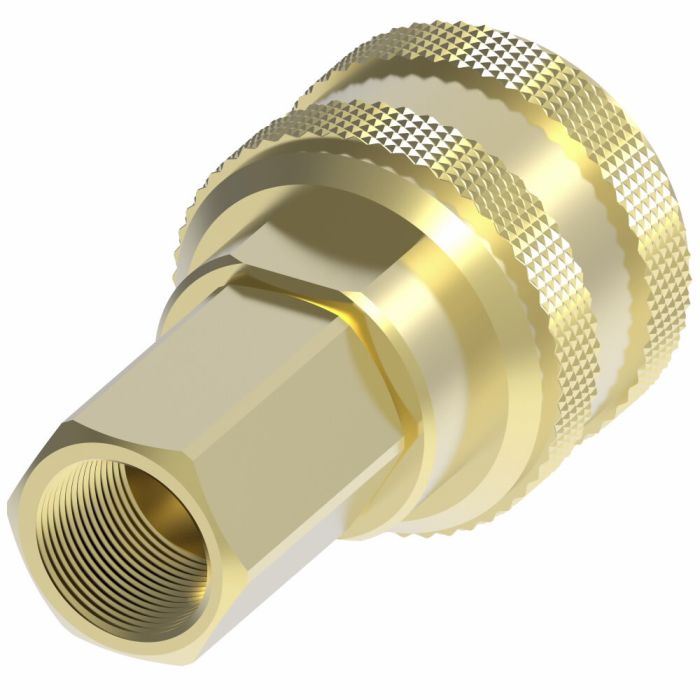

Danfoss / Eaton CPLIN, AIR FemalePipe

Ask A Question

Description & Features

This Danfoss / Eaton CPLIN, AIR FemalePipe is a female half quick disconnect coupling socket from the Hansen 4000 Series. Constructed of brass with Buna-N seals, it features a push-to-connect end type and 3/8 NPTF end connection.

The coupling is suitable for industrial breathing air, general pneumatics, maintenance and repair, and fluid transfer applications. It complies with US Industrial Interchange, ISO 6150 Series B, and A-A-59439 standards. This 2-way valve utilizes a ball lock internal connection type for quick connect and disconnect, eliminating the need for special tools. It can handle a flow rate of 336.56 gallons per minute and withstands minimum working temperatures of -40 degrees.

SKU: 4200

Supplier Part Number (MPN): 4200

Specifications

Brand
Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Style
Manual
Connection Type
FNPT, Push-Fit
Connection Type 1
Female Push-to-Connect
Connection Type 2
Female NPTF
Dimensions
2.35 in L x 1.38 in W x 1.38 in H
Finish
Nickel-Plated
Fitting Type
Coupling
Fluid Compatibility
Compressed Air, Gases and Liquids
For Use With
Compressed Air, Gases and Liquids
Hex Size
7/8 in
Latch Type
Push/Pull
Material
Brass
Material Construction
Brass
Maximum Operating Pressure
1000 psi
Operating Temperature
-40 to 250 deg F
Safety Locking Mechanism
Pin Lock
Seal Material
NBR
Series
4000 Series
Thread Size
3/8-18
Valve Type
2-Way

Product Questions & Answers (1)

Question by: Hugh H on May 25, 2025, 4:50 PM
Is this here fitting gonna work alright for hooking up to my shop air?
Answer by: Customer Support on May 26, 2025, 8:26 PM
This female pipe coupling is designed for general pneumatics applications, so it should work fine with standard shop air.
