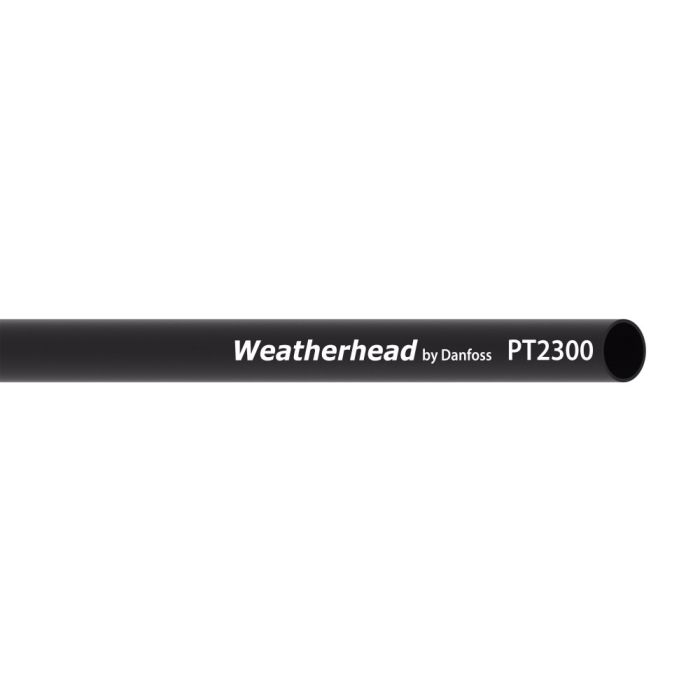

Danfoss / Eaton Nylon Tubing Black Thin WA

Description & Features

Constructed from extruded nylon with a vinyl nitrile cover, this Dash -6 tubing is well-suited for low-pressure hydraulic circuits, pneumatic systems, and chemical transfer service. The black vinyl nitrile cover provides UV resistance and durability across a broad temperature range, with a rated minimum working temperature of -40°F. A minimum bend radius of 1.13 inches supports routing in space-constrained installations.

The Danfoss / Eaton Nylon Tubing Black Thin WA belongs to the Synflex 4212 Series, a line covering a wide range of specialty tubing configurations. Nylon reinforcement throughout the construction supports consistent performance under the mechanical demands of industrial pneumatic and fluid transfer applications. Ink jet lay line marking aids identification during installation and maintenance.

SKU: 4212-65003

Supplier Part Number (MPN): 4212-65003

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015X06415	Application Low pressure hydraulic, chemical transfer service, pneumatic systems.	Color Black	Construction Extruded	Cover Material Vinyl Nitrile	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features UV resistance last longer than all competitors\|Hundreds of styles to choose from\|Rugged enough to stand up to the toughest applications	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 1.13	Minimum Bend Radius 1.13	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.38	Reinforcement Material Nylon	Sub Brand Synflex	Supplier Part Number 4212-65003	Tube Material Nylon	Product Weight 0.07 lbs

Product Questions & Answers (1)

Question by: Melvin A on Apr 30, 2025, 1:18 PM

got a low pressure hydraulic line i’m redoing, is this 4212 series nylon tubing meant for that kind of job?

Answer by: Customer Support on May 1, 2025, 3:37 PM

For low pressure hydraulic service, this tubing is a fit. The listed applications also include chemical transfer service and pneumatic systems, so it’s aimed at lighter duty fluid and air handling rather than high pressure hose work.
