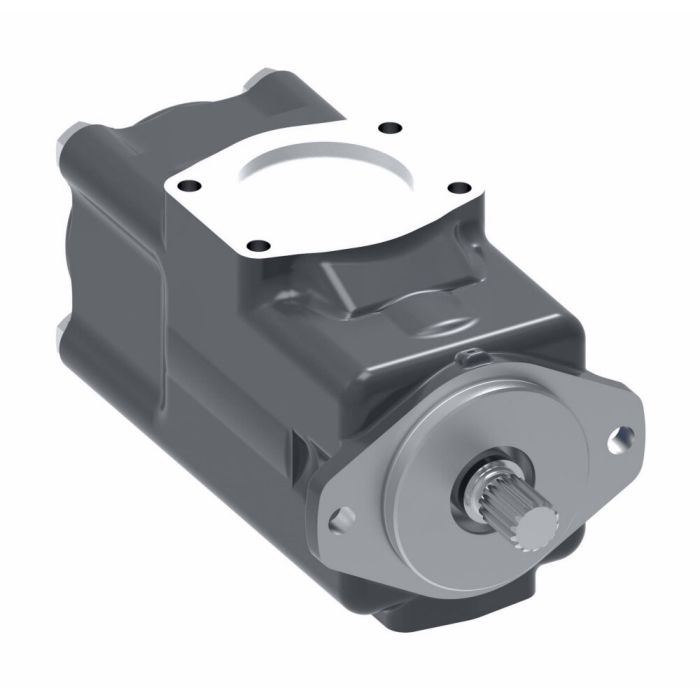

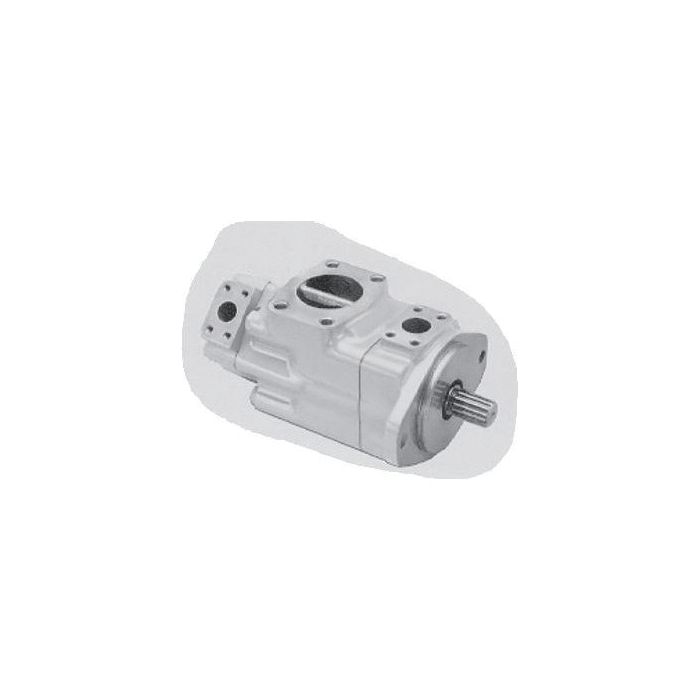

3525VQ35A21-11CC20L VICK

Ask A Question

Description & Features

Crafted with precision, the 3525VQ35A21-11CC20L VICK is a robust hydraulic vane pump designed for demanding industrial applications like plastics machinery, die casting, and marine environments. Built from durable cast iron, this pump is engineered to deliver outstanding volumetric efficiency, ensuring reliable performance in high-pressure and high-speed scenarios.

With a flow rate of 234.74 liters per minute, it seamlessly integrates into systems requiring efficient fluid management. The pump features Buna-N seals for enhanced durability and leakage prevention. As part of the Vickers by Danfoss/Eaton VQ(H) Series, it stands out for its extended operating life, making it an ideal choice for machine tools, primary metal processing, pulp & paper, and more.

SKU: 421617-7

Supplier Part Number (MPN): 421617-7

Alternate Part Numbers: C1BP84

Specifications

Brand
Vickers by Danfoss
Cartridge Type
Intra-Vane
Design Code
20
Dimensions
13.88 in L x 8.38 in W x 6.405 in H
Displacement
112.8 cc/rev Shaft, 67.7 cc/rev Cover
Drive Shaft Type
Splined
Flow Rate
35 gpm Shaft, 21 gpm Cover
Housing Material
Iron
Inlet Type
SAE 4-Bolt Flange
Maximum Operating Pressure
3000 psi
Mounting Type
Flange
Number of Stages
2
Outlet Position From Cover Wrt Inlet
O1-in-Line O2-45 CW
Outlet Type
SAE 4-Bolt Flange
Port Connections
I, 01, 02 SAE 4-Bolt Flange
Pump Type
Vane Pump Flex Plate, Quiet
Rotation Direction
Counterclockwise
Seal Material
Nitrile
Series
3525VQ Series
Speed Rating
2400 rpm, 2500 rpm

Product Questions & Answers (2)

Question by: Merle Y on Jun 27, 2025, 3:07 PM
reckon this would be alright for running a hydraulic press machine all day long?
Answer by: Customer Support on Jun 29, 2025, 11:20 AM
Designed for demanding industrial applications, the 3525VQ35A21-11CC20L VICK is well-suited for continuous operation in environments like press machines.
Question by: Frank H on Apr 30, 2025, 7:05 AM
Got a plastics machine that runs pretty much all day long, flow demand's up around 230 liters per minute. This pump rated for that kind of output?
Answer by: Customer Support on May 2, 2025, 6:19 AM
Running near that flow rate is exactly what this unit is built for. The rated flow comes in at 234.74 liters per minute, so a system pulling around 230 continuously is well within range. The cast iron construction and the high-pressure, high-speed design of the VQ series hold up under sustained load, which makes it a reasonable fit for continuous-duty plastics machinery applications.
