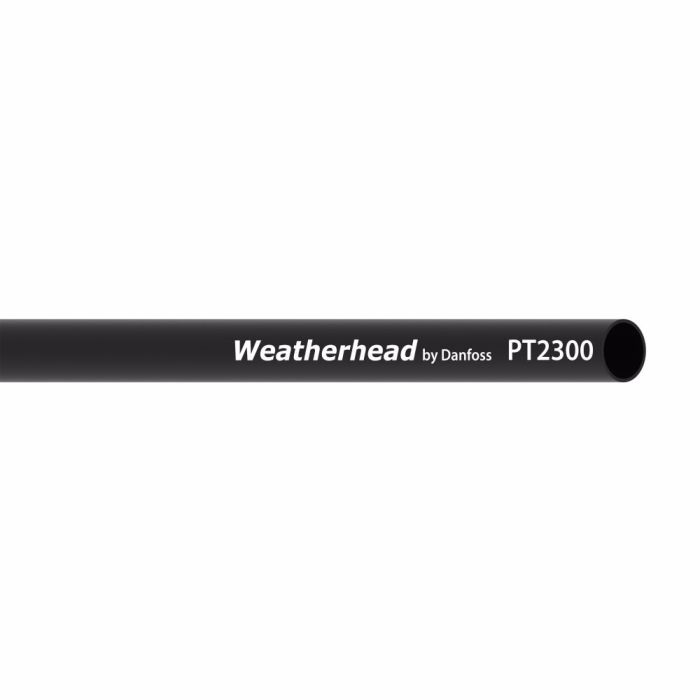

AEROQUIP AIRBRAKE Black 5/16OD Eclipse 100 FT

Description & Features

Engineered for durability and flexibility, the AEROQUIP AIRBRAKE Black 5/16OD Eclipse 100 FT is an ideal choice for truck and trailer air brake systems. Constructed using UV-stabilized extruded materials, this hose delivers premium abrasion resistance and long-lasting performance in demanding environments. Its proprietary blended nylon composition provides lightweight handling and a minimum bend radius of 1.13 inches, ensuring ease of installation in various configurations.

This airbrake hose is compliant with DOT FMVSS 106 standards and carries multiple SAE certifications (J844, J2494-3, J1131, J2494-2), affirming its quality and reliability for industrial use. Suitable for auxiliary air systems, as well as formed tubes and air brake harness assemblies, it features reinforced polyamide tubing for enhanced strength. The ink jet lay line style adds to its professional finish, while the -5 dash size ensures compatibility with QCAB qualified hose fittings.

SKU: 4245-0520-0100

Supplier Part Number (MPN): 4245-0520-0100

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00803X01512	Application Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies.	Certifications SAE J844\|SAE J2494-3\|SAE J1131\|SAE J2494-2	Color Black	Compliances DOT FMVSS 106	Construction Extruded	Cover Material UV Stabilized	Dash Size -5	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM FT	Features Light weight to improve hose flexibility\|Maximum durability under harsh operating conditions\|High quality proprietary blended nylon materials	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 1.13	Minimum Bend Radius 1.13	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.32	Qualified Hose Fittings QCAB	Reinforcement Material Polyamide	Sub Brand Synflex	Supplier Part Number 4245-0520-0100	Tube Material Polyamide	Product Weight 0.06 lbs

Product Questions & Answers (3)

Question by: Norm T on Nov 29, 2025, 6:25 PM

Can I use this with any type of air brake fitting, or are specific ones needed?

Answer by: Customer Support on Dec 1, 2025, 6:22 AM

This AEROQUIP airbrake hose is qualified for use with QCAB fittings.

Question by: Phil L on Jan 15, 2026, 11:17 AM

does this tubing hold up in real cold weather, like well below freezing? asking cause we run rigs through winter and cant afford brake line failures

Answer by: Customer Support on Jan 16, 2026, 3:56 PM

Rated down to -40 degrees, so genuine cold weather is not a problem for it. The polyamide construction holds its flexibility even when temperatures drop hard, which matters a lot when you need formed tubes or harness assemblies to keep their shape and not crack in the cold.

Question by: Wade P on Feb 9, 2026, 5:26 PM

trying to replace some old air brake line, is this the black 5/16 OD stuff and does it come as a full 100 ft roll?

Answer by: Customer Support on Feb 11, 2026, 7:02 AM

Youre looking at a black Synflex Eclipse 4245 Series airbrake hose and tubing with a 5/16 inch outside diameter, and it is packaged as a 100 foot length.
