4247 Solstice

Description & Features

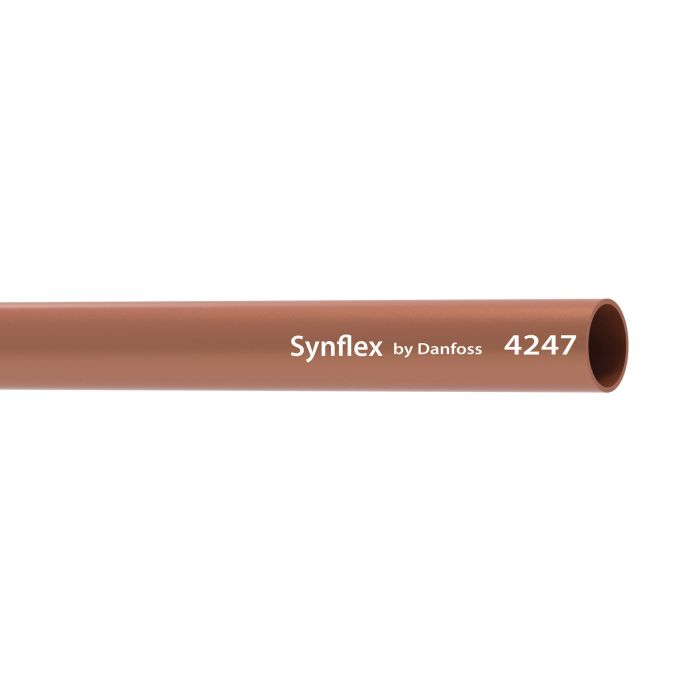

Eaton Aeroquip Synflex airbrake hose features a polyamide alloy tube and a UV-stabilized cover material for durability in demanding environments. The 4247 Solstice hose is constructed to be non-conductive, with premium abrasion resistance to maximize service life. This red, extruded hose is lightweight to improve flexibility.

This hose meets SAE J844, SAE J1131, and SAE J2494-3 certifications, and complies with DOT FMVSS 106 standards. It is suitable for use with QCAB and Push to Connect qualified hose fittings and has a minimum bend radius of 1 inch. The minimum working temperature is -40 degrees.

SKU: 4247-04126

Supplier Part Number (MPN): 4247-04126

Specifications

Brand Aeroquip® by Danfoss	Abrasion Resistance Premium	Color Red	Conductive Non-Conductive	Conductivity Non-Conductive	Construction Extruded	Inside Diameter 0.17 in	Material Polymer	Material Construction Polyamide	Nominal Size #04	Series 4247 Series

Product Questions & Answers (2)

Question by: Travis H on Aug 25, 2025, 9:17 AM

got a 1/4 air brake line i’m replacing. is this the red solstice stuff the same size, like dash 4?

Answer by: Customer Support on Aug 26, 2025, 12:26 PM

For sizing, this one is a -4 dash airbrake hose and it’s listed at 0.25 inch product width, so it lines up with a 1/4 inch air brake line replacement in that dash size.

Question by: Lynn R on Mar 28, 2025, 2:22 PM

Reckon this airbrake hose would hold up okay in a truck application, you know, bouncing around and all?

Answer by: Customer Support on Mar 30, 2025, 7:15 AM

Maximum durability under harsh operating conditions is one of the key features of this Synflex Solstice hose.
