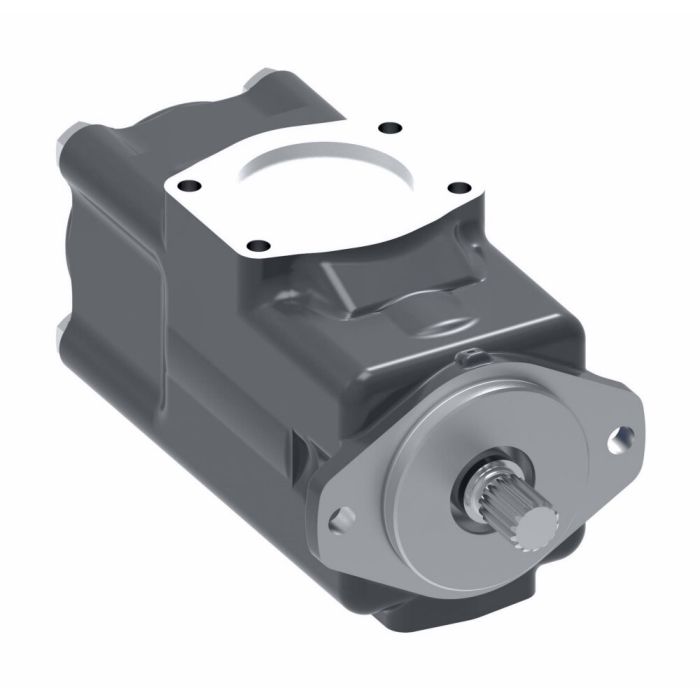

VICKERS 4535VQ42A30 11CC20

Ask A Question

Description & Features

Built for high-pressure, high-speed hydraulic circuits, the Vickers 4535VQ42A30 11CC20 is a double vane pump in the 4535VQ series, delivering a flow rate of approximately 260 litres per minute. Cast iron construction provides durability across demanding duty cycles, and the vane pump design is engineered for outstanding volumetric efficiency with extended service life.

This pump is well suited to a broad range of industrial equipment including press machines, die casting machinery, machine tools, plastics machinery, test equipment, and applications in primary metals, pulp and paper, wood processing, oil and gas, and marine sectors. The 4535VQ series is part of the Vickers by Danfoss/Eaton VQ(H) family, a recognized platform in industrial hydraulic power units where consistent output and reliability under load are critical requirements.

SKU: 429086-3

Supplier Part Number (MPN): 429086-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
20 Design
Dimensions
16.34 in L x 8.38 in W x 7.31 in H
Displacement
8.4 cu-in Shaft, 5.9 cu-in Cover
Drive Shaft Type
Splined
Flow Rate
42 gpm Shaft, 30 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
4-Bolt Flanged
nmfc
77.50
Outlet Size
1-1/4 in, 1-1/2 in
Rotation Direction
Clockwise
Seal Material
Buna-N
Segment Code
A
Series
4535 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Rod W on Jun 12, 2025, 5:59 PM
reckon this'd be alright for running on a plastics machine?
Answer by: Customer Support on Jun 14, 2025, 8:17 AM
For plastics machinery, this Vickers vane pump should be a good fit. It's also used in press machines, die casting, and machine tools.
Question by: Keith C on Jun 21, 2025, 9:02 AM
Flow rate on this thing is listed around 260 litres per minute, that kind of output hold up in a continuous press machine setup, or is it more of an intermittent deal?
Answer by: Customer Support on Jun 22, 2025, 6:27 PM
Cast iron construction and a vane pump design built for high-pressure, high-speed circuits means this unit handles demanding duty cycles pretty well. Press machine applications are actually listed as one of the intended uses, so running it hard in that kind of environment is well within what it was engineered for. Volumetric efficiency is a strong point of the 4535VQ series, which matters when consistent output under load is what you need.
