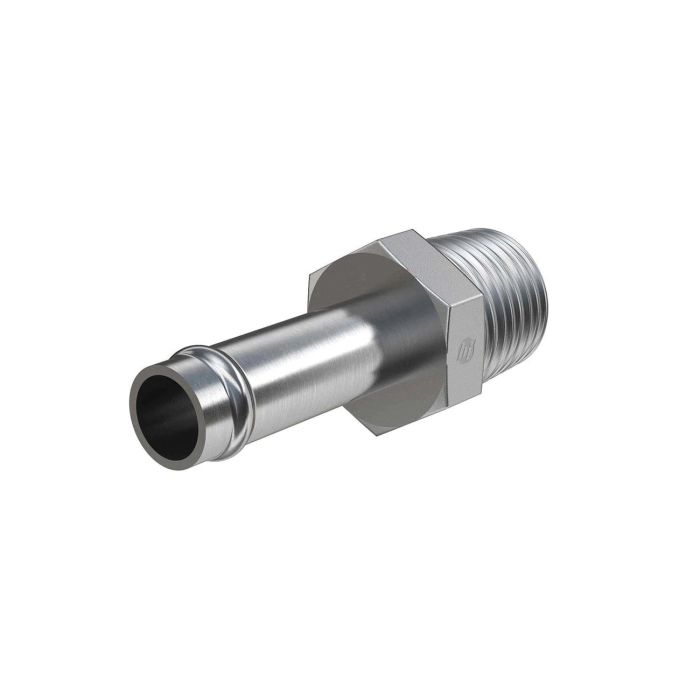

main product photo

04HB-02MP STRAIGHT

Ask A Question

Description & Features

The 04HB-02MP STRAIGHT fitting is meticulously crafted from durable straight steel, ensuring reliability in demanding industrial settings. This component features a hose barb connection with a tube outer diameter (OD) of 1/4 inch at Thread B1, offering secure and efficient hose attachment. On the other end, it includes a male NPTF thread measuring 1/8-27, adhering to SAE J476 standards for precise compatibility and leak-free performance.

With an overall length of 1.500 inches and a secondary length of 0.620 inches, this fitting is compact yet robust. The Brennan Series 4404 part is recognized for its quality and fitment in hydraulic systems, facilitating seamless fluid transfer. Designed specifically for industrial applications, it provides a reliable connection solution that withstands high-pressure environments.

SKU: 4404-04-02

Supplier Part Number (MPN): 4404-04-02

Alternate Part Numbers: 1046-0109

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Barbed, MNPT
Connection Type 1
SAE Beaded Hose Barbed
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1231-2, SAE J476
Dimensions
2.08 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/16 in
l2 Dimensions
0.62 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
4404 Series
Thread 2 Drill Dimensions
0.188 in
Thread B1 Drill Dimensions
0.188 in
Thread Size
1/8-27
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Product Questions & Answers (1)

Question by: Carl T on Jan 8, 2026, 7:36 AM
fitting's got a 1/4 inch barb on one end, does the other side thread straight into a standard 1/8 NPT port?
Answer by: Customer Support on Jan 10, 2026, 8:55 AM
That 1/8-27 male NPTF thread on the pipe end is built to SAE J476 spec, so it'll seat properly in any standard 1/8 NPT female port. The NPTF thread form is a dry-seal design, meaning it relies on thread interference to hold pressure rather than just a sealant, though thread sealant is still commonly applied in practice. The barb end accepts 1/4 inch OD hose, so as long as your hose matches that OD and your port is 1/8 NPT female, the connection lines up on both ends.
