06HB-06MP STRAIGHT STNLS

Description & Features

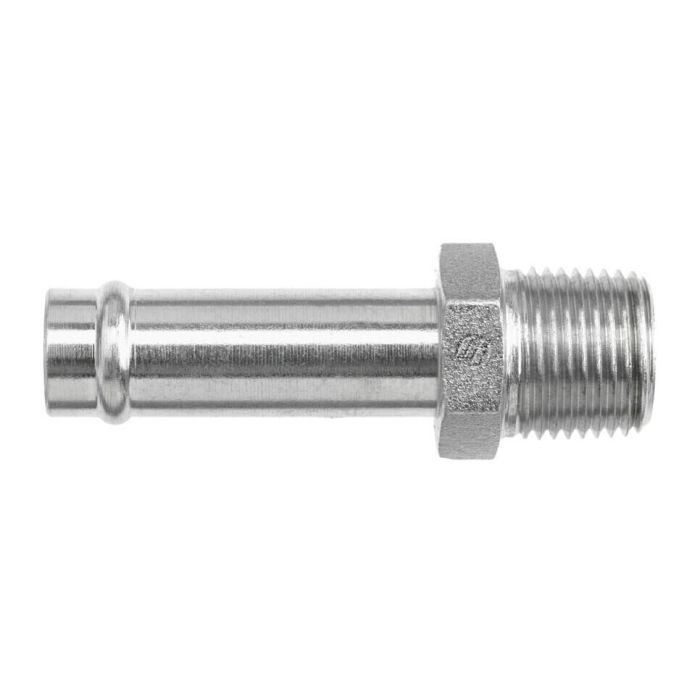

This straight stainless steel fitting, identified as 06HB-06MP STRAIGHT STNLS, features a hose barb connection on one end and a Male NPTF threaded connection on the other. Constructed from 4404 series stainless steel, it offers durability and corrosion resistance.

The hose barb end is designed for a 3/8" tube OD, while the Male NPTF end has a 3/8-18 thread size and conforms to SAE J476 specifications.

SKU: 4404-06-06-SS

Supplier Part Number (MPN): 4404-06-06-SS

Alternate Part Numbers: A3/8MHC3/8

Specifications

Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Barbed, MNPT	Connection Type 1 SAE Beaded Hose Barbed	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J1231-2, SAE J476	Dimensions 2.35 in L	Fitting Type Adapter	Hex Size 3/4 in	l2 Dimensions 0.85 in	l Dimensions 1-1/2 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Series 4404 Series	Thread 2 Drill Dimensions 0.406 in	Thread B1 Drill Dimensions 0.295 in	Thread Size 3/8-18	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Product Questions & Answers (1)

Question by: Ross D on Jan 12, 2026, 8:34 PM

Will this fitting hold up if its exposed to the elements?

Answer by: Customer Support on Jan 14, 2026, 8:28 AM

Constructed from 4404 series stainless steel, it offers good durability and corrosion resistance in typical outdoor conditions.
