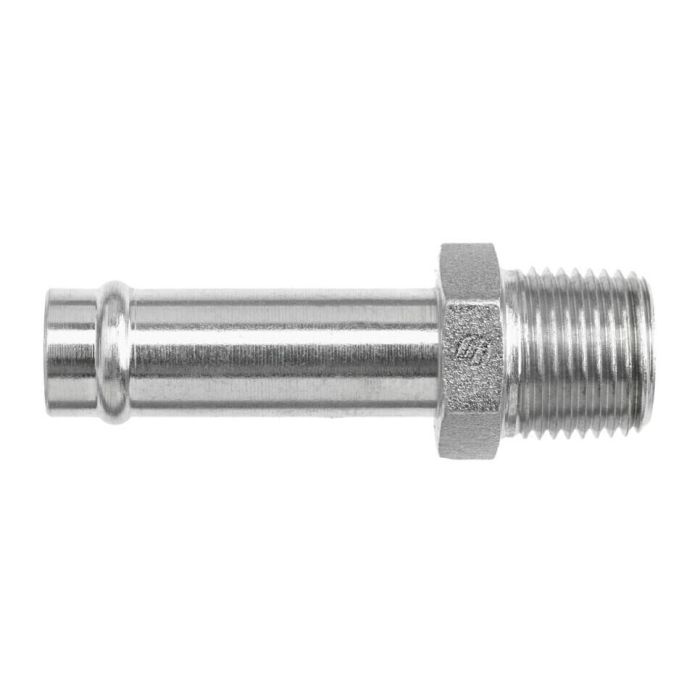

06HB-06MP STRAIGHT

Description & Features

Crafted from high-quality straight steel, this product offers robust performance and durability. Engineered by Brennan Industries Inc, it adheres to the SAE J476 standard, ensuring compatibility and reliability in industrial applications.

Designed with a hose barb thread type on one end and a male NPTF thread type on the other, the 06HB-06MP STRAIGHT is versatile and efficient. It features a 3/8-18 thread size on the male NPTF side and a tube OD of 3/8 on the hose barb side, making it suitable for a range of tasks.

With an overall length of 1.500 mm and a secondary length of 0.850 mm, this product ensures precise fit and functionality. The 0.295 mm drill size on Thread B1 and the 0.406 mm drill size on Thread B2 contribute to its adaptability and performance.

Californian residents should be aware of the PROP-65 WARNING associated with this item.

Supplier Part Number: 4404-06-06

Specifications

Brand BRENNAN	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Barbed, MNPT	Connection Type 1 SAE Beaded Hose Barbed	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J1231-2, SAE J476	Dimensions 2.35 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 3/4 in	l2 Dimensions 0.85 in	l Dimensions 1-1/2 in	Material Steel	Material Construction 12L14/C1045 Steel	Series 4404 Series	Thread 2 Drill Dimensions 0.406 in	Thread B1 Drill Dimensions 0.295 in	Thread Size 3/8-18	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
4404-04-02	1/4 in	1/8 in	1/8-27
4404-04-04	1/4 in	1/4 in	1/4-18
4404-06-04	3/8 in	1/4 in	1/4-18
4404-08-06	1/2 in	3/8 in	3/8-18
4404-08-08	1/2 in	1/2 in	1/2-14
4404-10-06	5/8 in	3/8 in	3/8-18
4404-10-08 Steel Barb To Male NPT Adapter	5/8 in	1/2 in	1/2-14
4404-10-12	5/8 in	3/4 in	3/4-14
4404-12-08	3/4 in	1/2 in	1/2-14
4404-12-12	3/4 in	3/4 in	3/4-14
4404-16-12	1 in	3/4 in	3/4-14
4404-16-16	1 in	1 in	1-11-1/2
4404-20-16	1-1/4 in	1 in	1-11-1/2
4404-20-20	1-1/4 in	1-1/4 in	1-1/4-11-1/2
4404-20-24	1-1/4 in	1-1/2 in	1-1/2-11-1/2
4404-24-20	1-1/2 in	1-1/4 in	1-1/4-11-1/2
4404-24-24	1-1/2 in	1-1/2 in	1-1/2-11-1/2
4404-32-32	2 in	2 in	2-11-1/2

Product Questions & Answers (2)

Question by: Dean K on Dec 11, 2025, 5:33 PM

What size is the hose barb end on this thing?

Answer by: Customer Support on Dec 13, 2025, 8:57 AM

The hose barb side is made for a tube with an outer diameter of 3/8 inch.

Question by: Merle M on May 30, 2025, 6:46 AM

trying to hook a 3/8 hose to a 3/8-18 nptf port. is that what the 06HB-06MP is made for?

Answer by: Customer Support on May 31, 2025, 12:08 PM

For connecting unlike ends, it has a hose barb sized for 3/8 tube OD on one side and a 3/8-18 male NPTF thread on the other, built to the SAE J476 spec.
