08HB-06MP STRAIGHT

Description & Features

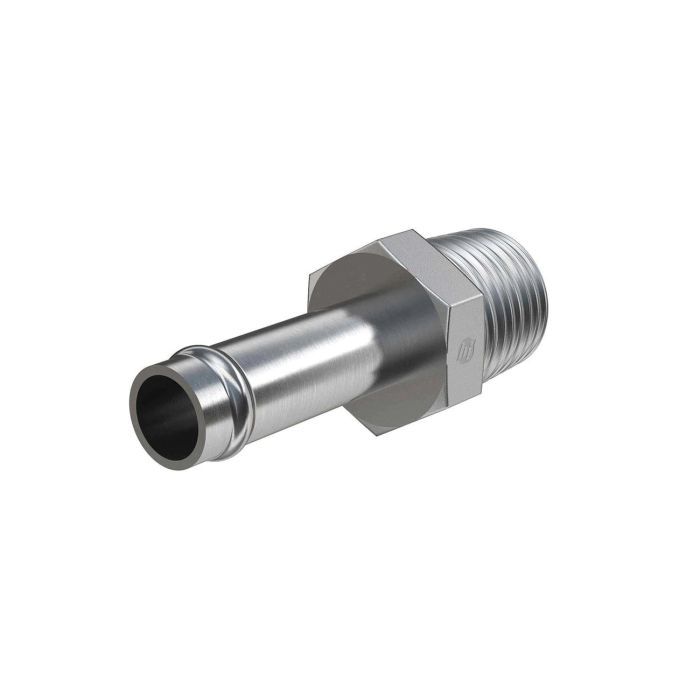

Crafted from straight steel, the Brennan 08HB-06MP STRAIGHT fitting is a reliable choice for industrial hydraulic systems. This fitting features a hose barb with a tube outside diameter of 1/2 inch on one end and a 3/8-18 male NPTF thread, adhering to SAE J476 standards, on the other. Its robust construction ensures a secure connection and efficient fluid transfer in demanding applications.

The fitting measures an overall length of 1.500 mm, with a thread drill size of 0.406 mm, making it suitable for a variety of hydraulic setups. Designed by Brennan Industries, this fitting is ideal for use where durability and precision are crucial.

SKU: 4404-08-06

Supplier Part Number (MPN): 4404-08-06

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Barbed, MNPT
Connection Type 1
SAE Beaded Hose Barbed
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1231-2, SAE J476
Dimensions
2.35 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
3/4 in
l2 Dimensions
0.85 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
4404 Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
04HB-02MP STRAIGHT

4404-04-02

1/4 in

1/8 in

1/8-27

04HB-04MP STRAIGHT

4404-04-04

1/4 in

1/4 in

1/4-18

06HB-04MP STRAIGHT

4404-06-04

3/8 in

1/4 in

1/4-18

06HB-06MP STRAIGHT

4404-06-06

3/8 in

3/8 in

3/8-18

08HB-08MP STRAIGHT

4404-08-08

1/2 in

1/2 in

1/2-14

10HB-06MP STRAIGHT

4404-10-06

5/8 in

3/8 in

3/8-18

Steel Adapter, 0.63 Inch Hose Barb To 1/2-14 Male NPT, Straight

4404-10-08 Steel Barb To Male NPT Adapter

5/8 in

1/2 in

1/2-14

10HB-12MP STRAIGHT

4404-10-12

5/8 in

3/4 in

3/4-14

12HB-08MP STRAIGHT

4404-12-08

3/4 in

1/2 in

1/2-14

12HB-12MP STRAIGHT

4404-12-12

3/4 in

3/4 in

3/4-14

16HB-12MP STRAIGHT

4404-16-12

1 in

3/4 in

3/4-14

16HB-16MP STRAIGHT

4404-16-16

1 in

1 in

1-11-1/2

20HB-16MP STRAIGHT

4404-20-16

1-1/4 in

1 in

1-11-1/2

20HB-20MP STRAIGHT

4404-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

20HB-24MP STRAIGHT

4404-20-24

1-1/4 in

1-1/2 in

1-1/2-11-1/2

24HB-20MP STRAIGHT

4404-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2

24HB-24MP STRAIGHT

4404-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

32HB-32MP STRAIGHT

4404-32-32

2 in

2 in

2-11-1/2

Product Questions & Answers (1)

Question by: Sheila P on Jun 9, 2025, 5:17 PM
Will this fitting hold up okay in an industrial hydraulic setup?
Answer by: Customer Support on Jun 11, 2025, 6:14 AM
Given its straight steel construction and design by Brennan Industries, it should provide a reliable connection and fluid transfer for demanding industrial applications.
