08HB-08MP STRAIGHT

Description & Features

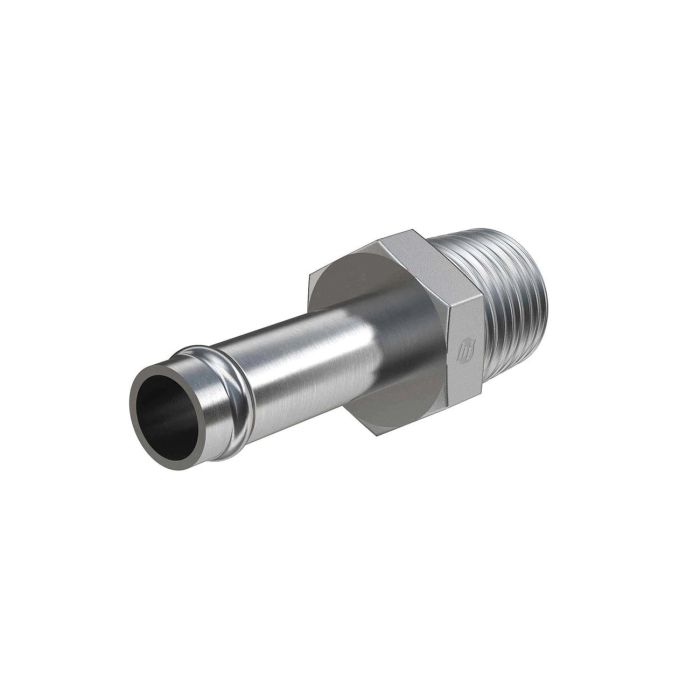

The 08HB-08MP Straight from Brennan Industries Inc is crafted from high-quality straight steel, ensuring durability and reliability in various industrial applications. It features a hose barb thread type with a tube OD of 1/2 and a male NPTF thread type with a size of 1/2-14, compliant with SAE J476 specifications.

The overall length of the product is 1.500 mm, while the secondary length measures 1.100 mm, providing a precise fit for standard industrial requirements. The primary drill thread size is 0.406 mm, and the secondary drill thread size is 0.531 mm, enhancing its compatibility with related components.

Supplier Part Number: 4404-08-08

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Barbed, MNPT
Connection Type 1
SAE Beaded Hose Barbed
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1231-2, SAE J476
Dimensions
2.6 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.94 in
l2 Dimensions
1.1 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
4404 Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
1/2-14
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
04HB-02MP STRAIGHT

4404-04-02

1/4 in

1/8 in

1/8-27

04HB-04MP STRAIGHT

4404-04-04

1/4 in

1/4 in

1/4-18

06HB-04MP STRAIGHT

4404-06-04

3/8 in

1/4 in

1/4-18

06HB-06MP STRAIGHT

4404-06-06

3/8 in

3/8 in

3/8-18

08HB-06MP STRAIGHT

4404-08-06

1/2 in

3/8 in

3/8-18

10HB-06MP STRAIGHT

4404-10-06

5/8 in

3/8 in

3/8-18

Steel Adapter, 0.63 Inch Hose Barb To 1/2-14 Male NPT, Straight

4404-10-08 Steel Barb To Male NPT Adapter

5/8 in

1/2 in

1/2-14

10HB-12MP STRAIGHT

4404-10-12

5/8 in

3/4 in

3/4-14

12HB-08MP STRAIGHT

4404-12-08

3/4 in

1/2 in

1/2-14

12HB-12MP STRAIGHT

4404-12-12

3/4 in

3/4 in

3/4-14

16HB-12MP STRAIGHT

4404-16-12

1 in

3/4 in

3/4-14

16HB-16MP STRAIGHT

4404-16-16

1 in

1 in

1-11-1/2

20HB-16MP STRAIGHT

4404-20-16

1-1/4 in

1 in

1-11-1/2

20HB-20MP STRAIGHT

4404-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

20HB-24MP STRAIGHT

4404-20-24

1-1/4 in

1-1/2 in

1-1/2-11-1/2

24HB-20MP STRAIGHT

4404-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2

24HB-24MP STRAIGHT

4404-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

32HB-32MP STRAIGHT

4404-32-32

2 in

2 in

2-11-1/2

Product Questions & Answers (2)

Question by: Janet F on Apr 6, 2026, 12:24 PM
trying to replace a fitting on a 1/2 inch hose, is this one a barb on one end and 1/2-14 male pipe thread on the other?
Answer by: Customer Support on Apr 8, 2026, 7:57 AM
On the B1 side it is a hose barb sized for tube OD 1/2, and on the B2 side it is a 1/2-14 male NPTF thread that meets SAE J476.
Question by: Bobby R on Sep 24, 2025, 6:35 AM
Does this fitting use a standard 1/2 inch hose barb on one end and NPT on the other, or is it something different?
Answer by: Customer Support on Sep 25, 2025, 2:19 PM
One end is a 1/2 inch hose barb and the other is a 1/2-14 male NPTF thread, so yeah, you got one of each. The NPTF side meets SAE J476 spec, which is the dry-seal thread standard. Good straight adapter for connecting a barbed hose end into a female NPT port without any elbows or extra fittings in between.
