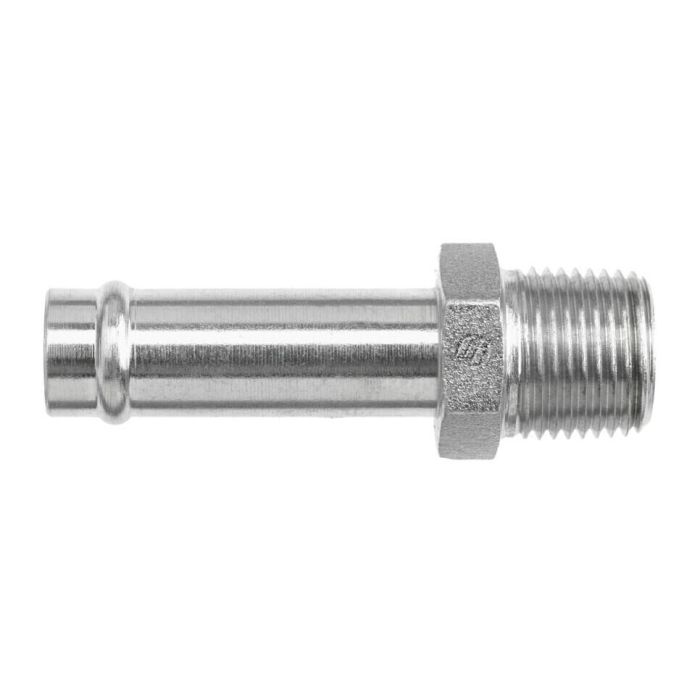

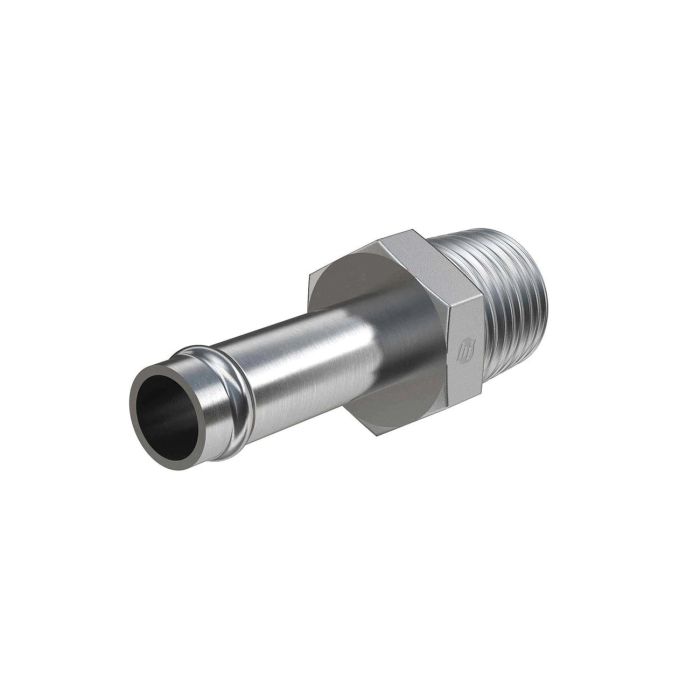

main product photo

12HB-08MP STRAIGHT

Ask A Question

Description & Features

Straight steel hose barb-to-male NPTF fittings bridge hose assemblies and threaded pipe connections in hydraulic and fluid transfer systems. The 12HB-08MP Straight from Brennan Industries connects a 3/4" OD hose barb on one end to a 1/2-14 Male NPTF thread on the other, with the NPTF thread conforming to SAE J476 for a pressure-tight, dry-seal connection without the need for additional sealant.

Constructed from straight steel, this fitting suits demanding industrial environments where durability and leak-free performance are required. The compact overall length makes it appropriate for space-constrained installations. California residents should note that this product is subject to Prop 65 warnings as indicated by Brennan Industries.

SKU: 4404-12-08

Supplier Part Number (MPN): 4404-12-08

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Barbed, MNPT
Connection Type 1
SAE Beaded Hose Barbed
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1231-2, SAE J476
Dimensions
2.6 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.94 in
l2 Dimensions
1.1 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
4404 Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.626 in
Thread Size
1/2-14
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Question by: Ronnie P on Aug 8, 2025, 8:16 AM
Will this fitting work with regular pipe thread or is it specifically for NPTF?
Answer by: Customer Support on Aug 10, 2025, 6:53 AM
It's designed with a Male NPTF thread, meeting SAE J476 standards, which means it creates a dry-seal connection without needing extra sealant. So, yeah, it's specifically for NPTF.
