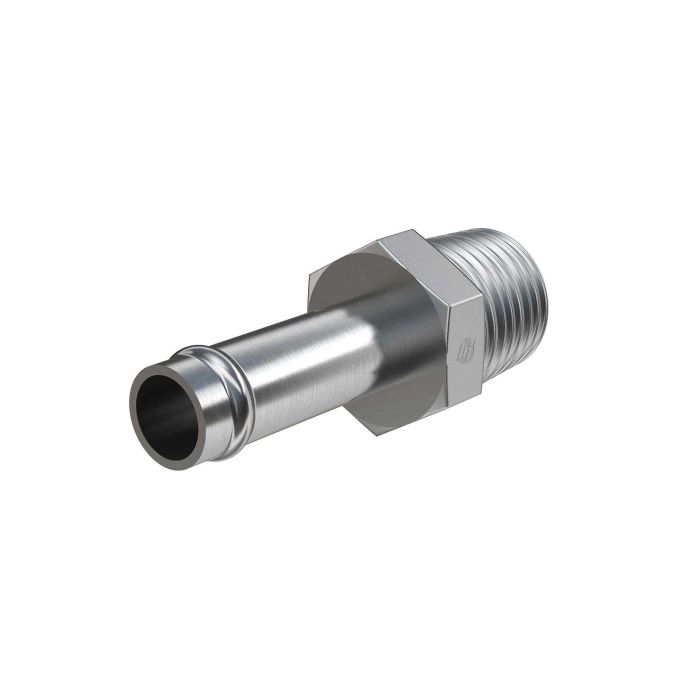

main product photo

20HB-16MP STRAIGHT

Ask A Question

Description & Features

Constructed from durable straight steel, the 20HB-16MP STRAIGHT fitting is an essential component for industrial hydraulic applications. This fitting features a 1-1/4 inch hose barb and a male NPTF thread size of 1-11-1/2, conforming to the SAE J476 standard for robust and reliable connections. Its overall length of 1.500 mm ensures compatibility with various system configurations, while maintaining structural integrity under demanding conditions.

As part of the Brennan Industries Series 4404, this fitting is designed for efficient fluid transfer and secure hose connections, making it ideal for industrial systems requiring precise fit and performance. The 20HB-16MP STRAIGHT's thread specifications and material selection reflect a commitment to quality and long-term functionality in challenging environments.

SKU: 4404-20-16

Supplier Part Number (MPN): 4404-20-16

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Barbed, MNPT
Connection Type 1
SAE Beaded Hose Barbed
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1231-2, SAE J476
Dimensions
2.86 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/8 in
l2 Dimensions
1.36 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
4404 Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
1.094 in
Thread Size
1-11-1/2
Tube Outside Diameter
1-1/4 in

Product Questions & Answers (1)

Question by: Roy W on Jun 29, 2025, 5:50 PM
What size hose will fit this thing? Looks like I need a 1 1/4 inch.
Answer by: Customer Support on Jun 30, 2025, 7:39 PM
Correct, this fitting is designed for a 1-1/4 inch hose, using a hose barb connection.
