24HB-20MP STRAIGHT

Description & Features

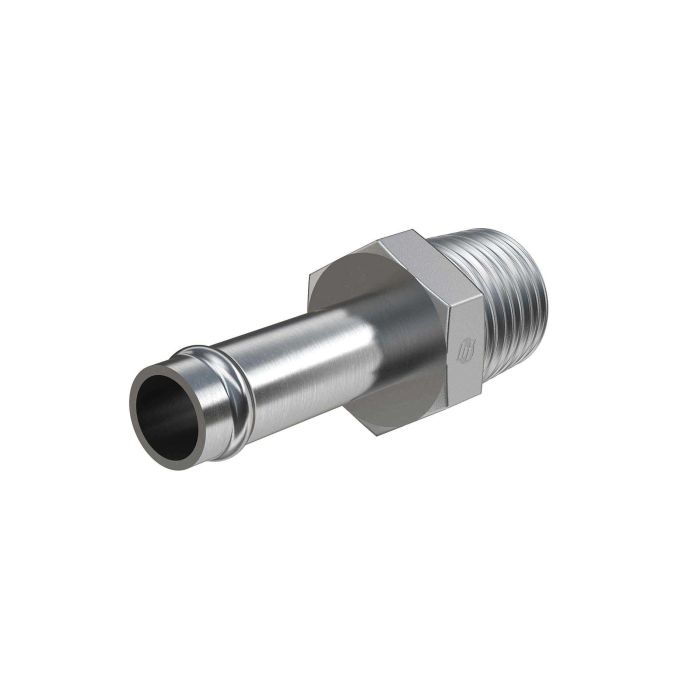

This straight steel fitting, part number 24HB-20MP STRAIGHT, features a hose barb end with a 1-1/2 inch tube OD and a 1-1/4-11-1/2 Male NPTF end. Manufactured by Brennan Industries to SAE J476 standards, this fitting is suitable for a range of hydraulic applications.

The overall length of the 24HB-20MP STRAIGHT fitting is approximately 1.5 inches. It is a durable and reliable component for connecting hoses and pipes in hydraulic systems.

SKU: 4404-24-20

Supplier Part Number (MPN): 4404-24-20

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1-1/4 in
Connection Type
Barbed, MNPT
Connection Type 1
SAE Beaded Hose Barbed
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1231-2, SAE J476
Dimensions
2.97 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/4 in
l2 Dimensions
1.45 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
4404 Series
Thread 2 Drill Dimensions
1.25 in
Thread B1 Drill Dimensions
1.343 in
Thread Size
1-1/4-11-1/2
Tube Outside Diameter
1-1/2 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
04HB-02MP STRAIGHT

4404-04-02

1/4 in

1/8 in

1/8-27

04HB-04MP STRAIGHT

4404-04-04

1/4 in

1/4 in

1/4-18

06HB-04MP STRAIGHT

4404-06-04

3/8 in

1/4 in

1/4-18

06HB-06MP STRAIGHT

4404-06-06

3/8 in

3/8 in

3/8-18

08HB-06MP STRAIGHT

4404-08-06

1/2 in

3/8 in

3/8-18

08HB-08MP STRAIGHT

4404-08-08

1/2 in

1/2 in

1/2-14

10HB-06MP STRAIGHT

4404-10-06

5/8 in

3/8 in

3/8-18

Steel Adapter, 0.63 Inch Hose Barb To 1/2-14 Male NPT, Straight

4404-10-08 Steel Barb To Male NPT Adapter

5/8 in

1/2 in

1/2-14

10HB-12MP STRAIGHT

4404-10-12

5/8 in

3/4 in

3/4-14

12HB-08MP STRAIGHT

4404-12-08

3/4 in

1/2 in

1/2-14

12HB-12MP STRAIGHT

4404-12-12

3/4 in

3/4 in

3/4-14

16HB-12MP STRAIGHT

4404-16-12

1 in

3/4 in

3/4-14

16HB-16MP STRAIGHT

4404-16-16

1 in

1 in

1-11-1/2

20HB-16MP STRAIGHT

4404-20-16

1-1/4 in

1 in

1-11-1/2

20HB-20MP STRAIGHT

4404-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

20HB-24MP STRAIGHT

4404-20-24

1-1/4 in

1-1/2 in

1-1/2-11-1/2

24HB-24MP STRAIGHT

4404-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

32HB-32MP STRAIGHT

4404-32-32

2 in

2 in

2-11-1/2

Product Questions & Answers (1)

Question by: Danny F on May 16, 2025, 7:02 PM
So this fitting has a hose barb on one end and a pipe thread on the other, right? Just want to make sure I'm seeing that right.
Answer by: Customer Support on May 18, 2025, 8:56 AM
That's correct. On one side, you've got a hose barb designed for a 1-1/2 inch tube OD. The other end features a 1-1/4-11-1/2 Male NPTF pipe thread.
