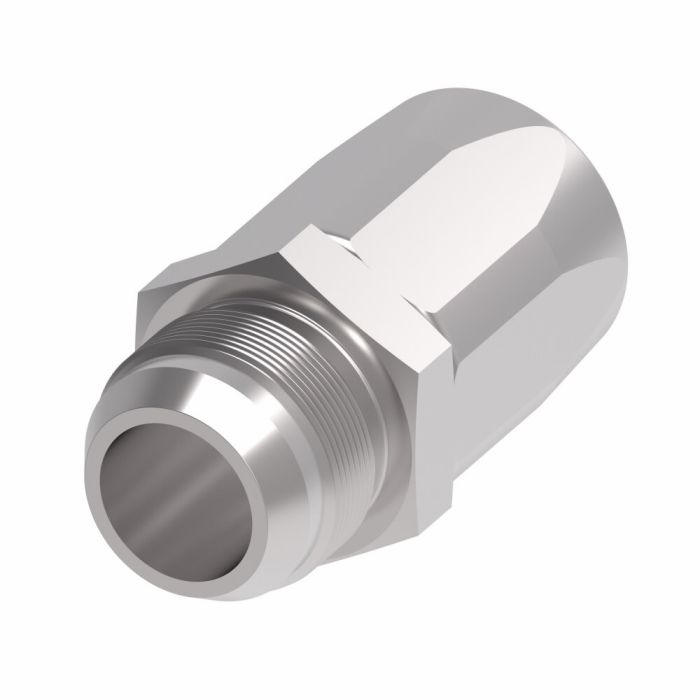

AEROQUIP FITTING

Description & Features

This Aeroquip fitting features durable carbon steel construction and is suitable for a wide range of applications. The fitting assembly features a male SAE 37° end and is designed for use with -20 hose dash size.

This Aeroquip fitting will cut assembly times and boost production, as well as being dependable.

SKU: 4414-20S

Supplier Part Number (MPN): 4414-20S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.22 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Hose, Male JIC	Connection Type 1 Hose	Connection Type 2 Male SAE 37 deg JIC Flare	Construction Style Reusable	Cut-Off Factor 1.9 in	Dimensions 3.22 in L x 1.75 in W x 2.02 in H	End Gender 1 Male	End Size 1 20	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series Hoses	Hex Size 1-3/4 in	Hose Dash Size 20	Inside Diameter 1.05 in	Material Steel	Material Construction Carbon Steel	Reusable Socket Hex Size 44.45 mm	Series 4414 Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/8-12	Thread Type UN

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hose Dash Size
4414-10S Steel Reusable JIC Fitting	5/8 in	5/8 in	10
4414-12S Steel Reusable JIC Fitting	3/4 in	3/4 in	12
4414-8S Steel Reusable JIC Fitting	1/2 in	3/4 in	08
4414-4S Steel Reusable JIC Fitting	1/4 in	1/4 in	04
4414-6S Steel Reusable JIC Fitting	3/8 in	3/8 in	06
4414-5S	5/16 in	5/16 in	05
4414-12-10S	5/8 in	3/4 in	10
4414-16B	1 in	1 in	16
4414-16S	1 in	1 in	16
4414-24S	1-1/2 in	1-1/2 in	24
