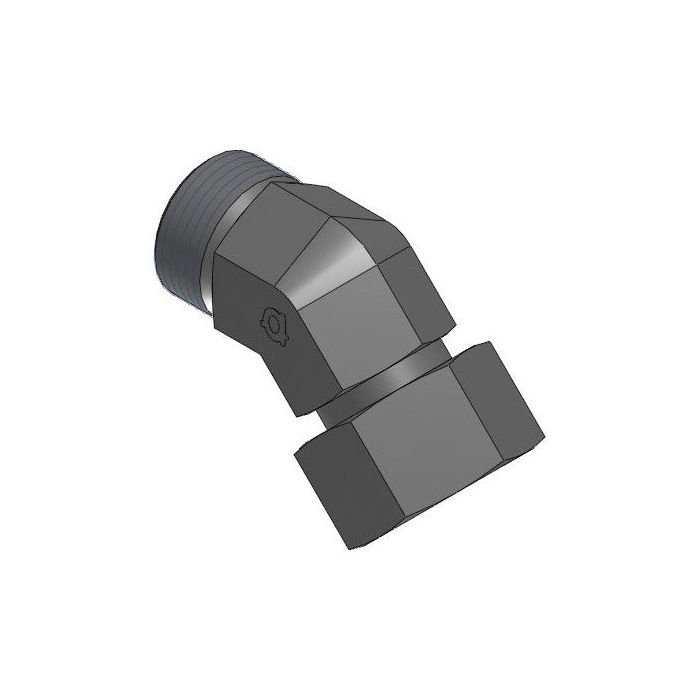

45* Din X F Din Swivel

Ask A Question

Description & Features

Designed for robust hydraulic systems, the 45° Din X F Din Swivel provides seamless connectivity with its dual M14 X 1.5 connections. This swivel features a male Din Tube connection on one side and a female Din Tube connection on the other, ensuring versatile applications in industrial settings. Constructed from durable steel, it guarantees longevity and reliability in demanding environments.

The swivel's precise dimensions, including a 14mm width for channel 1 and 17mm for channel 2, facilitate accurate fitting and alignment. With a total length of 27.5mm, this component integrates smoothly into existing systems, enhancing operational efficiency. The Adaptall brand ensures quality and compatibility with standard hydraulic systems, making it an ideal choice for professionals seeking dependable performance.

SKU: 5362L-08

Supplier Part Number (MPN): 5362L-08

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
8 mm
Connection Type
Female Metric Swivel, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Female Metric DIN 24 deg Tube Swivel
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
19 mm L
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5362 Series
Thread Size
M14x1.5

Product Questions & Answers (3)

Question by: Hubert B on Jan 4, 2026, 4:05 PM
What size wrench do I need for the flats on this swivel?
Answer by: Customer Support on Jan 6, 2026, 12:33 PM
It's designed with a 14mm width on one channel and 17mm on the other to fit standard wrenches.
Question by: Jimmy F on Jul 20, 2025, 12:54 PM
Both sides on this thing are M14 x 1.5 threading, right? Just want to make sure before I go swapin out a straight fitting for this angled one.
Answer by: Customer Support on Jul 22, 2025, 6:15 AM
Both connections on this swivel are M14 x 1.5, yes. One side is a male DIN tube end and the other is female DIN tube, so as long as your existing fittings are DIN tube style at that thread size, this should drop right in where a straight fitting was. The 45 degree angle is the main difference you're working with here.
Question by: Steve W on Dec 29, 2025, 8:30 PM
got a tight spot on a hydraulic line, is this the kind of fitting that helps you turn the line without kinking it?
Answer by: Customer Support on Dec 31, 2025, 1:47 PM
With a 45° elbow shape and a swivel body, it’s meant to help you make an angled connection while still being able to rotate for alignment during hookup. Both ends are DIN tube connections, so it’s aimed at situations where you need that 45° change in direction but want easier clocking than a fixed elbow.
