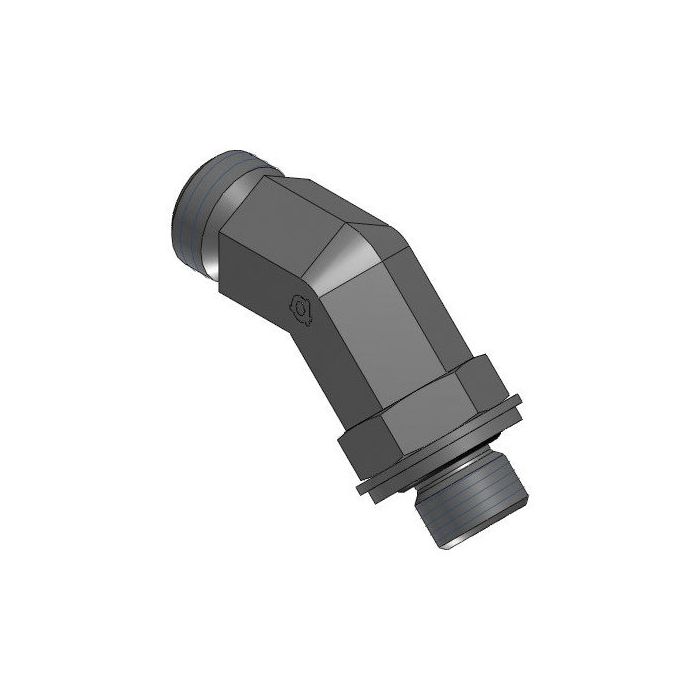

main product photo

45* Din X Male Bspp Adjustable

Ask A Question

Description & Features

This steel 45° elbow Adaptall fitting adapts a DIN tube to a male BSPP connection. It features a DIN tube side with M14 x 1.5 callout and L08 size. The BSPP side features a G 1/4-19 callout and 1/4" size.

This 45* Din X Male Bspp Adjustable fitting is designed for hydraulic applications. The Adaptall Ch1 width is 14mm, and the Adaptall Ch2 width is 19mm.

SKU: 5058L-08-04

Supplier Part Number (MPN): 5058L-08-04

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, DIN 2353
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5058 Series
Thread Size
M14x1.5 x 1/4-19

Product Questions & Answers (1)

Question by: Kurt H on May 22, 2025, 7:28 PM
fitting's got a 45 degree angle on it -- does that mean one side points straight and the other kicks out to the side, or is it more like both ends are angled off center?
Answer by: Customer Support on May 24, 2025, 7:48 AM
On a 45 degree elbow like this one, one end connects straight into your component and the other end exits at a 45 degree offset from that axis. So if you're running a DIN tube line that needs to change direction without a sharp 90 degree turn, this gives you that gradual redirect. The DIN tube side uses an M14 x 1.5 thread with an L08 size, and the BSPP male side comes out at G 1/4-19. The elbow itself is steel, so it holds up to the stress of angled line routing without flexing or distorting at the joint.
