45* Elb. Mbspp X Adjust.Mbspp

Description & Features

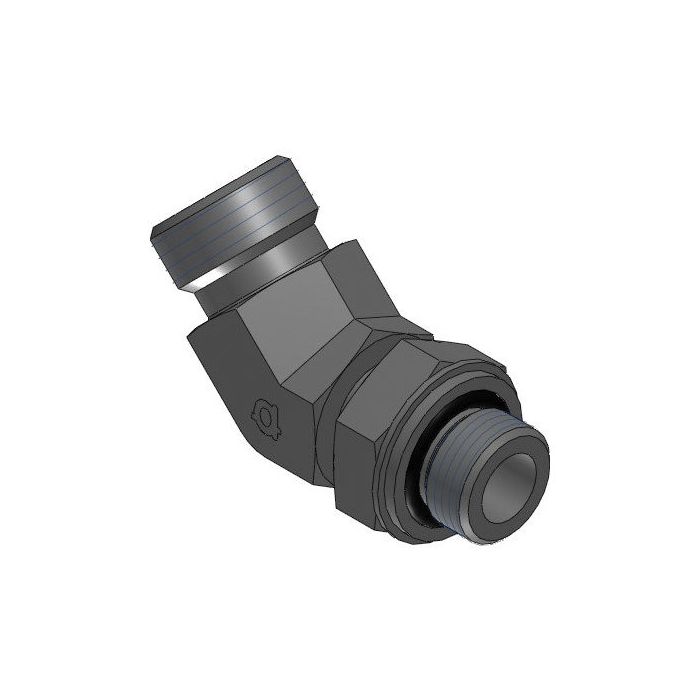

This Adaptall 45° Elbow is expertly designed with precision and durability in mind, making it an essential component for industrial hydraulic systems. Constructed from high-quality steel, it offers robust performance and longevity in demanding environments. The elbow features a G 1/4 - 19 Male BSPP connection on both sides, ensuring a secure and leak-free fit. With side dimensions of 1/4", it is perfectly suited for applications requiring reliable directional flow within hydraulic circuits.

Its compact design, with an L1 length of 29.5mm and an L2 length of 21.5mm, allows for easy integration into existing systems without compromising space. The Adaptall 45* Elb. Mbspp X Adjust.Mbspp is optimized for effective performance, providing flexibility and reliability where precise angular adjustments are necessary.

SKU: 9051-04-04

Supplier Part Number (MPN): 9051-04-04

Specifications

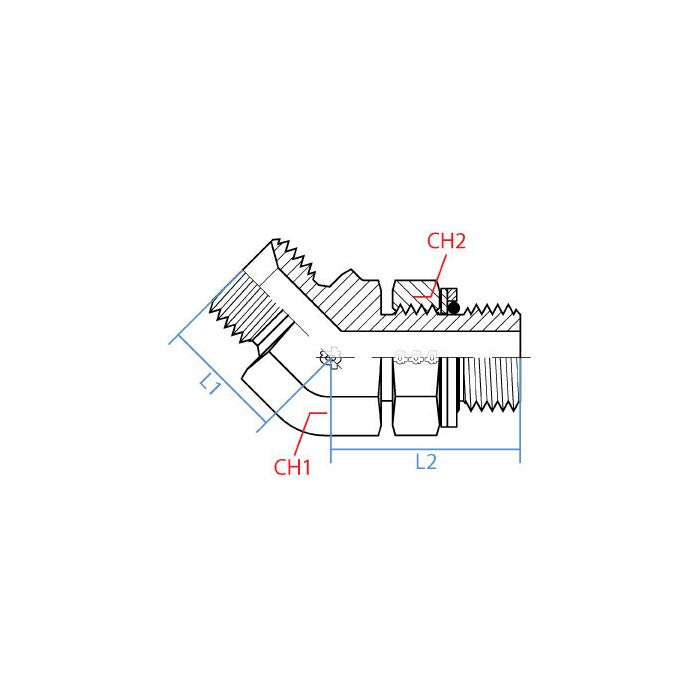

CH1 Width 13.5mm	CH2 Width 19mm	L1 Length 29.5mm	L2 Length 21.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9051-04-04	Product Weight 0.10 lbs

Product Questions & Answers (3)

Question by: Janice J on Feb 9, 2026, 9:37 AM

both ends on this fitting are male BSPP, so what exactly does the "adjustable" part mean for the second side?

Answer by: Customer Support on Feb 10, 2026, 5:02 PM

The adjustable designation on side two means that end can be rotated and locked into position during installation, letting you fine-tune the orientation of the elbow before you tighten it down. Both sides carry the same G 1/4-19 male BSPP thread, but that adjustability on side two gives you a bit more freedom when you're working in a tight spot and need the outlet pointing just right without having to torque the whole assembly.

Question by: Peggy T on Jun 27, 2025, 10:50 AM

trying to replace a 45 degree elbow on my hydraulic line, is this one male BSPP on both ends and 1/4 size?

Answer by: Customer Support on Jun 29, 2025, 6:14 AM

Both sides are G 1/4 - 19 male BSPP, and each end is sized 1/4 inch. It is a 45° elbow, so it matches that angle as well.

Question by: Rhonda E on Feb 1, 2026, 5:56 PM

Will this elbow work with standard BSPP fittings?

Answer by: Customer Support on Feb 3, 2026, 8:35 AM

Yes, this Adaptall elbow is designed with G 1/4 - 19 Male BSPP connections on both sides, ensuring compatibility with standard BSPP fittings of the same size.
