45* Mjic X Mbspt Elbow

Description & Features

Constructed from steel, this 45-degree elbow adapter connects a 3/8" male JIC fitting (9/16-18 UNF thread) on one end to a 1/4" male BSPT fitting (R 1/4-19 thread) on the other, making it well suited for hydraulic lines that require a transition between JIC and BSPT thread standards at an angled junction. The 45-degree elbow geometry helps manage directional changes in tight routing conditions without requiring sharp bends in the hydraulic line.

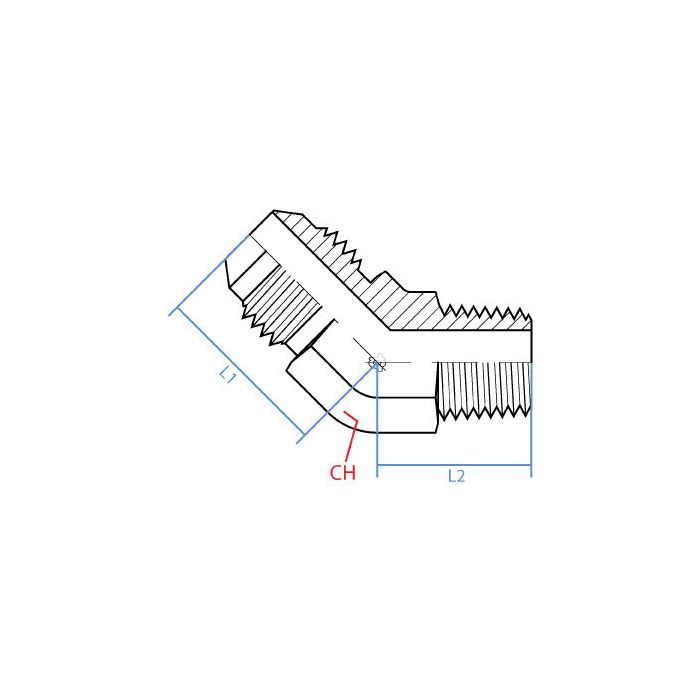

The 45° Mjic X Mbspt Elbow is an Adaptall product, with a CH width of 14mm and both L1 and L2 lengths measuring 21mm. Its compact dimensions and dual-standard thread configuration make it a practical choice for hydraulic systems where JIC and BSPT connections must be joined within a confined envelope.

SKU: 9064-06-04

Supplier Part Number (MPN): 9064-06-04

Specifications

Connection Size 1 9/16 in	Connection Size 2 1/4 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514	Finish Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 14 mm	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 4000 psi	Series 9064 Series	Thread Size 9/16-18 x 1/4-19

Product Questions & Answers (1)

Question by: Rex T on May 19, 2025, 11:31 AM

Will this elbow work to connect a 3/8" JIC fitting to a 1/4" BSPT fitting at a 45-degree angle?

Answer by: Customer Support on May 21, 2025, 7:32 AM

This 45-degree elbow adapter is specifically designed to connect a 3/8" male JIC fitting to a 1/4" male BSPT fitting, making it suitable for angled transitions between JIC and BSPT thread standards.
