45*Tube Elb.M.Jic X F.Bspp Sw.

Description & Features

Engineered for compatibility with hydraulic systems, this 45° Elbow is constructed from durable steel, ensuring longevity and reliable performance. Designed with a male JIC (Joint Industry Council) connection on one end and a female BSPP (British Standard Pipe Parallel) swivel connection on the other, this fitting facilitates seamless integration within various industrial applications. The male JIC side features a 1-1/16 - 12 UN thread, while the female BSPP side is equipped with a G 3/4 - 14 thread, both accommodating a 3/4" size.

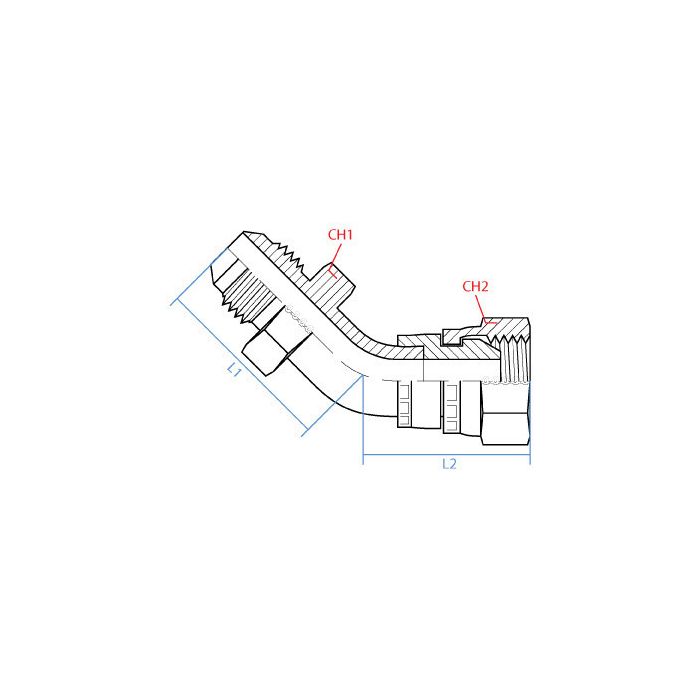

With an Adaptall Ch1 Width of 28.5mm and Ch2 Width of 32mm, this elbow fitting offers precise dimensions that meet industrial standards. Its compact design, with an L1 length of 48mm and an L2 length of 42mm, contributes to efficient space utilization in complex hydraulic layouts. The Adaptall brand ensures high-quality construction and compatibility with a range of hydraulic systems, making this component a valuable addition to your equipment.

SKU: 9260-12-12

Supplier Part Number (MPN): 9260-12-12

Specifications

CH1 Width 28.5mm	CH2 Width 32mm	L1 Length 48mm	L2 Length 42mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9260-12-12	Product Weight 0.50 lbs

Product Questions & Answers (1)

Question by: Pete O on May 29, 2025, 8:02 PM

Will this fitting hold up okay in a hydraulic system that runs pretty much all day long?

Answer by: Customer Support on May 31, 2025, 6:37 AM

Constructed from durable steel, this elbow fitting should provide reliable performance even in systems that operate continuously.
