APDTR, 90-2MNPT X -06 BARB

Description & Features

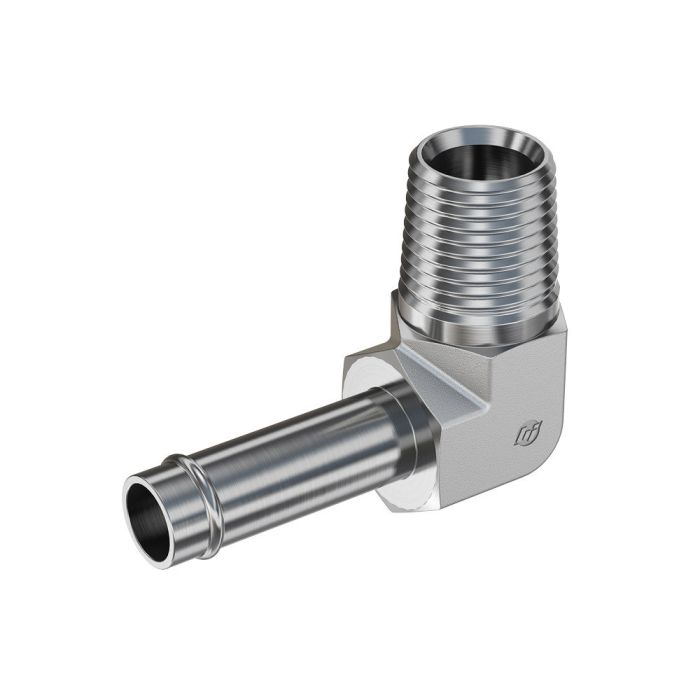

This steel forging, also known as APDTR, 90-2MNPT X -06 BARB, features a 90-degree elbow design.

It has a 1/8-27 Male NPTF thread per SAE J476 and a 3/8" hose barb connection. The raw material is steel forging.

SKU: 4501-06-02-FG

Supplier Part Number (MPN): 4501-06-02-FG

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/8 in
Connection Type
Barbed, MNPT
Connection Type 1
SAE Beaded Hose Barbed
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1231-2, SAE J476
Dimensions
1.81 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1/2 in
l2 Dimensions
0.9 in
l Dimensions
1.81 in
Material
Steel
Material Construction
AISI C1045 Steel
Series
4501-FG Series
Thread 2 Drill Dimensions
0.188 in
Thread B1 Drill Dimensions
0.295 in
Thread Size
1/8-27
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
10HB-08MP 90 DEG Elbow

4501-10-08-FG

5/8 in

1/2 in

1/2-14

16HB-12MP 90 DEG Elbow

4501-16-12-FG

1 in

3/4 in

3/4-14

Steel Adapter, 1/2-14 Male NPT To 0.75 Hose Barb, 90 deg Elbow

4501-12-08 Steel Male NPT To Barb 90 Elbow

3/4 in

1/2 in

1/2-14

08HB-08MP 90 DEG Elbow

4501-08-08-FG

1/2 in

1/2 in

1/2-14

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1.50 Hose Barb, 90 deg Elbow

4501-24-24-FG Steel Male NPT To Barb 90 Elbow

1-1/2 in

1-1/2 in

1-1/2-11-1/2

08 HB - 06 MP 90 Elbow Forged

4501-08-06-FG

1/2 in

3/8 in

3/8-18

20HB-20MP 90 DEG Elbow

4501-20-20-FG

1-1/4 in

1-1/4 in

1-1/4-11-1/2

04HB-02MP 90 ELB

4501-04-02

1/4 in

1/8 in

1/8-27

06HB-04MP 90 DEG Elbow

4501-06-04-FG

3/8 in

1/4 in

1/4-18

4501-10-06-FG

4501-10-06-FG

5/8 in

3/8 in

3/8-18

12HB-12MP 90 DEG Elbow

4501-12-12-FG

3/4 in

3/4 in

3/4-14

12HB-16MP 90 ELB

4501-12-16

3/4 in

1 in

1-11-1/2

16HB-16MP 90 DEG Elbow

4501-16-16-FG

1 in

1 in

1-11-1/2

20HB-16MP 90 DEG

4501-20-16

1-1/4 in

1 in

1-11-1/2

24HB-20MP 90 ELB

4501-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2

Product Questions & Answers (1)

Question by: Lee R on Feb 22, 2026, 9:57 AM
Will this fitting hold up okay if I'm using it for hydraulics on farm equipment?
Answer by: Customer Support on Feb 23, 2026, 4:16 PM
This steel forging is plenty durable for hydraulic applications. It's made from a strong steel forging.
