06HB-04MP 90 DEG Elbow

Description & Features

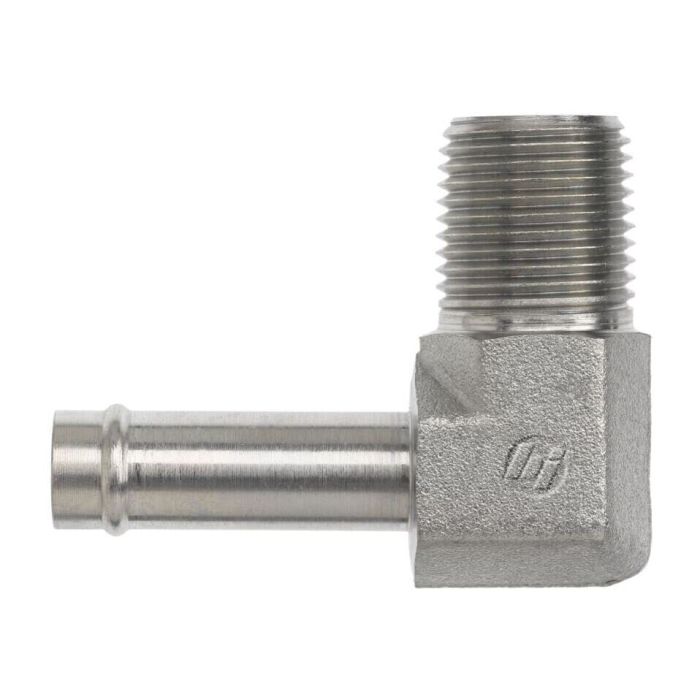

This 90-degree elbow features a 3/8" hose barb connection and a 1/4-18 male NPTF thread, manufactured from steel forging for durability. The 06HB-04MP 90 DEG Elbow is part of the 4501-FG series, designed to meet SAE J476 specifications for thread B2.

The overall length measures 1.870 inches (L) and 1.090 inches (L2 Mm). The thread B1 drill size is 0.295 inches, and the thread B2 drill size is 0.188 inches.

SKU: 4501-06-04-FG

Supplier Part Number (MPN): 4501-06-04-FG

Alternate Part Numbers: 4501-06-04, AFF1162-0406S

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 4501-06-04-FG	Product Weight 0.00 lbs

Product Questions & Answers (3)

Question by: Kurt G on Jul 12, 2025, 7:47 PM

Reckon this'll hold up okay for connecting a hydraulic line at a 90-degree angle?

Answer by: Customer Support on Jul 14, 2025, 6:02 AM

This elbow fitting is made from forged steel, so it's plenty durable for hydraulic applications requiring a 90-degree turn.

Question by: Tommy P on Apr 17, 2025, 4:59 PM

trying to swap out an old elbow, is this one the 3/8 hose barb to 1/4-18 male NPTF deal?

Answer by: Customer Support on Apr 18, 2025, 9:59 PM

Match the ends up to a 3/8 inch hose barb on one side and a 1/4-18 male NPTF thread on the other. It is a 90 degree elbow, so it turns the hose run at a right angle.

Question by: Lynn B on Jan 24, 2026, 2:12 PM

what's the thread size on the pipe end of this elbow? got a 1/4 inch line i'm trying to tie into

Answer by: Customer Support on Jan 26, 2026, 9:10 AM

The pipe end is a 1/4-18 male NPTF thread, built to SAE J476 spec. That'll mate up with a standard 1/4 inch female NPT port without any adapters in between.
