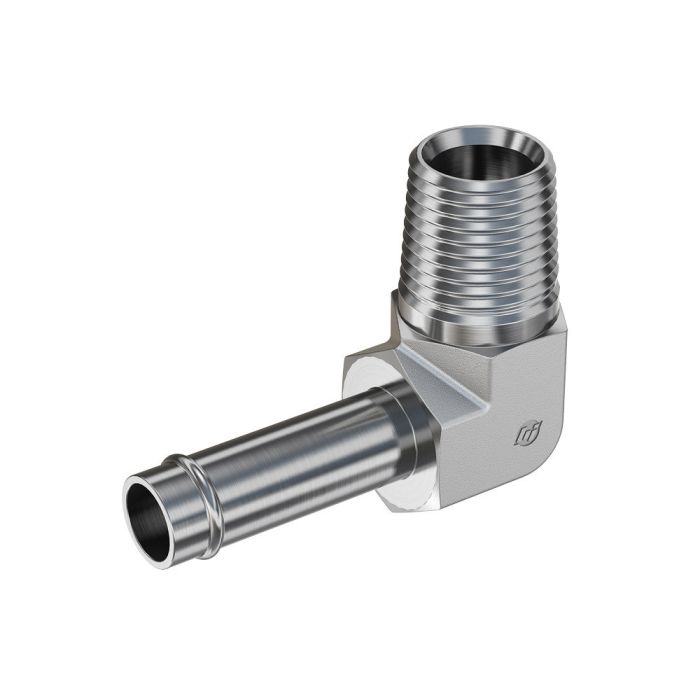

main product photo

08 HB - 06 MP 90 Elbow Forged

Ask A Question

Description & Features

Crafted with precision this elbow fitting is designed for high-stress industrial environments where reliability and durability are essential. The steel forging material ensures a robust structure providing long-lasting performance in demanding applications.

Featuring a hose barb with a tube outer diameter of 1/2 inch on one end and a male NPTF thread measuring 3/8-18 on the other it conforms to SAE J476 specifications for enhanced compatibility and ease of integration. The overall length of the fitting is 2.040 mm while the secondary length is 1.220 mm allowing for efficient space utilization in compact setups.

Supplier Part Number: 4501-08-06-FG

Specifications

Brand
BRENNAN
a Dimensions
1.22 in
b Dimensions
1.91 in
c Dimensions
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Barbed, MNPT
Connection Type 1
SAE Beaded Hose Barbed
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1231-2, SAE J476
Dimensions
2.04 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.81 in
l2 Dimensions
1.22 in
l Dimensions
2.04 in
Material
Steel
Material Construction
AISI C1045 Steel
Series
4501-FG Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (2)

Question by: Donna F on Mar 21, 2026, 5:36 PM
fitting's got a hose barb on one end and male NPTF on the other -- that right? just want to make sure before i order
Answer by: Customer Support on Mar 23, 2026, 11:42 AM
You got it. One end is a hose barb sized for 1/2 inch tube outer diameter, and the other end is a 3/8-18 male NPTF thread. The NPTF side meets SAE J476 spec, so it'll integrate cleanly with standard NPTF ports without a lot of fuss.
Question by: Carl H on May 7, 2025, 10:06 AM
So this is a forged steel elbow... how long is each side of it?
Answer by: Customer Support on May 9, 2025, 6:09 AM
This elbow fitting has an overall length of 2.040 mm, with the secondary length being 1.220 mm.
