4501-10-06-FG

Description & Features

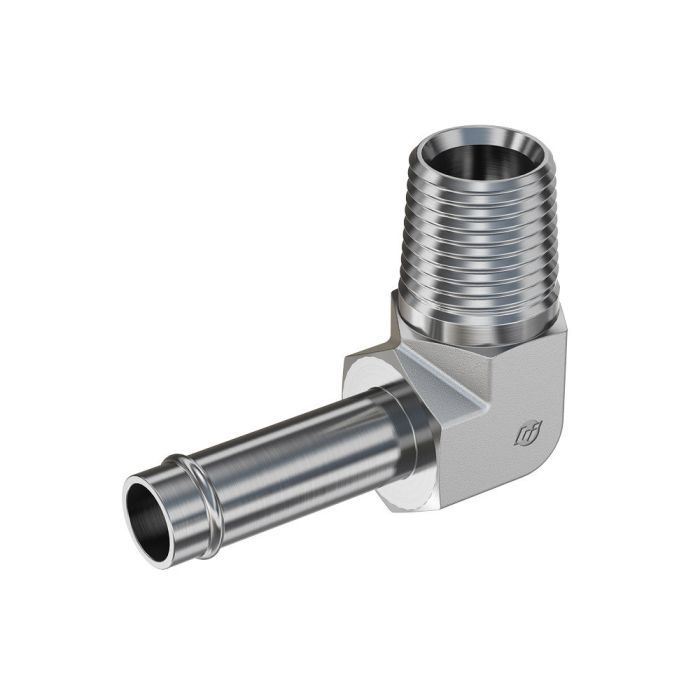

This Brennan Industries hose barb is constructed from zinc plated steel for durability and corrosion resistance.

Featuring a 90-degree angle and male end, the 4501-10-06-FG is suitable for a variety of hydraulic applications.

SKU: 4501-10-06

Supplier Part Number (MPN): 4501-10-06-FG

Brand BRENNAN	Connection Size 1 5/8 in	Connection Size 2 3/8 in	Connection Type Barbed, MNPT	Connection Type 1 SAE Beaded Hose Barbed	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J1231-2, SAE J476	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 0.94 in	Material Steel	Material Construction AISI C1045 Steel	Series 4501-FG Series	Thread Size 3/8-18

Question by: Cindy J on Jul 14, 2025, 6:49 AM

Is this fitting able to hold up in a hydraulic system, or is it more for lower pressure stuff?

Answer by: Customer Support on Jul 16, 2025, 6:04 AM

Built from zinc-plated steel, this Brennan hose barb fitting provides durability and resistance to corrosion in hydraulic applications.
