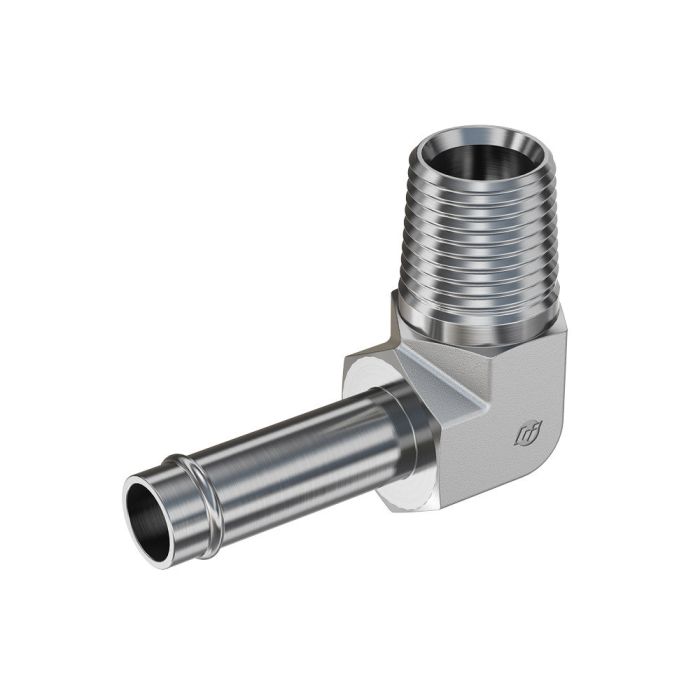

10HB-08MP 90 DEG Elbow

Description & Features

The forged steel construction ensures dependable performance for various industrial applications. With an overall length of 2.055 mm and a secondary length of 1.470 mm this part offers precision in fitting requirements. Designed by Brennan Industries Inc this elbow fitting is crafted with a 1/2-14 male NPTF thread specification as per SAE J476 standards. The elbow fits a tube with an outside diameter of 5/8 inches and features a hose barb thread type for secure connections. This fitting is part of the 4501-FG series and is ideal for maintaining essential flow in systems that require a 90 direction change. Ensure compliance with PROP-65 WARNING for California residents for safe usage.

MPN: 10HB-08MP 90 DEG Elbow

Supplier Part Number: 4501-10-08-FG

Specifications

Brand
BRENNAN
a Dimensions
1.47 in
b Dimensions
1.97 in
c Dimensions
0.63 in
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Barbed, MNPT
Connection Type 1
SAE Beaded Hose Barbed
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1231-2, SAE J476
Dimensions
2.055 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.94 in
l2 Dimensions
1.47 in
l Dimensions
2.055 in
Material
Steel
Material Construction
AISI C1045 Steel
Series
4501-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.5 in
Thread Sealant
Without Thread Sealant
Thread Size
1/2-14
Tube Outside Diameter
5/8 in
