20HB-16MP 45

Description & Features

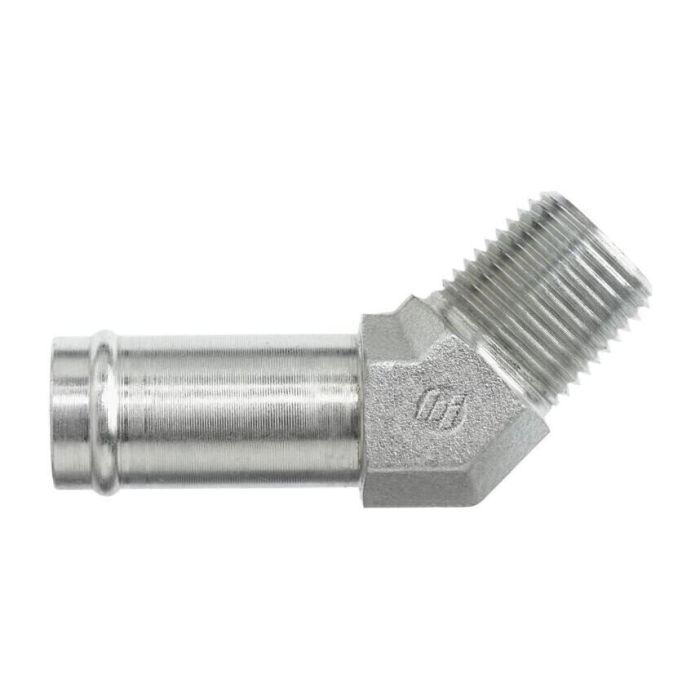

This forged steel 45° elbow features a hose barb connection with a 1-1/4" tube OD and a 1-11-1/2 Male NPTF thread, manufactured to SAE J476 standards. The 20HB-16MP 45 offers a reliable connection in hydraulic applications.

This fitting, part of the 4503-FG series, is constructed from high-quality steel forging, ensuring durability and performance.

SKU: 4503-20-16-FG

Supplier Part Number (MPN): 4503-20-16-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 4503-20-16-FG	Product Weight 0.44 lbs

Product Questions & Answers (1)

Question by: Hugh B on May 29, 2025, 1:09 PM

trying to swap out an elbow on a hose line, is this one the 1-1/4 tube OD hose barb to a 1-11-1/2 male NPTF, 45 degree?

Answer by: Customer Support on May 31, 2025, 6:54 AM

It matches a hose barb on one end sized for 1-1/4 inch tube OD, and a 1-11-1/2 male NPTF thread on the other end, built as a 45 degree elbow.
