24HB-24MP 45 ELB

Ask A Question

Description & Features

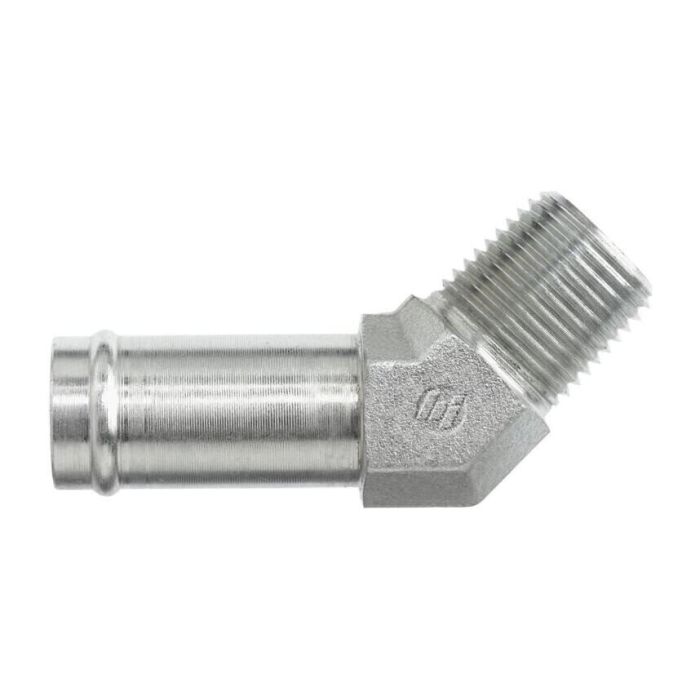

The 24HB-24MP 45 ELB by Brennan Industries Inc is a forged steel adapter designed for industrial applications. Engineered with a hose barb on one end and a male NPTF thread on the other this elbow adapter ensures robust and secure connections.

It features overall lengths of 2.146 mm and 1.770 mm making it suitable for setups requiring specific dimensional compliance. The adapter is compliant with SAE J476 standards ensuring reliability in demanding environments.

This product part of the 4503-FG series is designed to accommodate tube outer diameters of 1-1/2 Inch and threads sizes of 1-1/2-11-1/2. Made from steel forging it offers long-lasting durability and superior performance under pressure.

California Residents: PROP-65 WARNING

MPN: 4503-24-24-FG

Supplier Part Number: 4503-24-24-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Barbed, MNPT
Connection Type 1
SAE Beaded Hose Barbed
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1231-2, SAE J476
Dimensions
2.146 in L
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
2 in
l2 Dimensions
1.77 in
l Dimensions
2.146 in
Material
Steel
Material Construction
AISI C1045 Steel
Series
4503-FG Series
Thread 2 Drill Dimensions
1.5 in
Thread B1 Drill Dimensions
1.343 in
Thread Size
1-1/2-11-1/2
Tube Outside Diameter
1-1/2 in
