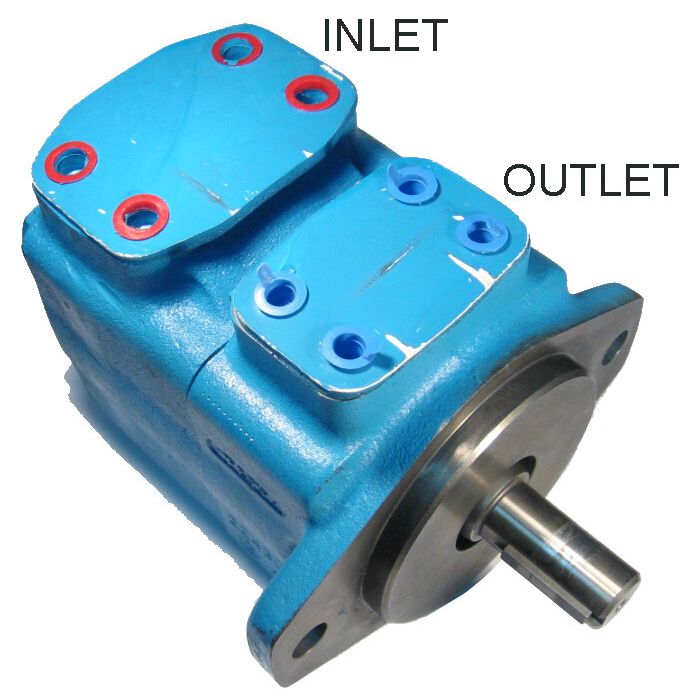

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

Description & Features

Optimize your hydraulic systems with the Eaton Vickers 45VQ Series Vane Pump, designed for applications requiring reliability and efficiency. This robust pump features a 60 ring size and a 1-1/2 inch straight keyed shaft, ensuring precise power transmission. With a maximum pressure of 2500 PSI and a rated flow of 91.94 GPM, it supports demanding industrial environments. The pump's construction includes a 2-bolt SAE C mounting flange and SAE 4-bolt flange ports, with a 3-inch inlet and 1-1/2 inch outlet, facilitating secure and efficient connections.

The 45VQ Series Vane Pump operates with a clockwise rotation and a port location set at 90 degrees clockwise from the outlet, making it versatile and adaptable for various configurations. Its speed rating of 2200 RPM ensures optimal performance in high-demand scenarios. Trust in the Eaton Vickers brand to deliver durability and performance in your hydraulic applications.

SKU: 416458-2

Supplier Part Number (MPN): 416458-2

Specifications

Displacement 11.80	Displacement 11.8	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Maximum Pressure 2500	Maximum Pressure 2500	Port Location 90 deg CW from Outlet	Rated Flow 91.94	Rated Flow 91.94	Ring Size 60	Ring Size 60	Rotation CW	Shaft 1-1/2 Straight Keyed	Shaft 1-1/2 Straight Keyed	Speed Rating 2200 RPM	Speed Rating 2200 RPM	Supplier Part Number 416458-2	Alternate Part Numbers Alternate Part Number MINO-00900X00827	Product Weight 75.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
45VQ60A86B20 45VQ Series Vane Pump	416458-2	1-1/2 Straight Keyed	11.8	60	91.94	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ60A86C20 45VQ Series Vane Pump	416458-3	1-1/2 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CW	2500	2200 RPM
45VQ60A86D20 45VQ Series Vane Pump	416458-4	1-1/2 Straight Keyed	11.8	60	91.94	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ60A86A20-L 45VQ Series Vane Pump	416458-5	1-1/2 Straight Keyed	11.8	60	91.94	Opposite Outlet	CCW	2500	2200 RPM
45VQ60A86C20-L 45VQ Series Vane Pump	416458-7	1-1/2 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A86D20-L 45VQ Series Vane Pump	416458-8	1-1/2 Straight Keyed	11.8	60	91.94	90 deg CCW from Outlet	CCW	2500	2200 RPM
45VQ42A11B20 45VQ Series Vane Pump	420616-2	14 Tooth SAE D Splined	8.46	42	65.92	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ42A11C20 45VQ Series Vane Pump	420616-3	14 Tooth SAE D Splined	8.46	42	65.92	in-Line with Outlet	CW	2500	2200 RPM
45VQ42A11D20 45VQ Series Vane Pump	420616-4	14 Tooth SAE D Splined	8.46	42	65.92	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ42A11A20-L 45VQ Series Vane Pump	420616-5	14 Tooth SAE D Splined	8.46	42	65.92	Opposite Outlet	CCW	2500	2200 RPM
45VQ42A11C20-L 45VQ Series Vane Pump	420616-7	14 Tooth SAE D Splined	8.46	42	65.92	in-Line with Outlet	CCW	2500	2200 RPM
45VQ50A11B20 45VQ Series Vane Pump	420617-2	14 Tooth SAE D Splined	9.9	50	77.14	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ50A11C20 45VQ Series Vane Pump	420617-3	14 Tooth SAE D Splined	9.9	50	77.14	in-Line with Outlet	CW	2500	2200 RPM
45VQ50A11D20 45VQ Series Vane Pump	420617-4	14 Tooth SAE D Splined	9.9	50	77.14	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ50A11A20-L 45VQ Series Vane Pump	420617-5	14 Tooth SAE D Splined	9.9	50	77.14	Opposite Outlet	CCW	2500	2200 RPM
45VQ50A11B20-L 45VQ Series Vane Pump	420617-6	14 Tooth SAE D Splined	9.9	50	77.14	90 deg CW from Outlet	CCW	2500	2200 RPM
45VQ50A11C20-L 45VQ Series Vane Pump	420617-7	14 Tooth SAE D Splined	9.9	50	77.14	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A11B20 45VQ Series Vane Pump	420618-2	14 Tooth SAE D Splined	11.8	60	91.94	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ60A11C20 45VQ Series Vane Pump	420618-3	14 Tooth SAE D Splined	11.8	60	91.94	in-Line with Outlet	CW	2500	2200 RPM
45VQ60A11D20 45VQ Series Vane Pump	420618-4	14 Tooth SAE D Splined	11.8	60	91.94	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ60A11A20-L 45VQ Series Vane Pump	420618-5	14 Tooth SAE D Splined	11.8	60	91.94	Opposite Outlet	CCW	2500	2200 RPM
45VQ60A11B20-L 45VQ Series Vane Pump	420618-6	14 Tooth SAE D Splined	11.8	60	91.94	90 deg CW from Outlet	CCW	2500	2200 RPM
45VQ60A11C20-L 45VQ Series Vane Pump	420618-7	14 Tooth SAE D Splined	11.8	60	91.94	in-Line with Outlet	CCW	2500	2200 RPM
45VQ42A86B20 45VQ Series Vane Pump	421965-2	1-1/2 Straight Keyed	8.46	42	65.92	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ42A86C20 45VQ Series Vane Pump	421965-3	1-1/2 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CW	2500	2200 RPM
45VQ42A86D20 45VQ Series Vane Pump	421965-4	1-1/2 Straight Keyed	8.46	42	65.92	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ42A86A20-L 45VQ Series Vane Pump	421965-5	1-1/2 Straight Keyed	8.46	42	65.92	Opposite Outlet	CCW	2500	2200 RPM
45VQ42A86C20-L 45VQ Series Vane Pump	421965-7	1-1/2 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CCW	2500	2200 RPM
45VQ50A1B20 45VQ Series Vane Pump	421966-2	1-1/4 Straight Keyed	9.9	50	77.14	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ50A1C20 45VQ Series Vane Pump	421966-3	1-1/4 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CW	2500	2200 RPM
45VQ50A1D20 45VQ Series Vane Pump	421966-4	1-1/4 Straight Keyed	9.9	50	77.14	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ50A1A20-L 45VQ Series Vane Pump	421966-5	1-1/4 Straight Keyed	9.9	50	77.14	Opposite Outlet	CCW	2500	2200 RPM
45VQ50A1C20-L 45VQ Series Vane Pump	421966-7	1-1/4 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A1B20 45VQ Series Vane Pump	421967-2	1-1/4 Straight Keyed	11.8	60	91.94	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ60A1C20 45VQ Series Vane Pump	421967-3	1-1/4 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CW	2500	2200 RPM
45VQ60A1D20 45VQ Series Vane Pump	421967-4	1-1/4 Straight Keyed	11.8	60	91.94	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ60A1A20-L 45VQ Series Vane Pump	421967-5	1-1/4 Straight Keyed	11.8	60	91.94	Opposite Outlet	CCW	2500	2200 RPM
45VQ60A1C20-L 45VQ Series Vane Pump	421967-7	1-1/4 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CCW	2500	2200 RPM
45VQ42A1B20 45VQ Series Vane Pump	432647-2	1-1/4 Straight Keyed	8.46	42	65.92	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ42A1C20 45VQ Series Vane Pump	432647-3	1-1/4 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CW	2500	2200 RPM
45VQ42A1D20 45VQ Series Vane Pump	432647-4	1-1/4 Straight Keyed	8.46	42	65.92	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ42A1A20-L 45VQ Series Vane Pump	432647-5	1-1/4 Straight Keyed	8.46	42	65.92	Opposite Outlet	CCW	2500	2200 RPM
45VQ42A1C20-L 45VQ Series Vane Pump	432647-7	1-1/4 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CCW	2500	2200 RPM
45VQ50A86B20 45VQ Series Vane Pump	433252-2	1-1/2 Straight Keyed	9.9	50	77.14	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ50A86C20 45VQ Series Vane Pump	433252-3	1-1/2 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CW	2500	2200 RPM
45VQ50A86D20 45VQ Series Vane Pump	433252-4	1-1/2 Straight Keyed	9.9	50	77.14	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ50A86A20-L 45VQ Series Vane Pump	433252-5	1-1/2 Straight Keyed	9.9	50	77.14	Opposite Outlet	CCW	2500	2200 RPM
45VQ50A86C20-L 45VQ Series Vane Pump	433252-7	1-1/2 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CCW	2500	2200 RPM
45VQ57A1B20 45VQ Series Vane Pump	629213-2	1-1/4 Straight Keyed	10.97	57	85.48	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ57A1C20 45VQ Series Vane Pump	629213-3	1-1/4 Straight Keyed	10.97	57	85.48	in-Line with Outlet	CW	2500	2200 RPM
45VQ57A1D20 45VQ Series Vane Pump	629213-4	1-1/4 Straight Keyed	10.97	57	85.48	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ57A1A20-L 45VQ Series Vane Pump	629213-5	1-1/4 Straight Keyed	10.97	57	85.48	Opposite Outlet	CCW	2500	2200 RPM
45VQ57A1C20-L 45VQ Series Vane Pump	629213-7	1-1/4 Straight Keyed	10.97	57	85.48	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A86A20 45VQ Series Vane Pump	416458-1	1-1/2 Straight Keyed	11.8	60	91.94	Opposite Outlet	CW	2500	2200 RPM
45VQ42A11A20 45VQ Series Vane Pump	420616-1	14 Tooth SAE D Splined	8.46	42	65.92	Opposite Outlet	CW	2500	2200 RPM
45VQ50A11A20 45VQ Series Vane Pump	420617-1	14 Tooth SAE D Splined	9.9	50	77.14	Opposite Outlet	CW	2500	2200 RPM
45VQ60A11A20 45VQ Series Vane Pump	420618-1	14 Tooth SAE D Splined	11.8	60	91.94	Opposite Outlet	CW	2500	2200 RPM
45VQ42A86A20 45VQ Series Vane Pump	421965-1	1-1/2 Straight Keyed	8.46	42	65.92	Opposite Outlet	CW	2500	2200 RPM
45VQ50A1A20 45VQ Series Vane Pump	421966-1	1-1/4 Straight Keyed	9.9	50	77.14	Opposite Outlet	CW	2500	2200 RPM
45VQ60A1A20 45VQ Series Vane Pump	421967-1	1-1/4 Straight Keyed	11.8	60	91.94	Opposite Outlet	CW	2500	2200 RPM
45VQ42A1A20 45VQ Series Vane Pump	432647-1	1-1/4 Straight Keyed	8.46	42	65.92	Opposite Outlet	CW	2500	2200 RPM
45VQ50A86A20 45VQ Series Vane Pump	433252-1	1-1/2 Straight Keyed	9.9	50	77.14	Opposite Outlet	CW	2500	2200 RPM
45VQ57A1A20 45VQ Series Vane Pump	629213-1	1-1/4 Straight Keyed	10.97	57	85.48	Opposite Outlet	CW	2500	2200 RPM

Product Questions & Answers (3)

Question by: Howard R on Sep 11, 2025, 2:39 PM

got a 45VQ60A86B20 pump on the machine now. is this the same one, or am I about to order the wrong deal

Answer by: Customer Support on Sep 12, 2025, 7:49 PM

Match-up wise, the model number shown is 45VQ60A86B20, which corresponds to a 45VQ series single vane pump with 60 ring size, 11.8 displacement, clockwise rotation, and a 1-1/2 straight keyed shaft. It also calls out a 2-bolt SAE C mounting flange and SAE 4-bolt flange ports with a 3 inch inlet and 1-1/2 inch outlet.

Question by: Jimmy B on Dec 27, 2025, 12:57 PM

pump puts out around 92 GPM at rated speed, that right? trying to figure out if it'll keep up with a high-demand circuit we got running continuous cycles

Answer by: Customer Support on Dec 28, 2025, 6:20 PM

At 2200 RPM, the rated flow on this unit comes in at 91.94 GPM, so your math is close enough to work with for planning purposes. Whether that flow rate keeps pace with your circuit depends on how your system is sized, but the number itself is solid and well within what this pump is built to deliver at that speed.

Question by: Rhonda R on Jan 8, 2026, 8:07 AM

Just wanna make sure...this will bolt right up to a standard SAE C 2-bolt flange, right?

Answer by: Customer Support on Jan 9, 2026, 9:19 AM

Correct, this 45VQ series pump features a 2-bolt SAE C mounting flange for straightforward installation.
