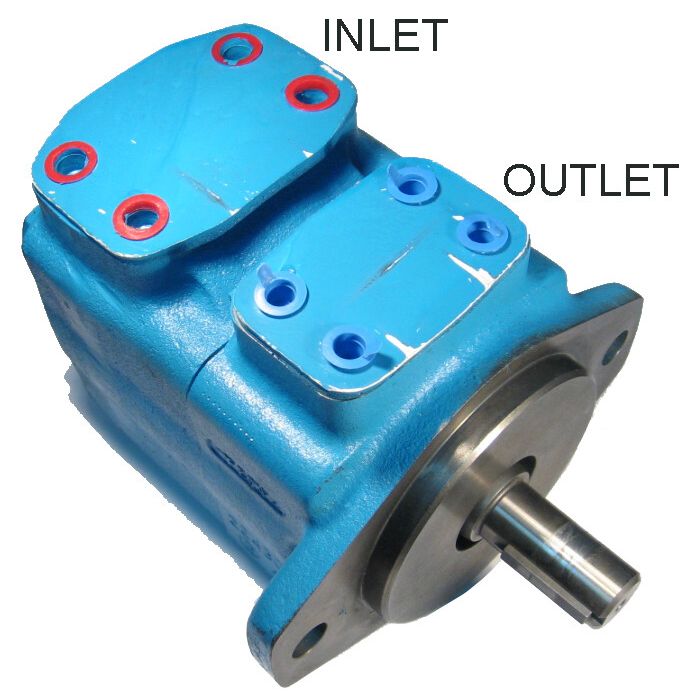

main product photo

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

Ask A Question

Description & Features

This Eaton Vickers 45VQ Series Vane Pump is designed for high-pressure, high-speed applications, offering long operating life and outstanding volumetric efficiency. With a 42 ring size and clockwise rotation, this vane pump is suitable for demanding uses in oil and gas, metal cutting, dump trucks, wheel loaders, and plastic injection molding.

It features a 14 Tooth SAE D Splined shaft and a 2-Bolt SAE C mounting flange. The SAE 4-Bolt Flange ports include a 3" inlet and a 1-1/2" outlet, with the outlet located 90 degrees clockwise from the inlet. This 45VQ Series Vane Pump has a maximum pressure rating of 2500 PSI and a rated flow of 65.92 GPM at a speed rating of 2200 RPM. The seal material is Buna-N.

SKU: 420616-2

Supplier Part Number (MPN): 420616-2

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
8.46
Displacement
8.46
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
2500
Maximum Pressure
2500
Port Location
90 deg CW from Outlet
Rated Flow
65.92
Rated Flow
65.92
Ring Size
42
Ring Size
42
Rotation
CW
Seal Material
Buna-N
Series
45VQ
Shaft
14 Tooth SAE D Splined
Shaft
14 Tooth SAE D Splined
Special Features
None
Speed Rating
2200 RPM
Speed Rating
2200 RPM
Supplier Part Number
420616-2
Alternate Part Numbers
Alternate Part Number MINO-00900X55914
Product Weight
75.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ60A86B20 45VQ Series Vane Pump

416458-2

1-1/2 Straight Keyed

11.8

60

91.94

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ60A86C20 45VQ Series Vane Pump

416458-3

1-1/2 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ60A86D20 45VQ Series Vane Pump

416458-4

1-1/2 Straight Keyed

11.8

60

91.94

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ60A86A20-L 45VQ Series Vane Pump

416458-5

1-1/2 Straight Keyed

11.8

60

91.94

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ60A86C20-L 45VQ Series Vane Pump

416458-7

1-1/2 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

45VQ60A86D20-L 45VQ Series Vane Pump

416458-8

1-1/2 Straight Keyed

11.8

60

91.94

90 deg CCW from Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ42A11B20 45VQ Series Vane Pump

420616-2

14 Tooth SAE D Splined

8.46

42

65.92

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ42A11C20 45VQ Series Vane Pump

420616-3

14 Tooth SAE D Splined

8.46

42

65.92

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ42A11D20 45VQ Series Vane Pump

420616-4

14 Tooth SAE D Splined

8.46

42

65.92

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ42A11A20-L 45VQ Series Vane Pump

420616-5

14 Tooth SAE D Splined

8.46

42

65.92

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ42A11C20-L 45VQ Series Vane Pump

420616-7

14 Tooth SAE D Splined

8.46

42

65.92

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ50A11B20 45VQ Series Vane Pump

420617-2

14 Tooth SAE D Splined

9.9

50

77.14

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ50A11C20 45VQ Series Vane Pump

420617-3

14 Tooth SAE D Splined

9.9

50

77.14

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ50A11D20 45VQ Series Vane Pump

420617-4

14 Tooth SAE D Splined

9.9

50

77.14

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ50A11A20-L 45VQ Series Vane Pump

420617-5

14 Tooth SAE D Splined

9.9

50

77.14

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

45VQ50A11B20-L 45VQ Series Vane Pump

420617-6

14 Tooth SAE D Splined

9.9

50

77.14

90 deg CW from Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ50A11C20-L 45VQ Series Vane Pump

420617-7

14 Tooth SAE D Splined

9.9

50

77.14

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ60A11B20 45VQ Series Vane Pump

420618-2

14 Tooth SAE D Splined

11.8

60

91.94

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ60A11C20 45VQ Series Vane Pump

420618-3

14 Tooth SAE D Splined

11.8

60

91.94

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ60A11D20 45VQ Series Vane Pump

420618-4

14 Tooth SAE D Splined

11.8

60

91.94

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ60A11A20-L 45VQ Series Vane Pump

420618-5

14 Tooth SAE D Splined

11.8

60

91.94

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

45VQ60A11B20-L 45VQ Series Vane Pump

420618-6

14 Tooth SAE D Splined

11.8

60

91.94

90 deg CW from Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ60A11C20-L 45VQ Series Vane Pump

420618-7

14 Tooth SAE D Splined

11.8

60

91.94

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ42A86B20 45VQ Series Vane Pump

421965-2

1-1/2 Straight Keyed

8.46

42

65.92

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ42A86C20 45VQ Series Vane Pump

421965-3

1-1/2 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ42A86D20 45VQ Series Vane Pump

421965-4

1-1/2 Straight Keyed

8.46

42

65.92

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ42A86A20-L 45VQ Series Vane Pump

421965-5

1-1/2 Straight Keyed

8.46

42

65.92

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ42A86C20-L 45VQ Series Vane Pump

421965-7

1-1/2 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ50A1B20 45VQ Series Vane Pump

421966-2

1-1/4 Straight Keyed

9.9

50

77.14

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ50A1C20 45VQ Series Vane Pump

421966-3

1-1/4 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ50A1D20 45VQ Series Vane Pump

421966-4

1-1/4 Straight Keyed

9.9

50

77.14

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ50A1A20-L 45VQ Series Vane Pump

421966-5

1-1/4 Straight Keyed

9.9

50

77.14

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ50A1C20-L 45VQ Series Vane Pump

421966-7

1-1/4 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ60A1B20 45VQ Series Vane Pump

421967-2

1-1/4 Straight Keyed

11.8

60

91.94

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ60A1C20 45VQ Series Vane Pump

421967-3

1-1/4 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ60A1D20 45VQ Series Vane Pump

421967-4

1-1/4 Straight Keyed

11.8

60

91.94

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ60A1A20-L 45VQ Series Vane Pump

421967-5

1-1/4 Straight Keyed

11.8

60

91.94

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ60A1C20-L 45VQ Series Vane Pump

421967-7

1-1/4 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ42A1B20 45VQ Series Vane Pump

432647-2

1-1/4 Straight Keyed

8.46

42

65.92

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ42A1C20 45VQ Series Vane Pump

432647-3

1-1/4 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ42A1D20 45VQ Series Vane Pump

432647-4

1-1/4 Straight Keyed

8.46

42

65.92

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ42A1A20-L 45VQ Series Vane Pump

432647-5

1-1/4 Straight Keyed

8.46

42

65.92

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ42A1C20-L 45VQ Series Vane Pump

432647-7

1-1/4 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ50A86B20 45VQ Series Vane Pump

433252-2

1-1/2 Straight Keyed

9.9

50

77.14

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ50A86C20 45VQ Series Vane Pump

433252-3

1-1/2 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ50A86D20 45VQ Series Vane Pump

433252-4

1-1/2 Straight Keyed

9.9

50

77.14

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ50A86A20-L 45VQ Series Vane Pump

433252-5

1-1/2 Straight Keyed

9.9

50

77.14

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ50A86C20-L 45VQ Series Vane Pump

433252-7

1-1/2 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ57A1B20 45VQ Series Vane Pump

629213-2

1-1/4 Straight Keyed

10.97

57

85.48

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ57A1C20 45VQ Series Vane Pump

629213-3

1-1/4 Straight Keyed

10.97

57

85.48

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ57A1D20 45VQ Series Vane Pump

629213-4

1-1/4 Straight Keyed

10.97

57

85.48

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ57A1A20-L 45VQ Series Vane Pump

629213-5

1-1/4 Straight Keyed

10.97

57

85.48

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ57A1C20-L 45VQ Series Vane Pump

629213-7

1-1/4 Straight Keyed

10.97

57

85.48

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ60A86A20 45VQ Series Vane Pump

416458-1

1-1/2 Straight Keyed

11.8

60

91.94

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CW Rotation

45VQ42A11A20 45VQ Series Vane Pump

420616-1

14 Tooth SAE D Splined

8.46

42

65.92

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CW Rotation

45VQ50A11A20 45VQ Series Vane Pump

420617-1

14 Tooth SAE D Splined

9.9

50

77.14

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CW Rotation

45VQ60A11A20 45VQ Series Vane Pump

420618-1

14 Tooth SAE D Splined

11.8

60

91.94

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ42A86A20 45VQ Series Vane Pump

421965-1

1-1/2 Straight Keyed

8.46

42

65.92

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ50A1A20 45VQ Series Vane Pump

421966-1

1-1/4 Straight Keyed

9.9

50

77.14

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ60A1A20 45VQ Series Vane Pump

421967-1

1-1/4 Straight Keyed

11.8

60

91.94

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ42A1A20 45VQ Series Vane Pump

432647-1

1-1/4 Straight Keyed

8.46

42

65.92

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ50A86A20 45VQ Series Vane Pump

433252-1

1-1/2 Straight Keyed

9.9

50

77.14

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ57A1A20 45VQ Series Vane Pump

629213-1

1-1/4 Straight Keyed

10.97

57

85.48

Opposite Outlet

CW

2500

2200 RPM

Product Questions & Answers (2)

Question by: Randy M on Mar 27, 2025, 6:20 AM
got a 45VQ pump on a dump truck, does this one match up on rotation and shaft or am i gonna be fighting it
Answer by: Customer Support on Mar 29, 2025, 6:30 AM
The key callouts on this model are clockwise rotation and a 14 tooth SAE D splined shaft. It also uses a 2 bolt SAE C mounting flange, with SAE 4 bolt flange ports sized 3 inch inlet and 1-1/2 inch outlet, so those are the other main match points to line up.
Question by: Rex R on Sep 12, 2025, 9:23 PM
What kind of applications is this pump typically used in?
Answer by: Customer Support on Sep 14, 2025, 6:16 AM
This 45VQ series vane pump is often used in oil and gas, metal cutting, dump trucks, wheel loaders, and plastic injection molding applications.
