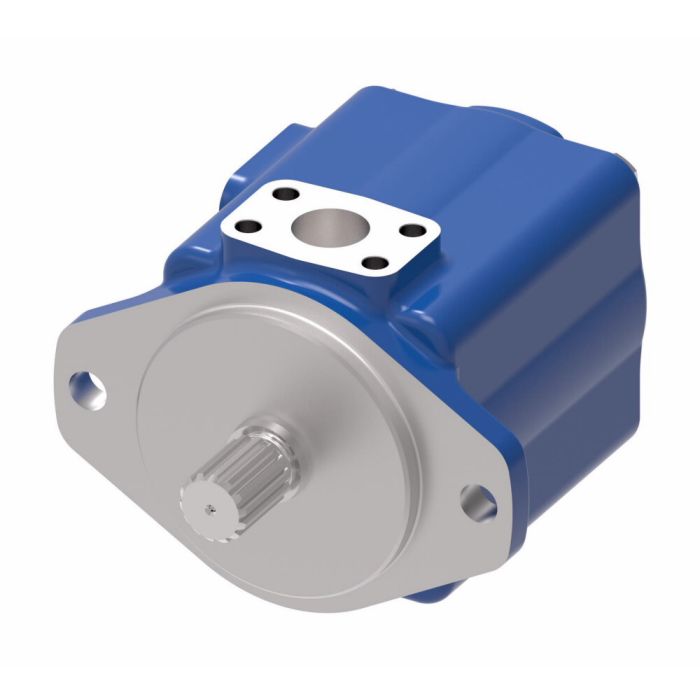

main product photo

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CW Rotation

Ask A Question

Description & Features

Designed for demanding conditions, the Eaton Vickers 45VQ Series Vane Pump is ideal for high-pressure, high-speed applications such as oil and gas, metal cutting, and plastic injection molding. Featuring a sturdy 14 tooth SAE D splined shaft and a 60 ring size, this pump delivers outstanding volumetric efficiency and long-lasting performance. The pump's clockwise rotation and inline outlet configuration ensure seamless integration into existing systems. With a maximum pressure rating of 2500 PSI and a speed rating of 2200 RPM, this vane pump is built to handle rigorous industrial environments.

SKU: 420618-3

Supplier Part Number (MPN): 420618-3

Alternate Part Numbers: C1EH26

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
11.80
Displacement
11.8
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
2500
Maximum Pressure
2500
Port Location
in-Line with Outlet
Rated Flow
91.94
Rated Flow
91.94
Ring Size
60
Ring Size
60
Rotation
CW
Seal Material
Buna-N
Series
45VQ
Shaft
14 Tooth SAE D Splined
Shaft
14 Tooth SAE D Splined
Special Features
None
Speed Rating
2200 RPM
Speed Rating
2200 RPM
Supplier Part Number
420618-3
Alternate Part Numbers
Alternate Part Number C1EH26, Alternate Part Number MINO-00900H06952
Product Weight
75.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ60A86B20 45VQ Series Vane Pump

416458-2

1-1/2 Straight Keyed

11.8

60

91.94

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ60A86C20 45VQ Series Vane Pump

416458-3

1-1/2 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ60A86D20 45VQ Series Vane Pump

416458-4

1-1/2 Straight Keyed

11.8

60

91.94

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ60A86A20-L 45VQ Series Vane Pump

416458-5

1-1/2 Straight Keyed

11.8

60

91.94

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ60A86C20-L 45VQ Series Vane Pump

416458-7

1-1/2 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

45VQ60A86D20-L 45VQ Series Vane Pump

416458-8

1-1/2 Straight Keyed

11.8

60

91.94

90 deg CCW from Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ42A11B20 45VQ Series Vane Pump

420616-2

14 Tooth SAE D Splined

8.46

42

65.92

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ42A11C20 45VQ Series Vane Pump

420616-3

14 Tooth SAE D Splined

8.46

42

65.92

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ42A11D20 45VQ Series Vane Pump

420616-4

14 Tooth SAE D Splined

8.46

42

65.92

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ42A11A20-L 45VQ Series Vane Pump

420616-5

14 Tooth SAE D Splined

8.46

42

65.92

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ42A11C20-L 45VQ Series Vane Pump

420616-7

14 Tooth SAE D Splined

8.46

42

65.92

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ50A11B20 45VQ Series Vane Pump

420617-2

14 Tooth SAE D Splined

9.9

50

77.14

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ50A11C20 45VQ Series Vane Pump

420617-3

14 Tooth SAE D Splined

9.9

50

77.14

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ50A11D20 45VQ Series Vane Pump

420617-4

14 Tooth SAE D Splined

9.9

50

77.14

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ50A11A20-L 45VQ Series Vane Pump

420617-5

14 Tooth SAE D Splined

9.9

50

77.14

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

45VQ50A11B20-L 45VQ Series Vane Pump

420617-6

14 Tooth SAE D Splined

9.9

50

77.14

90 deg CW from Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ50A11C20-L 45VQ Series Vane Pump

420617-7

14 Tooth SAE D Splined

9.9

50

77.14

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ60A11B20 45VQ Series Vane Pump

420618-2

14 Tooth SAE D Splined

11.8

60

91.94

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ60A11C20 45VQ Series Vane Pump

420618-3

14 Tooth SAE D Splined

11.8

60

91.94

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ60A11D20 45VQ Series Vane Pump

420618-4

14 Tooth SAE D Splined

11.8

60

91.94

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ60A11A20-L 45VQ Series Vane Pump

420618-5

14 Tooth SAE D Splined

11.8

60

91.94

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

45VQ60A11B20-L 45VQ Series Vane Pump

420618-6

14 Tooth SAE D Splined

11.8

60

91.94

90 deg CW from Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ60A11C20-L 45VQ Series Vane Pump

420618-7

14 Tooth SAE D Splined

11.8

60

91.94

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ42A86B20 45VQ Series Vane Pump

421965-2

1-1/2 Straight Keyed

8.46

42

65.92

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ42A86C20 45VQ Series Vane Pump

421965-3

1-1/2 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ42A86D20 45VQ Series Vane Pump

421965-4

1-1/2 Straight Keyed

8.46

42

65.92

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ42A86A20-L 45VQ Series Vane Pump

421965-5

1-1/2 Straight Keyed

8.46

42

65.92

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ42A86C20-L 45VQ Series Vane Pump

421965-7

1-1/2 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ50A1B20 45VQ Series Vane Pump

421966-2

1-1/4 Straight Keyed

9.9

50

77.14

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ50A1C20 45VQ Series Vane Pump

421966-3

1-1/4 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ50A1D20 45VQ Series Vane Pump

421966-4

1-1/4 Straight Keyed

9.9

50

77.14

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ50A1A20-L 45VQ Series Vane Pump

421966-5

1-1/4 Straight Keyed

9.9

50

77.14

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ50A1C20-L 45VQ Series Vane Pump

421966-7

1-1/4 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ60A1B20 45VQ Series Vane Pump

421967-2

1-1/4 Straight Keyed

11.8

60

91.94

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ60A1C20 45VQ Series Vane Pump

421967-3

1-1/4 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ60A1D20 45VQ Series Vane Pump

421967-4

1-1/4 Straight Keyed

11.8

60

91.94

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ60A1A20-L 45VQ Series Vane Pump

421967-5

1-1/4 Straight Keyed

11.8

60

91.94

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ60A1C20-L 45VQ Series Vane Pump

421967-7

1-1/4 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ42A1B20 45VQ Series Vane Pump

432647-2

1-1/4 Straight Keyed

8.46

42

65.92

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ42A1C20 45VQ Series Vane Pump

432647-3

1-1/4 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ42A1D20 45VQ Series Vane Pump

432647-4

1-1/4 Straight Keyed

8.46

42

65.92

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ42A1A20-L 45VQ Series Vane Pump

432647-5

1-1/4 Straight Keyed

8.46

42

65.92

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ42A1C20-L 45VQ Series Vane Pump

432647-7

1-1/4 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ50A86B20 45VQ Series Vane Pump

433252-2

1-1/2 Straight Keyed

9.9

50

77.14

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ50A86C20 45VQ Series Vane Pump

433252-3

1-1/2 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ50A86D20 45VQ Series Vane Pump

433252-4

1-1/2 Straight Keyed

9.9

50

77.14

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ50A86A20-L 45VQ Series Vane Pump

433252-5

1-1/2 Straight Keyed

9.9

50

77.14

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ50A86C20-L 45VQ Series Vane Pump

433252-7

1-1/2 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ57A1B20 45VQ Series Vane Pump

629213-2

1-1/4 Straight Keyed

10.97

57

85.48

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ57A1C20 45VQ Series Vane Pump

629213-3

1-1/4 Straight Keyed

10.97

57

85.48

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ57A1D20 45VQ Series Vane Pump

629213-4

1-1/4 Straight Keyed

10.97

57

85.48

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ57A1A20-L 45VQ Series Vane Pump

629213-5

1-1/4 Straight Keyed

10.97

57

85.48

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ57A1C20-L 45VQ Series Vane Pump

629213-7

1-1/4 Straight Keyed

10.97

57

85.48

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ60A86A20 45VQ Series Vane Pump

416458-1

1-1/2 Straight Keyed

11.8

60

91.94

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CW Rotation

45VQ42A11A20 45VQ Series Vane Pump

420616-1

14 Tooth SAE D Splined

8.46

42

65.92

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CW Rotation

45VQ50A11A20 45VQ Series Vane Pump

420617-1

14 Tooth SAE D Splined

9.9

50

77.14

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CW Rotation

45VQ60A11A20 45VQ Series Vane Pump

420618-1

14 Tooth SAE D Splined

11.8

60

91.94

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ42A86A20 45VQ Series Vane Pump

421965-1

1-1/2 Straight Keyed

8.46

42

65.92

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ50A1A20 45VQ Series Vane Pump

421966-1

1-1/4 Straight Keyed

9.9

50

77.14

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ60A1A20 45VQ Series Vane Pump

421967-1

1-1/4 Straight Keyed

11.8

60

91.94

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ42A1A20 45VQ Series Vane Pump

432647-1

1-1/4 Straight Keyed

8.46

42

65.92

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ50A86A20 45VQ Series Vane Pump

433252-1

1-1/2 Straight Keyed

9.9

50

77.14

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ57A1A20 45VQ Series Vane Pump

629213-1

1-1/4 Straight Keyed

10.97

57

85.48

Opposite Outlet

CW

2500

2200 RPM

Product Questions & Answers (2)

Question by: Brett H on Sep 16, 2025, 6:23 AM
got a setup that needs a 14 tooth SAE D spline, clockwise rotation. does this pump match that, or am i mixin things up
Answer by: Customer Support on Sep 18, 2025, 6:40 AM
It comes with a 14 tooth SAE D splined shaft and it is built for CW rotation, so those two key details line up with what you described.
Question by: Pete H on Apr 2, 2025, 11:16 AM
pump puts out 91 gallons a minute at what speed exactly, and is that at full 2500 psi or just rated conditions?
Answer by: Customer Support on Apr 3, 2025, 1:22 PM
Rated flow of 91.94 GPM is at the pump's rated speed of 2200 RPM. That figure reflects standard rated conditions, not necessarily at the full 2500 PSI maximum pressure. At peak pressure loads you'll see some volumetric drop, as you would with any vane pump, but the VQ series is known for holding efficiency well even under high-pressure demand. The 2500 PSI ceiling is the maximum continuous pressure rating for this unit.
