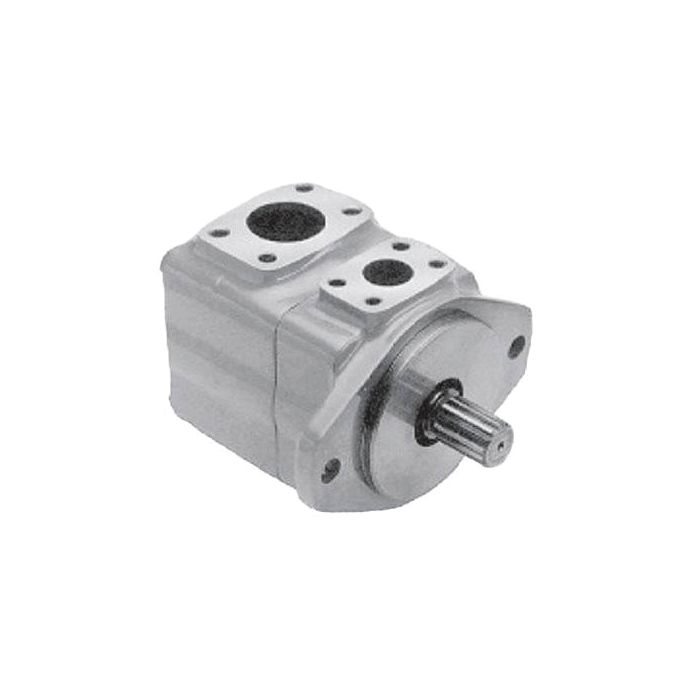

main product photo

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

Ask A Question

Description & Features

This 45VQ Series Vane Pump features a ring size of 42 and clockwise rotation, designed for demanding hydraulic applications. The pump includes a 1-1/2" straight keyed shaft for reliable power transmission.

With a rated flow of 65.92 GPM at a speed rating of 2200 RPM, this vane pump delivers consistent performance. It features a 2-bolt SAE C mounting flange and SAE 4-bolt flange ports (3" inlet and 1-1/2" outlet). It has a maximum pressure rating of 2500 PSI, and the port location is opposite the outlet.

SKU: 421965-1

Supplier Part Number (MPN): 421965-1

Alternate Part Numbers: 45VQ42-A86A20, C1HJ29

Specifications

Brand
Vickers by Danfoss
Cartridge Type
Industry-First Intra-Vane
Design Code
20
Dimensions
11.98 in L x 8.38 in W
Displacement io
8.46
Drive Shaft Type
Straight Keyed
Housing Material
Iron
Inlet Type
Flanged
Maximum Operating Pressure
2500 psi
Model
45VQ
Mounting Type
Flanged
Outlet Type
Flanged
Port Location
Opposite Outlet
Rotation Direction
Clockwise
Seal Material
Nitrile
Series
45VQ Series
Shaft Size
1-1/2 in Dia
Vane Type
Fixed Displacement
