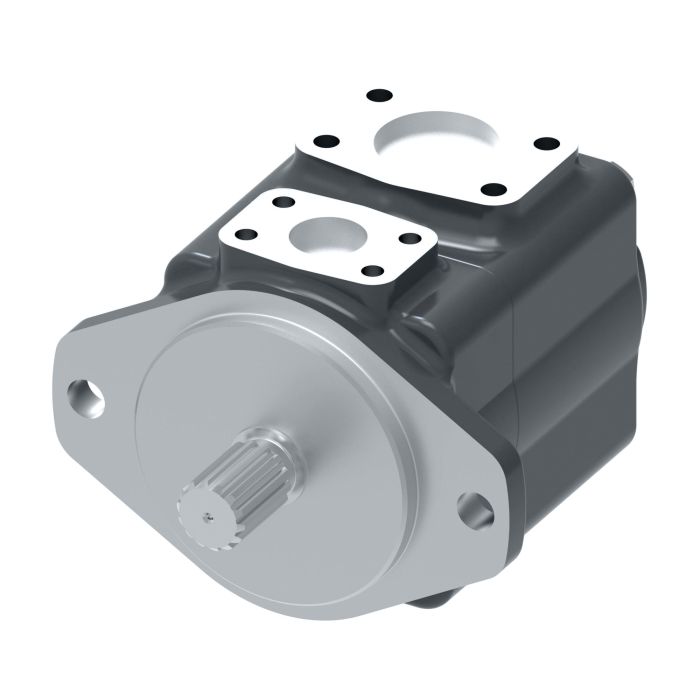

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

Description & Features

The Eaton Vickers 45VQ Series Vane Pump is built for high-pressure, high-speed applications within demanding hydraulic systems. This single vane pump is suited for applications such as plastic injection molding, metal cutting, oil and gas, wheel loaders, and dump trucks.

This 45VQ Series Vane Pump features a 42 ring size, 1-1/2 straight keyed shaft, counter-clockwise rotation, and an in-line port location relative to the outlet. It offers a rated flow of 65.92 GPM at speeds up to 2200 RPM and a maximum pressure of 2500 PSI. The pump is constructed with Buna-N seals and a 2-bolt SAE C mounting flange. SAE 4-bolt flange ports measure 3" for the inlet and 1-1/2" for the outlet. Expect longer operating life and outstanding volumetric efficiency from this series.

SKU: 421965-7

Supplier Part Number (MPN): 421965-7

Specifications

Application Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding	Displacement 8.46	Displacement 8.46	Brand Danfoss (Power Solutions II LLC)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Longer operating life\|Oustanding volumetric efficiency\|Built for high-pressure, high-speed applications	Maximum Pressure 2500	Maximum Pressure 2500	Port Location in-Line with Outlet	Rated Flow 65.92	Rated Flow 65.92	Ring Size 42	Ring Size 42	Rotation CCW	Seal Material Buna-N	Series 45VQ	Shaft 1-1/2 Straight Keyed	Shaft 1-1/2 Straight Keyed	Special Features None	Speed Rating 2200 RPM	Speed Rating 2200 RPM	Supplier Part Number 421965-7	Alternate Part Numbers Alternate Part Number MINO-00900X56270	Product Weight 75.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
45VQ60A86B20 45VQ Series Vane Pump	416458-2	1-1/2 Straight Keyed	11.8	60	91.94	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ60A86C20 45VQ Series Vane Pump	416458-3	1-1/2 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CW	2500	2200 RPM
45VQ60A86D20 45VQ Series Vane Pump	416458-4	1-1/2 Straight Keyed	11.8	60	91.94	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ60A86A20-L 45VQ Series Vane Pump	416458-5	1-1/2 Straight Keyed	11.8	60	91.94	Opposite Outlet	CCW	2500	2200 RPM
45VQ60A86C20-L 45VQ Series Vane Pump	416458-7	1-1/2 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A86D20-L 45VQ Series Vane Pump	416458-8	1-1/2 Straight Keyed	11.8	60	91.94	90 deg CCW from Outlet	CCW	2500	2200 RPM
45VQ42A11B20 45VQ Series Vane Pump	420616-2	14 Tooth SAE D Splined	8.46	42	65.92	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ42A11C20 45VQ Series Vane Pump	420616-3	14 Tooth SAE D Splined	8.46	42	65.92	in-Line with Outlet	CW	2500	2200 RPM
45VQ42A11D20 45VQ Series Vane Pump	420616-4	14 Tooth SAE D Splined	8.46	42	65.92	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ42A11A20-L 45VQ Series Vane Pump	420616-5	14 Tooth SAE D Splined	8.46	42	65.92	Opposite Outlet	CCW	2500	2200 RPM
45VQ42A11C20-L 45VQ Series Vane Pump	420616-7	14 Tooth SAE D Splined	8.46	42	65.92	in-Line with Outlet	CCW	2500	2200 RPM
45VQ50A11B20 45VQ Series Vane Pump	420617-2	14 Tooth SAE D Splined	9.9	50	77.14	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ50A11C20 45VQ Series Vane Pump	420617-3	14 Tooth SAE D Splined	9.9	50	77.14	in-Line with Outlet	CW	2500	2200 RPM
45VQ50A11D20 45VQ Series Vane Pump	420617-4	14 Tooth SAE D Splined	9.9	50	77.14	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ50A11A20-L 45VQ Series Vane Pump	420617-5	14 Tooth SAE D Splined	9.9	50	77.14	Opposite Outlet	CCW	2500	2200 RPM
45VQ50A11B20-L 45VQ Series Vane Pump	420617-6	14 Tooth SAE D Splined	9.9	50	77.14	90 deg CW from Outlet	CCW	2500	2200 RPM
45VQ50A11C20-L 45VQ Series Vane Pump	420617-7	14 Tooth SAE D Splined	9.9	50	77.14	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A11B20 45VQ Series Vane Pump	420618-2	14 Tooth SAE D Splined	11.8	60	91.94	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ60A11C20 45VQ Series Vane Pump	420618-3	14 Tooth SAE D Splined	11.8	60	91.94	in-Line with Outlet	CW	2500	2200 RPM
45VQ60A11D20 45VQ Series Vane Pump	420618-4	14 Tooth SAE D Splined	11.8	60	91.94	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ60A11A20-L 45VQ Series Vane Pump	420618-5	14 Tooth SAE D Splined	11.8	60	91.94	Opposite Outlet	CCW	2500	2200 RPM
45VQ60A11B20-L 45VQ Series Vane Pump	420618-6	14 Tooth SAE D Splined	11.8	60	91.94	90 deg CW from Outlet	CCW	2500	2200 RPM
45VQ60A11C20-L 45VQ Series Vane Pump	420618-7	14 Tooth SAE D Splined	11.8	60	91.94	in-Line with Outlet	CCW	2500	2200 RPM
45VQ42A86B20 45VQ Series Vane Pump	421965-2	1-1/2 Straight Keyed	8.46	42	65.92	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ42A86C20 45VQ Series Vane Pump	421965-3	1-1/2 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CW	2500	2200 RPM
45VQ42A86D20 45VQ Series Vane Pump	421965-4	1-1/2 Straight Keyed	8.46	42	65.92	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ42A86A20-L 45VQ Series Vane Pump	421965-5	1-1/2 Straight Keyed	8.46	42	65.92	Opposite Outlet	CCW	2500	2200 RPM
45VQ42A86C20-L 45VQ Series Vane Pump	421965-7	1-1/2 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CCW	2500	2200 RPM
45VQ50A1B20 45VQ Series Vane Pump	421966-2	1-1/4 Straight Keyed	9.9	50	77.14	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ50A1C20 45VQ Series Vane Pump	421966-3	1-1/4 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CW	2500	2200 RPM
45VQ50A1D20 45VQ Series Vane Pump	421966-4	1-1/4 Straight Keyed	9.9	50	77.14	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ50A1A20-L 45VQ Series Vane Pump	421966-5	1-1/4 Straight Keyed	9.9	50	77.14	Opposite Outlet	CCW	2500	2200 RPM
45VQ50A1C20-L 45VQ Series Vane Pump	421966-7	1-1/4 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A1B20 45VQ Series Vane Pump	421967-2	1-1/4 Straight Keyed	11.8	60	91.94	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ60A1C20 45VQ Series Vane Pump	421967-3	1-1/4 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CW	2500	2200 RPM
45VQ60A1D20 45VQ Series Vane Pump	421967-4	1-1/4 Straight Keyed	11.8	60	91.94	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ60A1A20-L 45VQ Series Vane Pump	421967-5	1-1/4 Straight Keyed	11.8	60	91.94	Opposite Outlet	CCW	2500	2200 RPM
45VQ60A1C20-L 45VQ Series Vane Pump	421967-7	1-1/4 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CCW	2500	2200 RPM
45VQ42A1B20 45VQ Series Vane Pump	432647-2	1-1/4 Straight Keyed	8.46	42	65.92	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ42A1C20 45VQ Series Vane Pump	432647-3	1-1/4 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CW	2500	2200 RPM
45VQ42A1D20 45VQ Series Vane Pump	432647-4	1-1/4 Straight Keyed	8.46	42	65.92	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ42A1A20-L 45VQ Series Vane Pump	432647-5	1-1/4 Straight Keyed	8.46	42	65.92	Opposite Outlet	CCW	2500	2200 RPM
45VQ42A1C20-L 45VQ Series Vane Pump	432647-7	1-1/4 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CCW	2500	2200 RPM
45VQ50A86B20 45VQ Series Vane Pump	433252-2	1-1/2 Straight Keyed	9.9	50	77.14	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ50A86C20 45VQ Series Vane Pump	433252-3	1-1/2 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CW	2500	2200 RPM
45VQ50A86D20 45VQ Series Vane Pump	433252-4	1-1/2 Straight Keyed	9.9	50	77.14	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ50A86A20-L 45VQ Series Vane Pump	433252-5	1-1/2 Straight Keyed	9.9	50	77.14	Opposite Outlet	CCW	2500	2200 RPM
45VQ50A86C20-L 45VQ Series Vane Pump	433252-7	1-1/2 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CCW	2500	2200 RPM
45VQ57A1B20 45VQ Series Vane Pump	629213-2	1-1/4 Straight Keyed	10.97	57	85.48	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ57A1C20 45VQ Series Vane Pump	629213-3	1-1/4 Straight Keyed	10.97	57	85.48	in-Line with Outlet	CW	2500	2200 RPM
45VQ57A1D20 45VQ Series Vane Pump	629213-4	1-1/4 Straight Keyed	10.97	57	85.48	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ57A1A20-L 45VQ Series Vane Pump	629213-5	1-1/4 Straight Keyed	10.97	57	85.48	Opposite Outlet	CCW	2500	2200 RPM
45VQ57A1C20-L 45VQ Series Vane Pump	629213-7	1-1/4 Straight Keyed	10.97	57	85.48	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A86A20 45VQ Series Vane Pump	416458-1	1-1/2 Straight Keyed	11.8	60	91.94	Opposite Outlet	CW	2500	2200 RPM
45VQ42A11A20 45VQ Series Vane Pump	420616-1	14 Tooth SAE D Splined	8.46	42	65.92	Opposite Outlet	CW	2500	2200 RPM
45VQ50A11A20 45VQ Series Vane Pump	420617-1	14 Tooth SAE D Splined	9.9	50	77.14	Opposite Outlet	CW	2500	2200 RPM
45VQ60A11A20 45VQ Series Vane Pump	420618-1	14 Tooth SAE D Splined	11.8	60	91.94	Opposite Outlet	CW	2500	2200 RPM
45VQ42A86A20 45VQ Series Vane Pump	421965-1	1-1/2 Straight Keyed	8.46	42	65.92	Opposite Outlet	CW	2500	2200 RPM
45VQ50A1A20 45VQ Series Vane Pump	421966-1	1-1/4 Straight Keyed	9.9	50	77.14	Opposite Outlet	CW	2500	2200 RPM
45VQ60A1A20 45VQ Series Vane Pump	421967-1	1-1/4 Straight Keyed	11.8	60	91.94	Opposite Outlet	CW	2500	2200 RPM
45VQ42A1A20 45VQ Series Vane Pump	432647-1	1-1/4 Straight Keyed	8.46	42	65.92	Opposite Outlet	CW	2500	2200 RPM
45VQ50A86A20 45VQ Series Vane Pump	433252-1	1-1/2 Straight Keyed	9.9	50	77.14	Opposite Outlet	CW	2500	2200 RPM
45VQ57A1A20 45VQ Series Vane Pump	629213-1	1-1/4 Straight Keyed	10.97	57	85.48	Opposite Outlet	CW	2500	2200 RPM

Product Questions & Answers (2)

Question by: Phil B on Oct 22, 2025, 8:26 PM

got a pump on the bench marked 45VQ42A86C20-L. is this the same unit or am i lookin at something different

Answer by: Customer Support on Oct 24, 2025, 6:29 AM

Match-up is straightforward here. The model number for this pump is 45VQ42A86C20-L, and it is a 45VQ Series single vane pump with 42 ring size, 8.46 displacement, CCW rotation, and a 1-1/2 straight keyed shaft.

Question by: Sheila C on Jul 13, 2025, 7:53 PM

pump puts out 65 GPM at what speed, and is this thing rated for continuous duty at 2500 PSI or is that just a peak number?

Answer by: Customer Support on Jul 15, 2025, 9:35 AM

At 2200 RPM the rated flow is 65.92 GPM. The 2500 PSI figure is the maximum pressure rating for this pump. For continuous duty considerations, running at or near maximum pressure for extended periods will put more wear on any vane pump, so real-world duty cycles that stay below peak pressure will get more life out of it.
