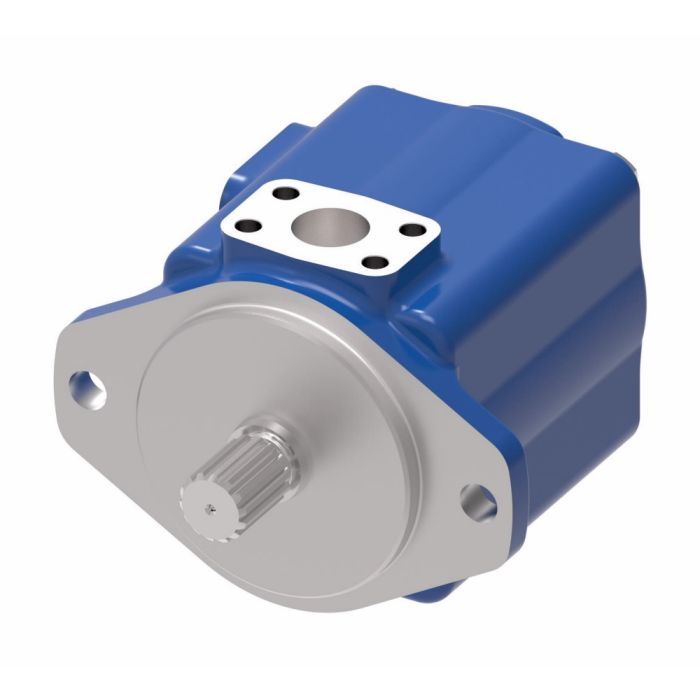

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

Description & Features

Engineered for high-pressure, high-speed hydraulic circuits, the 45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation is a single vane pump from Eaton Vickers rated to 2,500 PSI and 2,200 RPM. It delivers a rated flow of 65.92 GPM at a displacement of 8.46 cubic inches per revolution, making it well-suited for demanding industrial applications including metal cutting, plastic injection molding, dump trucks, and wheel loaders.

The pump features a 2-bolt SAE C mounting flange with SAE 4-bolt flange ports, 3-inch inlet and 1-1/2-inch outlet, and uses Buna-N seals. Clockwise shaft rotation and an in-line port configuration support straightforward integration into a range of mobile and industrial hydraulic systems. Consistent volumetric efficiency and extended service life are core design characteristics of the 45VQ series.

SKU: 432647-3

Supplier Part Number (MPN): 432647-3

Alternate Part Numbers: 45VQ42A1C20, C1EH37

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
8.46
Displacement
8.46
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
2500
Maximum Pressure
2500
Port Location
in-Line with Outlet
Rated Flow
65.92
Rated Flow
65.92
Ring Size
42
Ring Size
42
Rotation
CW
Seal Material
Buna-N
Series
45VQ
Shaft
1-1/4 Straight Keyed
Shaft
1-1/4 Straight Keyed
Special Features
None
Speed Rating
2200 RPM
Speed Rating
2200 RPM
Supplier Part Number
432647-3
Alternate Part Numbers
Alternate Part Number 45VQ42A1C20, Alternate Part Number C1EH37, Alternate Part Number MINO-00900X57106
Product Weight
75.00 lbs
