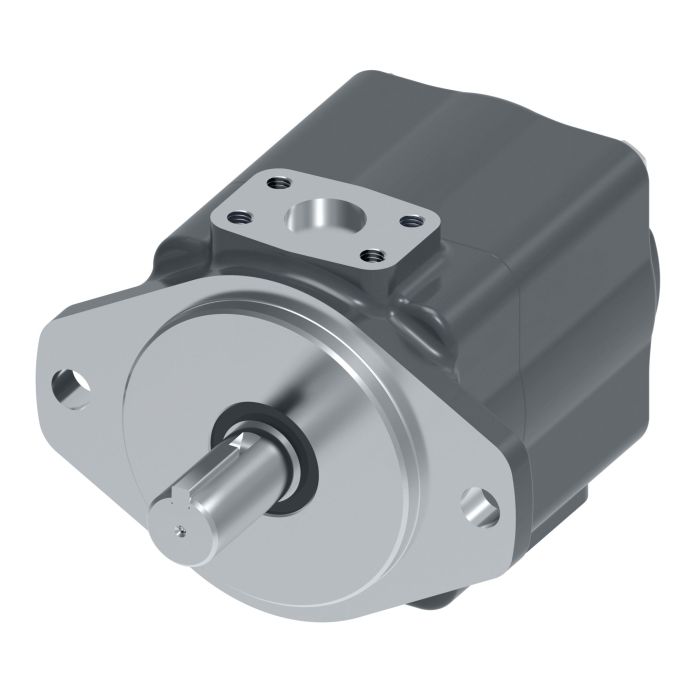

main product photo

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

Ask A Question

Description & Features

Designed for high-pressure, high-speed industrial service, the 45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation delivers a rated flow of 77.14 GPM at up to 2,500 PSI maximum pressure. The 50 ring size and 1-1/2" straight keyed shaft configuration support demanding duty cycles across a range of industrial equipment types.

Mounting follows a 2-bolt SAE C flange pattern, with SAE 4-bolt flange ports sized at 3" inlet and 1-1/2" outlet. Clockwise rotation and opposite-outlet port orientation suit common mobile and stationary hydraulic circuit layouts. Buna-N seals are standard, and the pump is rated to 2,200 RPM. Typical applications include metal cutting machinery, plastic injection molding equipment, dump trucks, and wheel loaders. Built under the Danfoss Power Solutions brand, this 45VQ series unit is engineered for consistent volumetric efficiency and extended service life in demanding environments.

SKU: 433252-1

Supplier Part Number (MPN): 433252-1

Alternate Part Numbers: 45VQ50A86A20

Specifications

Brand
Vickers by Danfoss
Cartridge Type
Industry-First Intra-Vane
Design Code
20
Dimensions
11.98 in L x 8.38 in W x 6.94 in H
Displacement io
9.90
Drive Shaft Type
Straight Keyed
Housing Material
Iron
Inlet Type
Flanged
Maximum Operating Pressure
2500 psi
Model
45VQ
Mounting Type
Flanged
Outlet Type
Flanged
Port Location
Opposite Outlet
Rotation Direction
Clockwise
Seal Material
Nitrile
Series
45VQ Series
Shaft Size
1-1/2 in Dia
Vane Type
Fixed Displacement

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ60A86B20 45VQ Series Vane Pump

416458-2

1-1/2 Straight Keyed

11.8

60

91.94

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ60A86C20 45VQ Series Vane Pump

416458-3

1-1/2 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ60A86D20 45VQ Series Vane Pump

416458-4

1-1/2 Straight Keyed

11.8

60

91.94

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ60A86A20-L 45VQ Series Vane Pump

416458-5

1-1/2 Straight Keyed

11.8

60

91.94

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ60A86C20-L 45VQ Series Vane Pump

416458-7

1-1/2 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

45VQ60A86D20-L 45VQ Series Vane Pump

416458-8

1-1/2 Straight Keyed

11.8

60

91.94

90 deg CCW from Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ42A11B20 45VQ Series Vane Pump

420616-2

14 Tooth SAE D Splined

8.46

42

65.92

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ42A11C20 45VQ Series Vane Pump

420616-3

14 Tooth SAE D Splined

8.46

42

65.92

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ42A11D20 45VQ Series Vane Pump

420616-4

14 Tooth SAE D Splined

8.46

42

65.92

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ42A11A20-L 45VQ Series Vane Pump

420616-5

14 Tooth SAE D Splined

8.46

42

65.92

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ42A11C20-L 45VQ Series Vane Pump

420616-7

14 Tooth SAE D Splined

8.46

42

65.92

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ50A11B20 45VQ Series Vane Pump

420617-2

14 Tooth SAE D Splined

9.9

50

77.14

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ50A11C20 45VQ Series Vane Pump

420617-3

14 Tooth SAE D Splined

9.9

50

77.14

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ50A11D20 45VQ Series Vane Pump

420617-4

14 Tooth SAE D Splined

9.9

50

77.14

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ50A11A20-L 45VQ Series Vane Pump

420617-5

14 Tooth SAE D Splined

9.9

50

77.14

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

45VQ50A11B20-L 45VQ Series Vane Pump

420617-6

14 Tooth SAE D Splined

9.9

50

77.14

90 deg CW from Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ50A11C20-L 45VQ Series Vane Pump

420617-7

14 Tooth SAE D Splined

9.9

50

77.14

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ60A11B20 45VQ Series Vane Pump

420618-2

14 Tooth SAE D Splined

11.8

60

91.94

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ60A11C20 45VQ Series Vane Pump

420618-3

14 Tooth SAE D Splined

11.8

60

91.94

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ60A11D20 45VQ Series Vane Pump

420618-4

14 Tooth SAE D Splined

11.8

60

91.94

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ60A11A20-L 45VQ Series Vane Pump

420618-5

14 Tooth SAE D Splined

11.8

60

91.94

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

45VQ60A11B20-L 45VQ Series Vane Pump

420618-6

14 Tooth SAE D Splined

11.8

60

91.94

90 deg CW from Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ60A11C20-L 45VQ Series Vane Pump

420618-7

14 Tooth SAE D Splined

11.8

60

91.94

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ42A86B20 45VQ Series Vane Pump

421965-2

1-1/2 Straight Keyed

8.46

42

65.92

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ42A86C20 45VQ Series Vane Pump

421965-3

1-1/2 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ42A86D20 45VQ Series Vane Pump

421965-4

1-1/2 Straight Keyed

8.46

42

65.92

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ42A86A20-L 45VQ Series Vane Pump

421965-5

1-1/2 Straight Keyed

8.46

42

65.92

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ42A86C20-L 45VQ Series Vane Pump

421965-7

1-1/2 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ50A1B20 45VQ Series Vane Pump

421966-2

1-1/4 Straight Keyed

9.9

50

77.14

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ50A1C20 45VQ Series Vane Pump

421966-3

1-1/4 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ50A1D20 45VQ Series Vane Pump

421966-4

1-1/4 Straight Keyed

9.9

50

77.14

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ50A1A20-L 45VQ Series Vane Pump

421966-5

1-1/4 Straight Keyed

9.9

50

77.14

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ50A1C20-L 45VQ Series Vane Pump

421966-7

1-1/4 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ60A1B20 45VQ Series Vane Pump

421967-2

1-1/4 Straight Keyed

11.8

60

91.94

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ60A1C20 45VQ Series Vane Pump

421967-3

1-1/4 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ60A1D20 45VQ Series Vane Pump

421967-4

1-1/4 Straight Keyed

11.8

60

91.94

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ60A1A20-L 45VQ Series Vane Pump

421967-5

1-1/4 Straight Keyed

11.8

60

91.94

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ60A1C20-L 45VQ Series Vane Pump

421967-7

1-1/4 Straight Keyed

11.8

60

91.94

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ42A1B20 45VQ Series Vane Pump

432647-2

1-1/4 Straight Keyed

8.46

42

65.92

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ42A1C20 45VQ Series Vane Pump

432647-3

1-1/4 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ42A1D20 45VQ Series Vane Pump

432647-4

1-1/4 Straight Keyed

8.46

42

65.92

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ42A1A20-L 45VQ Series Vane Pump

432647-5

1-1/4 Straight Keyed

8.46

42

65.92

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ42A1C20-L 45VQ Series Vane Pump

432647-7

1-1/4 Straight Keyed

8.46

42

65.92

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ50A86B20 45VQ Series Vane Pump

433252-2

1-1/2 Straight Keyed

9.9

50

77.14

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ50A86C20 45VQ Series Vane Pump

433252-3

1-1/2 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ50A86D20 45VQ Series Vane Pump

433252-4

1-1/2 Straight Keyed

9.9

50

77.14

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ50A86A20-L 45VQ Series Vane Pump

433252-5

1-1/2 Straight Keyed

9.9

50

77.14

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ50A86C20-L 45VQ Series Vane Pump

433252-7

1-1/2 Straight Keyed

9.9

50

77.14

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

45VQ57A1B20 45VQ Series Vane Pump

629213-2

1-1/4 Straight Keyed

10.97

57

85.48

90 deg CW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

45VQ57A1C20 45VQ Series Vane Pump

629213-3

1-1/4 Straight Keyed

10.97

57

85.48

in-Line with Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

45VQ57A1D20 45VQ Series Vane Pump

629213-4

1-1/4 Straight Keyed

10.97

57

85.48

90 deg CCW from Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

45VQ57A1A20-L 45VQ Series Vane Pump

629213-5

1-1/4 Straight Keyed

10.97

57

85.48

Opposite Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

45VQ57A1C20-L 45VQ Series Vane Pump

629213-7

1-1/4 Straight Keyed

10.97

57

85.48

in-Line with Outlet

CCW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ60A86A20 45VQ Series Vane Pump

416458-1

1-1/2 Straight Keyed

11.8

60

91.94

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CW Rotation

45VQ42A11A20 45VQ Series Vane Pump

420616-1

14 Tooth SAE D Splined

8.46

42

65.92

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CW Rotation

45VQ50A11A20 45VQ Series Vane Pump

420617-1

14 Tooth SAE D Splined

9.9

50

77.14

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 14 Tooth SAE D Splined Shaft, Outlet Opposite Outlet, CW Rotation

45VQ60A11A20 45VQ Series Vane Pump

420618-1

14 Tooth SAE D Splined

11.8

60

91.94

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ42A86A20 45VQ Series Vane Pump

421965-1

1-1/2 Straight Keyed

8.46

42

65.92

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 50 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ50A1A20 45VQ Series Vane Pump

421966-1

1-1/4 Straight Keyed

9.9

50

77.14

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 60 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ60A1A20 45VQ Series Vane Pump

421967-1

1-1/4 Straight Keyed

11.8

60

91.94

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 42 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ42A1A20 45VQ Series Vane Pump

432647-1

1-1/4 Straight Keyed

8.46

42

65.92

Opposite Outlet

CW

2500

2200 RPM

45VQ Series Vane Pump, 57 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

45VQ57A1A20 45VQ Series Vane Pump

629213-1

1-1/4 Straight Keyed

10.97

57

85.48

Opposite Outlet

CW

2500

2200 RPM

Product Questions & Answers (3)

Question by: Brett T on Apr 29, 2025, 5:31 PM
Running a wheel loader that eats pumps for breakfast -- what kind of pressure and flow are we actually working with on this unit?
Answer by: Customer Support on Apr 30, 2025, 8:35 PM
At full rated output, you're looking at 77.14 GPM with a maximum pressure ceiling of 2,500 PSI. The speed rating tops out at 2,200 RPM, so it's built to hold up under the kind of sustained load wheel loaders put on hydraulic systems. The 50 ring size and 45VQ series construction are specifically aimed at high-pressure, high-speed duty, so it's not a light-duty pump dressed up in heavy specs.
Question by: Brent W on Mar 20, 2026, 5:12 PM
What kind of machinery is this pump typically found in?
Answer by: Customer Support on Mar 22, 2026, 3:47 PM
This 45VQ series vane pump is often used in metal cutting machinery, plastic injection molding equipment, dump trucks, and wheel loaders.
Question by: Troy K on Feb 8, 2026, 8:31 PM
trying to swap out an older unit, does this match part number 45VQ50A86A20?
Answer by: Customer Support on Feb 10, 2026, 6:43 AM
For a direct part number match, this pump is identified as model 45VQ50A86A20 and supplier part number 433252-1, with 45VQ50A86A20 also shown as an alternate part number. It is a 45VQ series single vane pump with a 50 ring size and a 1-1/2 inch straight keyed shaft.

Tell us what you need and we'll get back to you.

Fields marked * are required.
