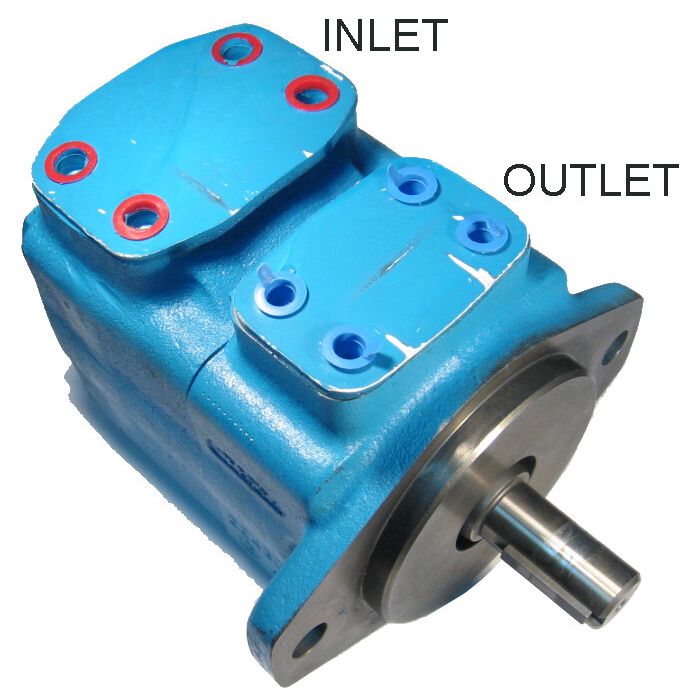

45VQ Series Vane Pump, 50 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

Description & Features

The Eaton Vickers 45VQ Series Vane Pump is engineered for efficient hydraulic performance, featuring a robust 50 ring size and a 1-1/2 straight keyed shaft. Its clockwise rotation and 90-degree counterclockwise port location from the outlet ensure optimal fluid dynamics in industrial applications. Designed for durability, this pump supports a maximum pressure of 2500 PSI and operates with a rated flow of 77.14 gallons per minute, making it suitable for heavy-duty tasks.

With a speed rating of 2200 RPM, the 45VQ Series Vane Pump offers reliable performance in demanding environments. The 2-bolt SAE C mounting flange and SAE 4-bolt flange ports (3" inlet, 1-1/2" outlet) facilitate seamless integration into existing systems. This model, 45VQ50A86D20, is a testament to Eaton Vickers' commitment to providing high-quality hydraulic solutions.

SKU: 433252-4

Supplier Part Number (MPN): 433252-4

Specifications

Displacement 9.90	Displacement 9.9	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Maximum Pressure 2500	Maximum Pressure 2500	Port Location 90 deg CCW from Outlet	Rated Flow 77.14	Rated Flow 77.14	Ring Size 50	Ring Size 50	Rotation CW	Shaft 1-1/2 Straight Keyed	Shaft 1-1/2 Straight Keyed	Speed Rating 2200 RPM	Speed Rating 2200 RPM	Supplier Part Number 433252-4	Alternate Part Numbers Alternate Part Number MINO-00900X57170	Product Weight 75.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
45VQ60A86B20 45VQ Series Vane Pump	416458-2	1-1/2 Straight Keyed	11.8	60	91.94	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ60A86C20 45VQ Series Vane Pump	416458-3	1-1/2 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CW	2500	2200 RPM
45VQ60A86D20 45VQ Series Vane Pump	416458-4	1-1/2 Straight Keyed	11.8	60	91.94	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ60A86A20-L 45VQ Series Vane Pump	416458-5	1-1/2 Straight Keyed	11.8	60	91.94	Opposite Outlet	CCW	2500	2200 RPM
45VQ60A86C20-L 45VQ Series Vane Pump	416458-7	1-1/2 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A86D20-L 45VQ Series Vane Pump	416458-8	1-1/2 Straight Keyed	11.8	60	91.94	90 deg CCW from Outlet	CCW	2500	2200 RPM
45VQ42A11B20 45VQ Series Vane Pump	420616-2	14 Tooth SAE D Splined	8.46	42	65.92	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ42A11C20 45VQ Series Vane Pump	420616-3	14 Tooth SAE D Splined	8.46	42	65.92	in-Line with Outlet	CW	2500	2200 RPM
45VQ42A11D20 45VQ Series Vane Pump	420616-4	14 Tooth SAE D Splined	8.46	42	65.92	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ42A11A20-L 45VQ Series Vane Pump	420616-5	14 Tooth SAE D Splined	8.46	42	65.92	Opposite Outlet	CCW	2500	2200 RPM
45VQ42A11C20-L 45VQ Series Vane Pump	420616-7	14 Tooth SAE D Splined	8.46	42	65.92	in-Line with Outlet	CCW	2500	2200 RPM
45VQ50A11B20 45VQ Series Vane Pump	420617-2	14 Tooth SAE D Splined	9.9	50	77.14	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ50A11C20 45VQ Series Vane Pump	420617-3	14 Tooth SAE D Splined	9.9	50	77.14	in-Line with Outlet	CW	2500	2200 RPM
45VQ50A11D20 45VQ Series Vane Pump	420617-4	14 Tooth SAE D Splined	9.9	50	77.14	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ50A11A20-L 45VQ Series Vane Pump	420617-5	14 Tooth SAE D Splined	9.9	50	77.14	Opposite Outlet	CCW	2500	2200 RPM
45VQ50A11B20-L 45VQ Series Vane Pump	420617-6	14 Tooth SAE D Splined	9.9	50	77.14	90 deg CW from Outlet	CCW	2500	2200 RPM
45VQ50A11C20-L 45VQ Series Vane Pump	420617-7	14 Tooth SAE D Splined	9.9	50	77.14	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A11B20 45VQ Series Vane Pump	420618-2	14 Tooth SAE D Splined	11.8	60	91.94	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ60A11C20 45VQ Series Vane Pump	420618-3	14 Tooth SAE D Splined	11.8	60	91.94	in-Line with Outlet	CW	2500	2200 RPM
45VQ60A11D20 45VQ Series Vane Pump	420618-4	14 Tooth SAE D Splined	11.8	60	91.94	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ60A11A20-L 45VQ Series Vane Pump	420618-5	14 Tooth SAE D Splined	11.8	60	91.94	Opposite Outlet	CCW	2500	2200 RPM
45VQ60A11B20-L 45VQ Series Vane Pump	420618-6	14 Tooth SAE D Splined	11.8	60	91.94	90 deg CW from Outlet	CCW	2500	2200 RPM
45VQ60A11C20-L 45VQ Series Vane Pump	420618-7	14 Tooth SAE D Splined	11.8	60	91.94	in-Line with Outlet	CCW	2500	2200 RPM
45VQ42A86B20 45VQ Series Vane Pump	421965-2	1-1/2 Straight Keyed	8.46	42	65.92	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ42A86C20 45VQ Series Vane Pump	421965-3	1-1/2 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CW	2500	2200 RPM
45VQ42A86D20 45VQ Series Vane Pump	421965-4	1-1/2 Straight Keyed	8.46	42	65.92	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ42A86A20-L 45VQ Series Vane Pump	421965-5	1-1/2 Straight Keyed	8.46	42	65.92	Opposite Outlet	CCW	2500	2200 RPM
45VQ42A86C20-L 45VQ Series Vane Pump	421965-7	1-1/2 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CCW	2500	2200 RPM
45VQ50A1B20 45VQ Series Vane Pump	421966-2	1-1/4 Straight Keyed	9.9	50	77.14	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ50A1C20 45VQ Series Vane Pump	421966-3	1-1/4 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CW	2500	2200 RPM
45VQ50A1D20 45VQ Series Vane Pump	421966-4	1-1/4 Straight Keyed	9.9	50	77.14	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ50A1A20-L 45VQ Series Vane Pump	421966-5	1-1/4 Straight Keyed	9.9	50	77.14	Opposite Outlet	CCW	2500	2200 RPM
45VQ50A1C20-L 45VQ Series Vane Pump	421966-7	1-1/4 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A1B20 45VQ Series Vane Pump	421967-2	1-1/4 Straight Keyed	11.8	60	91.94	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ60A1C20 45VQ Series Vane Pump	421967-3	1-1/4 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CW	2500	2200 RPM
45VQ60A1D20 45VQ Series Vane Pump	421967-4	1-1/4 Straight Keyed	11.8	60	91.94	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ60A1A20-L 45VQ Series Vane Pump	421967-5	1-1/4 Straight Keyed	11.8	60	91.94	Opposite Outlet	CCW	2500	2200 RPM
45VQ60A1C20-L 45VQ Series Vane Pump	421967-7	1-1/4 Straight Keyed	11.8	60	91.94	in-Line with Outlet	CCW	2500	2200 RPM
45VQ42A1B20 45VQ Series Vane Pump	432647-2	1-1/4 Straight Keyed	8.46	42	65.92	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ42A1C20 45VQ Series Vane Pump	432647-3	1-1/4 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CW	2500	2200 RPM
45VQ42A1D20 45VQ Series Vane Pump	432647-4	1-1/4 Straight Keyed	8.46	42	65.92	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ42A1A20-L 45VQ Series Vane Pump	432647-5	1-1/4 Straight Keyed	8.46	42	65.92	Opposite Outlet	CCW	2500	2200 RPM
45VQ42A1C20-L 45VQ Series Vane Pump	432647-7	1-1/4 Straight Keyed	8.46	42	65.92	in-Line with Outlet	CCW	2500	2200 RPM
45VQ50A86B20 45VQ Series Vane Pump	433252-2	1-1/2 Straight Keyed	9.9	50	77.14	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ50A86C20 45VQ Series Vane Pump	433252-3	1-1/2 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CW	2500	2200 RPM
45VQ50A86D20 45VQ Series Vane Pump	433252-4	1-1/2 Straight Keyed	9.9	50	77.14	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ50A86A20-L 45VQ Series Vane Pump	433252-5	1-1/2 Straight Keyed	9.9	50	77.14	Opposite Outlet	CCW	2500	2200 RPM
45VQ50A86C20-L 45VQ Series Vane Pump	433252-7	1-1/2 Straight Keyed	9.9	50	77.14	in-Line with Outlet	CCW	2500	2200 RPM
45VQ57A1B20 45VQ Series Vane Pump	629213-2	1-1/4 Straight Keyed	10.97	57	85.48	90 deg CW from Outlet	CW	2500	2200 RPM
45VQ57A1C20 45VQ Series Vane Pump	629213-3	1-1/4 Straight Keyed	10.97	57	85.48	in-Line with Outlet	CW	2500	2200 RPM
45VQ57A1D20 45VQ Series Vane Pump	629213-4	1-1/4 Straight Keyed	10.97	57	85.48	90 deg CCW from Outlet	CW	2500	2200 RPM
45VQ57A1A20-L 45VQ Series Vane Pump	629213-5	1-1/4 Straight Keyed	10.97	57	85.48	Opposite Outlet	CCW	2500	2200 RPM
45VQ57A1C20-L 45VQ Series Vane Pump	629213-7	1-1/4 Straight Keyed	10.97	57	85.48	in-Line with Outlet	CCW	2500	2200 RPM
45VQ60A86A20 45VQ Series Vane Pump	416458-1	1-1/2 Straight Keyed	11.8	60	91.94	Opposite Outlet	CW	2500	2200 RPM
45VQ42A11A20 45VQ Series Vane Pump	420616-1	14 Tooth SAE D Splined	8.46	42	65.92	Opposite Outlet	CW	2500	2200 RPM
45VQ50A11A20 45VQ Series Vane Pump	420617-1	14 Tooth SAE D Splined	9.9	50	77.14	Opposite Outlet	CW	2500	2200 RPM
45VQ60A11A20 45VQ Series Vane Pump	420618-1	14 Tooth SAE D Splined	11.8	60	91.94	Opposite Outlet	CW	2500	2200 RPM
45VQ42A86A20 45VQ Series Vane Pump	421965-1	1-1/2 Straight Keyed	8.46	42	65.92	Opposite Outlet	CW	2500	2200 RPM
45VQ50A1A20 45VQ Series Vane Pump	421966-1	1-1/4 Straight Keyed	9.9	50	77.14	Opposite Outlet	CW	2500	2200 RPM
45VQ60A1A20 45VQ Series Vane Pump	421967-1	1-1/4 Straight Keyed	11.8	60	91.94	Opposite Outlet	CW	2500	2200 RPM
45VQ42A1A20 45VQ Series Vane Pump	432647-1	1-1/4 Straight Keyed	8.46	42	65.92	Opposite Outlet	CW	2500	2200 RPM
45VQ50A86A20 45VQ Series Vane Pump	433252-1	1-1/2 Straight Keyed	9.9	50	77.14	Opposite Outlet	CW	2500	2200 RPM
45VQ57A1A20 45VQ Series Vane Pump	629213-1	1-1/4 Straight Keyed	10.97	57	85.48	Opposite Outlet	CW	2500	2200 RPM

Product Questions & Answers (1)

Question by: Travis M on Dec 11, 2025, 3:54 PM

pump's rated at 2500 psi max pressure -- is that a continuous rating or more of a peak number?

Answer by: Customer Support on Dec 12, 2025, 9:48 PM

2500 PSI is the maximum pressure rating for this pump. For continuous operation, most vane pump applications run below that ceiling to preserve seal and cartridge life, but the published spec is 2500 PSI.
